Toyota DYNA — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-37180-B0i202108-202509

MD.CHARCOAL,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11004i202108-202509

81240DLAMP ASSY, ROOM, NO.2

main81240-37160×2i202108-202509

81241LENS, ROOM LAMP, NO.1

main81241-95013i202108-202509

81241ALENS, ROOM LAMP, NO.2

main81241-E0040×2i202108-202509

81290LAMP ASSY, ROOM, NO.3

main81240-37170-B0i202305-202509

LT.GRAY,TRIM1#

81290BBULB, ROOM LAMP, NO.3

main90981-11004i202305-202509

8701MIRROR

→ Go to FIG 87-01

9015260015

main90152-60015

9015950087

main90159-50087

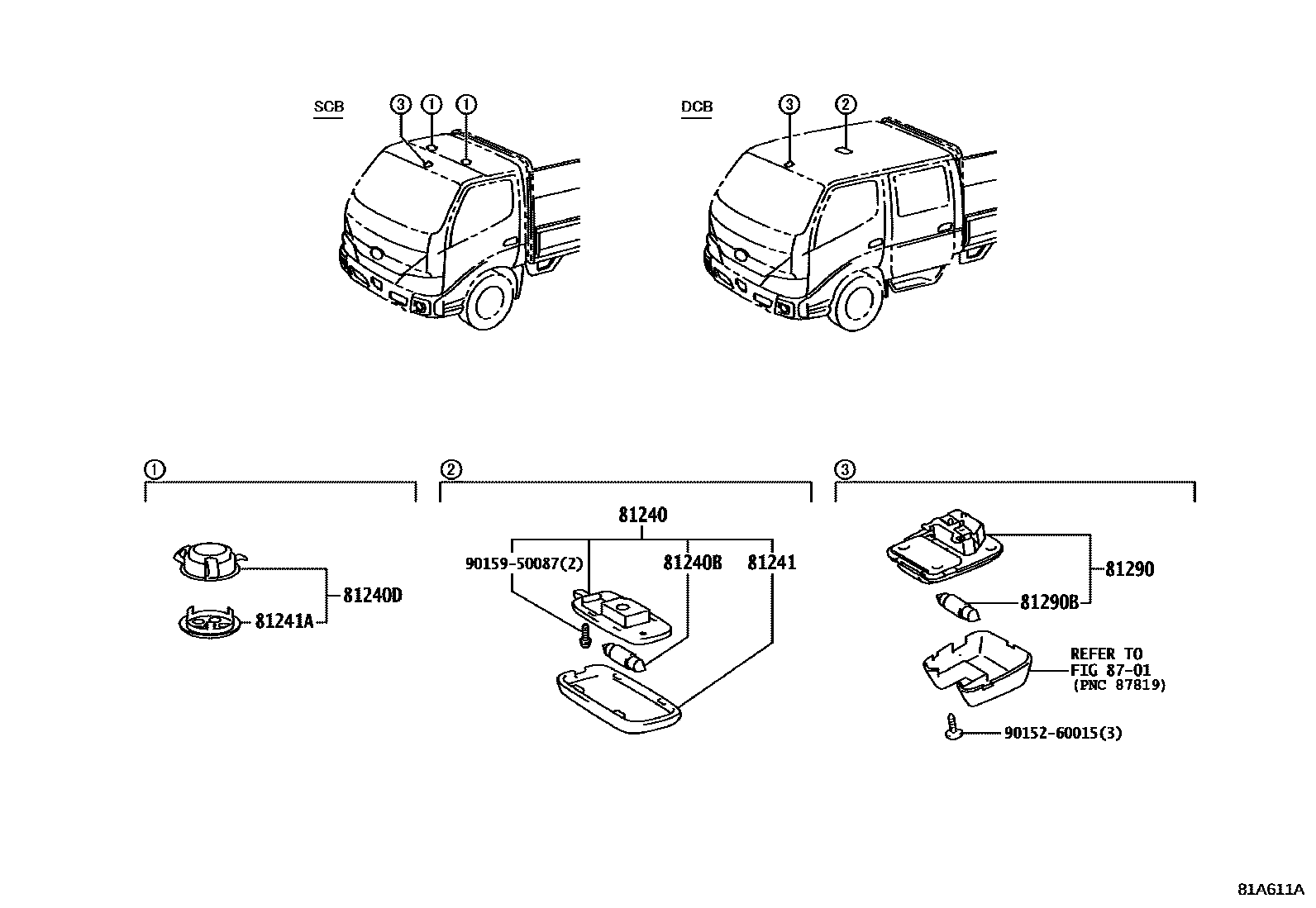

10 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota DYNA

This section contains 10 genuine Toyota parts for the INTERIOR LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, LENS, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.2.
