Toyota DYNA — INSIDE TRIM BOARD
62211GARNISH, FRONT PILLAR, RH
main62210-37010-B0iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T; XZU605..IV5202103
main62210-37020-B0iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)202103
GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
main62220-37010-B0iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T; XZU605..IV5202103
main62220-37020-B0iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)202103
GRAY,TRIM1#
62217GCLIP, FRONT PILLAR GARNISH
main62217-13010×2iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)202103
main90467-10188×2iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T; XZU605..IV5202103
62313DTRIM, FRONT DOOR OPENING, RH
main62313-37080-B0iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T; XZU605..IV5202103
main62313-89122-B1iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)202103
GRAY,TRIM1#
62314DTRIM, FRONT DOOR OPENING, LH
main62314-37040-B0iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T; XZU605..IV5202103
main62314-89106-B1iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)202103
GRAY,TRIM1#
62333ATRIM, REAR DOOR OPENING, RH
GRAY,TRIM1#
62334ATRIM, REAR DOOR OPENING, LH
GRAY,TRIM1#
62335ACOVER, REAR DOOR OPENING TRIM
MD.CHARCOAL,TRIM1#
62401BFASTENER, HOOK
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
MD.CHARCOAL,TRIM1#
62472AGARNISH, ROOF SIDE, INNER LH
GRAY,TRIM1#
62513APANEL, QUARTER TRIM, LOWER RH
GRAY,TRIM1#
62514APANEL, QUARTER TRIM, LOWER LH
GRAY,TRIM1#
62570FGARNISH ASSY, ROOF SIDE, INNER LOWER RH
GRAY,TRIM1#
62580AGARNISH ASSY, ROOF SIDE, INNER LOWER LH
GRAY,TRIM1#
62630QCLIP (FOR QUARTER TRIM)
63391ETRIM, ROOF HEADLINING, FRONT
67913BPLATE, FRONT DOOR SCUFF, RH
GRAY,TRIM1#
67914BPLATE, FRONT DOOR SCUFF, LH
GRAY,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
GRAY,TRIM1#
67918EPLATE, REAR DOOR SCUFF, LH
GRAY,TRIM1#
7152SEAT BELT
9018905163
main90189-05163
9046710162
main90467-10162
9356055020
main93560-55020

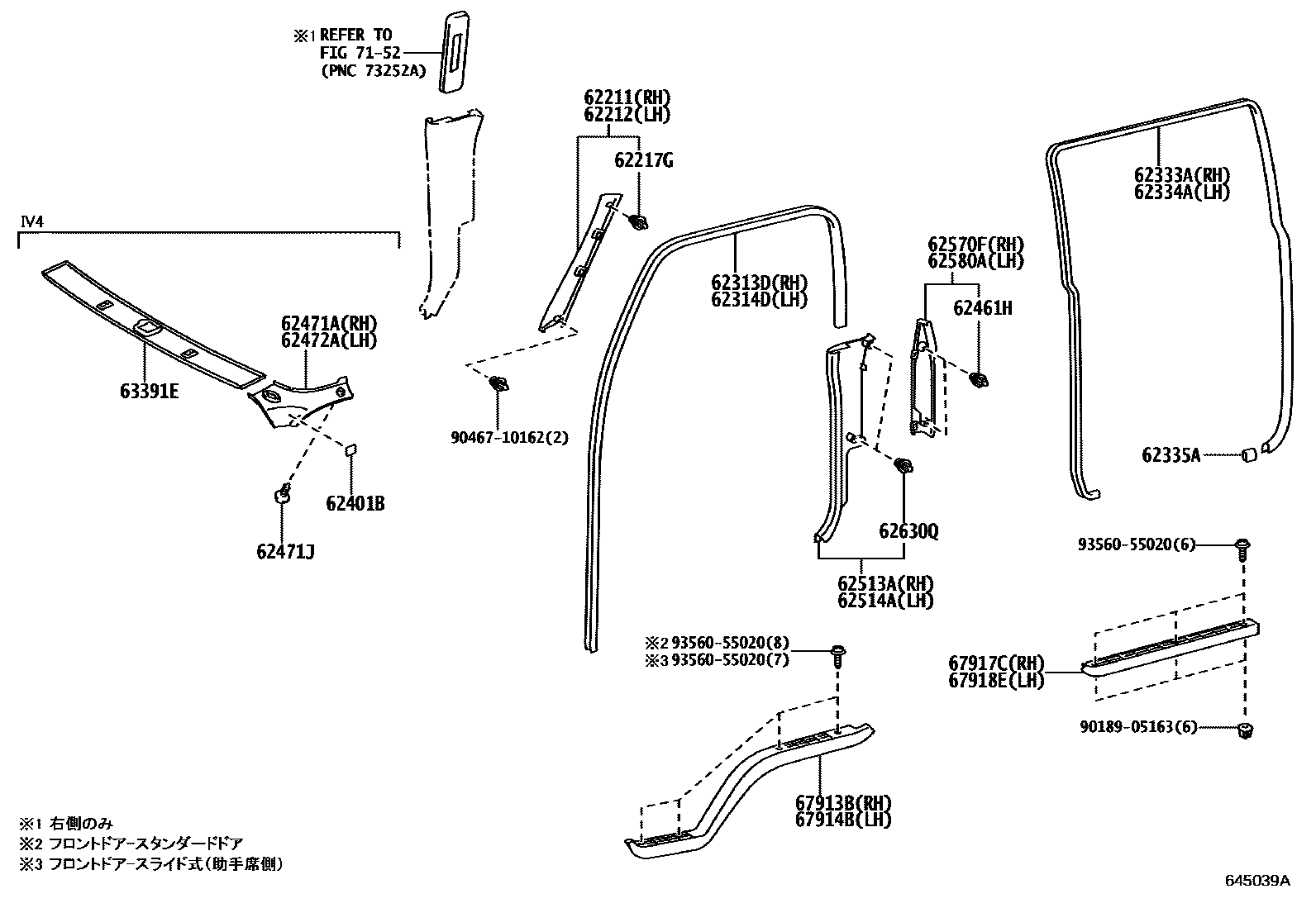

27 parts on this diagram · 3 diagrams in section
INSIDE TRIM BOARD for Toyota DYNA
This section contains 34 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota DYNA. Key components include: GARNISH, FRONT PILLAR, RH, CLIP(FOR FRONT PILLAR GARNISH), GARNISH, FRONT PILLAR, LH, CLIP, FRONT PILLAR GARNISH, TRIM, FRONT DOOR OPENING, RH.
