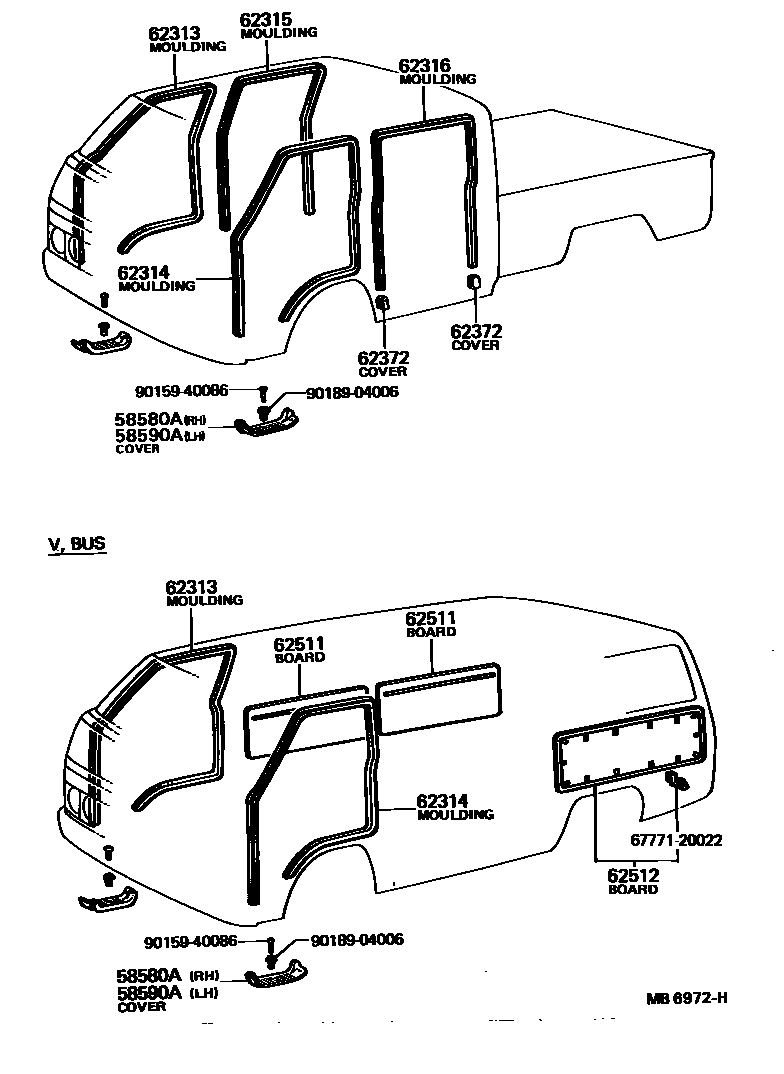

Toyota DYNA — INSIDE TRIM BOARD
58580ACOVER, FRONT FLOOR SIDE, RH
W/FLOOR MAT,T=2.0
W/FLOOR MAT,T=1.2
W/FLOOR MAT,T=2.0
W/FLOOR MAT,T=2.0
58590ACOVER, FRONT FLOOR SIDE, LH
W/FLOOR MAT,T=2.0
W/FLOOR MAT,T=1.2
W/FLOOR MAT,T=2.0
W/FLOOR MAT,T=2.0
62313MOULDING, FRONT DOOR OPENING TRIM, RH
62314MOULDING, FRONT DOOR OPENING TRIM, LH
62315MOULDING, REAR DOOR OPENING TRIM, RH
62316MOULDING, REAR DOOR OPENING TRIM, LH
62372COVER, QUARTER WINDOW INSIDE TRIM
62511BOARD, QUARTER INSIDE TRIM, RH
FR
FR
FR,BROWN,BROWN
RR
RR
RR,BROWN,BROWN
62512BOARD, QUARTER INSIDE TRIM, LH
BROWN,BROWN
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
9015940086
main90159-40086
9018904006
main90189-04006
12 parts on this diagram · 1 diagram in section
INSIDE TRIM BOARD for Toyota DYNA
This section contains 12 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota DYNA. Key components include: COVER, FRONT FLOOR SIDE, RH, COVER, FRONT FLOOR SIDE, LH, MOULDING, FRONT DOOR OPENING TRIM, RH, MOULDING, FRONT DOOR OPENING TRIM, LH, MOULDING, REAR DOOR OPENING TRIM, RH.
