Toyota DYNA — INSIDE TRIM BOARD

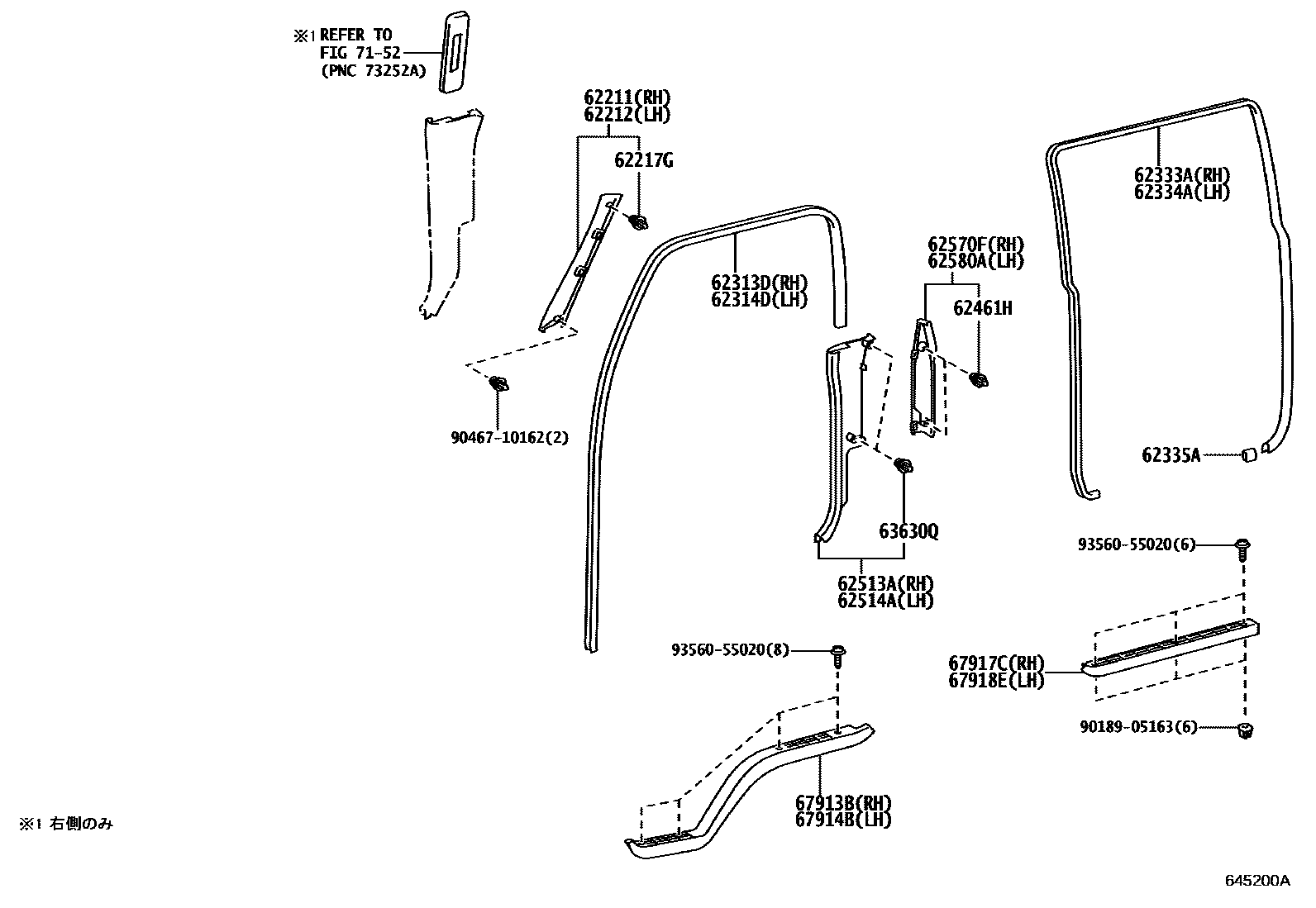

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62210-37010-B0i202108-202509
GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
main62220-37010-B0i202108-202509
GRAY,TRIM1#
62217GCLIP, FRONT PILLAR GARNISH
main90467-10188×2i202108-202509
62313DTRIM, FRONT DOOR OPENING, RH
main62313-37050-B1i202108-202509
main62313-37080-B0i202108-202509
GRAY,TRIM1#
62314DTRIM, FRONT DOOR OPENING, LH
main62314-37010-B1i202108-202509
main62314-37040-B0i202108-202509
GRAY,TRIM1#
62333ATRIM, REAR DOOR OPENING, RH
main62333-25040-B1i202108-202509
GRAY,TRIM1#
62334ATRIM, REAR DOOR OPENING, LH
main62333-25040-B1i202108-202509
GRAY,TRIM1#
62335ACOVER, REAR DOOR OPENING TRIM
main62335-37010-B0×2i202108-202509
MD.CHARCOAL,TRIM1#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-10161×4i202108-202509
62513APANEL, QUARTER TRIM, LOWER RH
main62530-25020-B0i202406
GRAY,TRIM1#
main62530-37020-B0i202108-202406
GRAY,TRIM1#
62514APANEL, QUARTER TRIM, LOWER LH
main62540-25020-B0i202406-202509
GRAY,TRIM1#
main62540-37020-B0i202108-202406
GRAY,TRIM1#
62570FGARNISH ASSY, ROOF SIDE, INNER LOWER RH
main62570-37020-B1i202108-202509
GRAY,TRIM1#
62580AGARNISH ASSY, ROOF SIDE, INNER LOWER LH
main62580-37020-B1i202108-202509
GRAY,TRIM1#
63630QCLIP
main90467-10161×4i202108-202509
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-37010-B1i202108-202509
GRAY,TRIM1#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-37010-B1i202108-202509
GRAY,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-37021-B1i202108-202509
GRAY,TRIM1#
67918EPLATE, REAR DOOR SCUFF, LH
main67918-37011-B1i202108-202509
GRAY,TRIM1#
7152SEAT BELT
→ Go to FIG 71-52
9018905163
main90189-05163
9046710162
main90467-10162
9356055020
main93560-55020

22 parts on this diagram · 3 diagrams in section

INSIDE TRIM BOARD for Toyota DYNA

This section contains 28 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota DYNA. Key components include: GARNISH, FRONT PILLAR, RH, GARNISH, FRONT PILLAR, LH, CLIP, FRONT PILLAR GARNISH, TRIM, FRONT DOOR OPENING, RH, TRIM, FRONT DOOR OPENING, LH.
