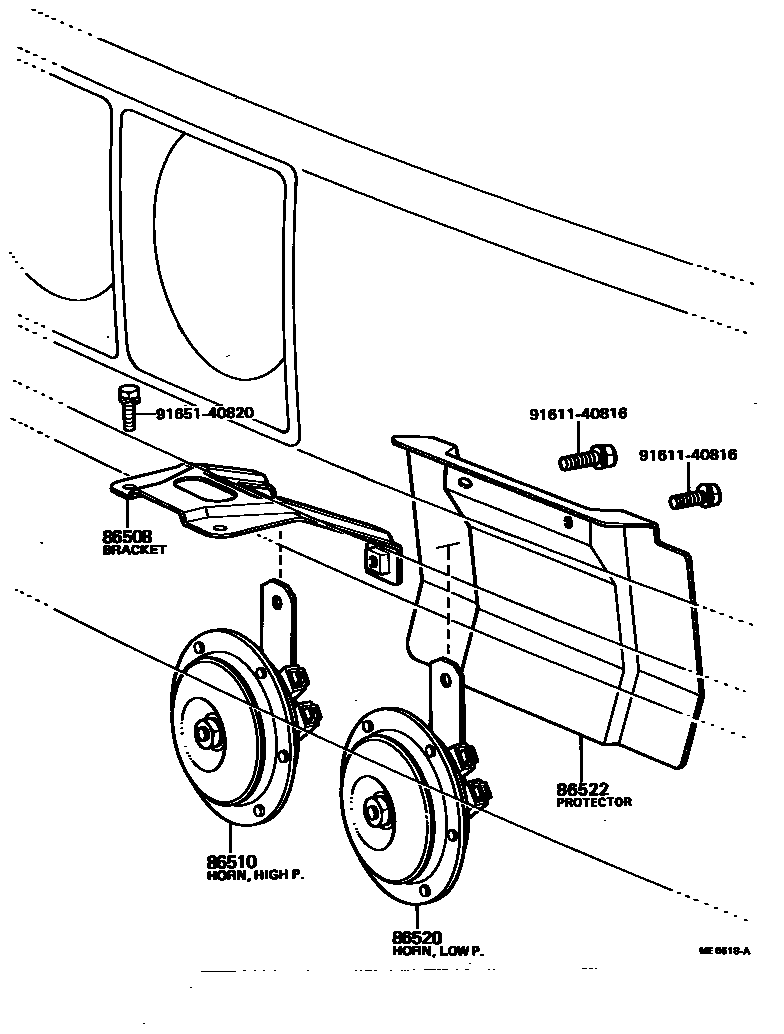

Toyota DYNA — HORN

86508BRACKET SUB-ASSY, HORN

main74706-95406i197708-198408

86510HORN ASSY, HIGH PITCHED

main86510-36100i197708-198008

24V

main86510-95401i198008-198106

24V

main86510-95403i198106-198204

24V

main86510-95405i198204-198408

24V

86520HORN ASSY, LOW PITCHED

main86520-36100i197708-198106

24V

main86520-95401i198106-198204

24V

main86520-95403i198204-198408

24V

86522PROTECTOR, HORN

main86522-95400i198008-198408

9161140816

main91611-40816

9165140820

main91651-40820

6 parts on this diagram · 1 diagram in section

HORN for Toyota DYNA

This section contains 6 genuine Toyota parts for the HORN system of the Toyota DYNA. Key components include: BRACKET SUB-ASSY, HORN, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, PROTECTOR, HORN.
