Toyota DYNA — HEATING & AIR CONDITIONING - COMPRESSOR

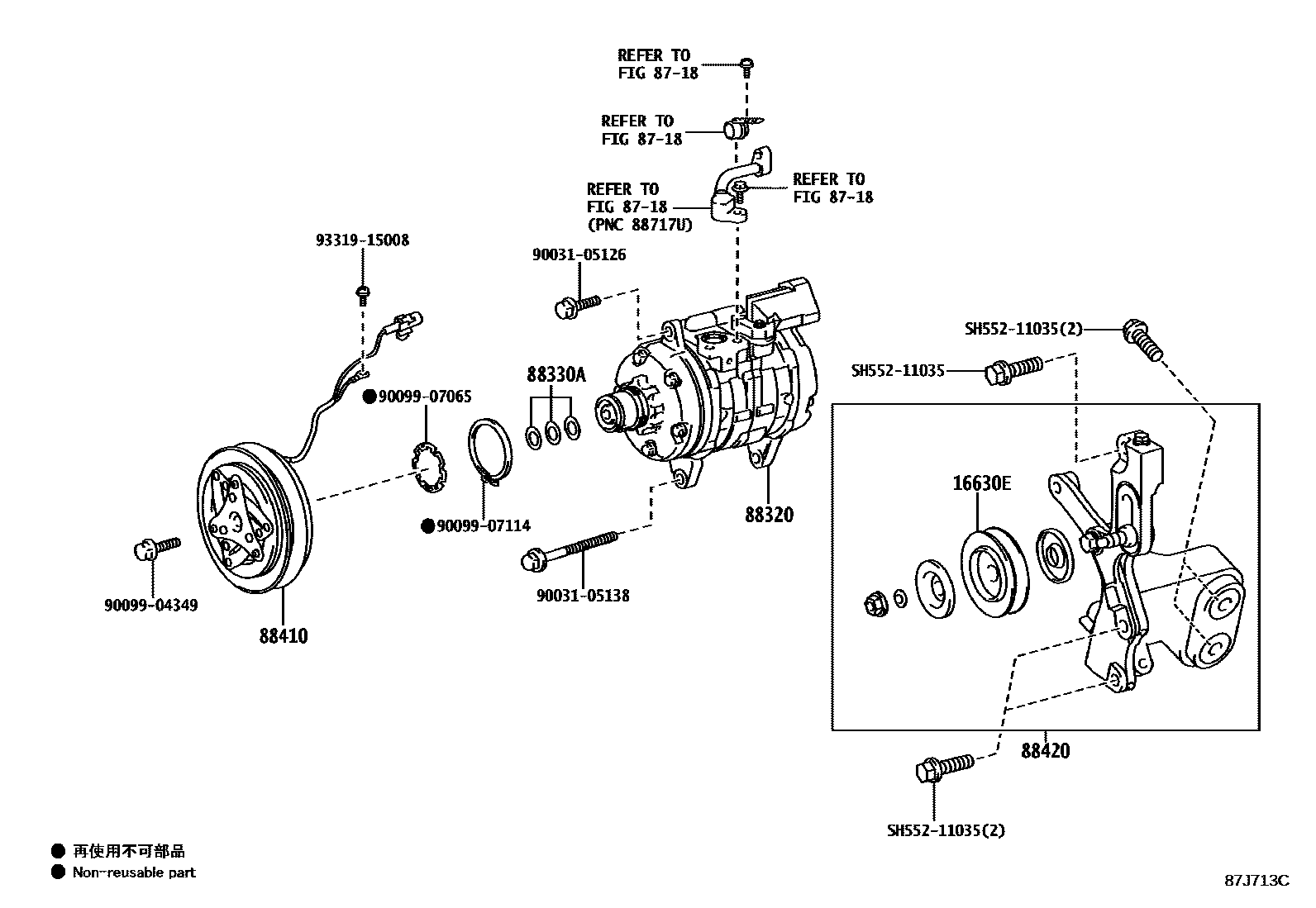

Parts diagram

16630EPULLEY ASSY, IDLER

main16630-78240i202103

main16630-78260i202103

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

88320COMPRESSOR ASSY, COOLER

main88320-37110i202103

main88320-37120i202103

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i202103

88410CLUTCH ASSY, MAGNET

main88410-17100i202103

main88410-37141i202103

88420PULLEY ASSY, IDLE, W/BRACKET

main88420-37320i202103

main88420-37330i202103

9003105126

main90031-05126

9003105138

main90031-05138

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9331915008

main93319-15008

SH55211035

mainSH552-11035

13 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota DYNA

This section contains 28 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota DYNA. Key components include: PULLEY, CRANKSHAFT, PULLEY SUB-ASSY, IDLER, PULLEY ASSY, IDLER, HEATING & AIR CONDITIONING - COOLER PIPING, COMPRESSOR MOUNTING SET.
