Toyota DYNA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-25310i202108-202509

81116CBRACKET, HEADLAMP, RH

81135UNIT ASSY, HEADLAMP, RH

main81140-25310i202108-202509

81144CCOVER, HEADLAMP SOCKET

81150HEADLAMP ASSY, LH

main81150-25310i202108-202509

81156ABRACKET, HEADLAMP, LH

81175UNIT ASSY, HEADLAMP, LH

main81070-25310i202108-202509

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15028×2i202108-202509

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81125-37640×2i202108-202509

8158AJLED, DAYTIME RUNNING LAMP

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i202108-202509

81615DSOCKET, CLEARANCE LAMP

main90075-60020×2i202108-202509

85661MOTOR, HEADLAMP LEVELING, RH

main85661-37020i202108-202509

85662MOTOR, HEADLAMP LEVELING, LH

main85661-37020i202108-202509

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i202108-202509

8197337010

main81973-37010

9007502419

main90075-02419

9015960008

main90159-60008

9015960411

main90159-60411

9018906018

main90189-06018

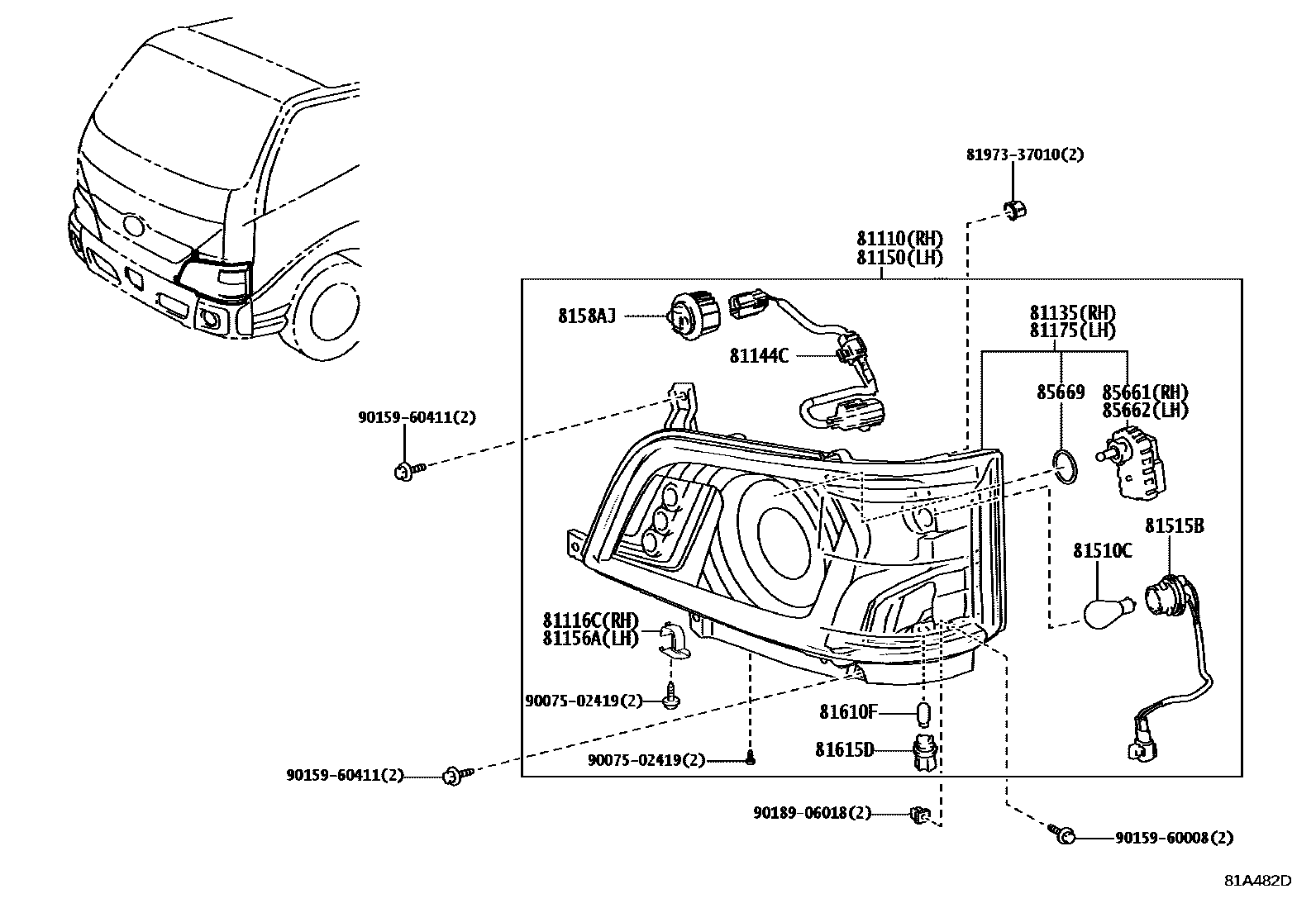

20 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota DYNA

This section contains 20 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: HEADLAMP ASSY, RH, BRACKET, HEADLAMP, RH, UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET, HEADLAMP ASSY, LH.
