Toyota DYNA — FRONT STEERING GEAR & LINK

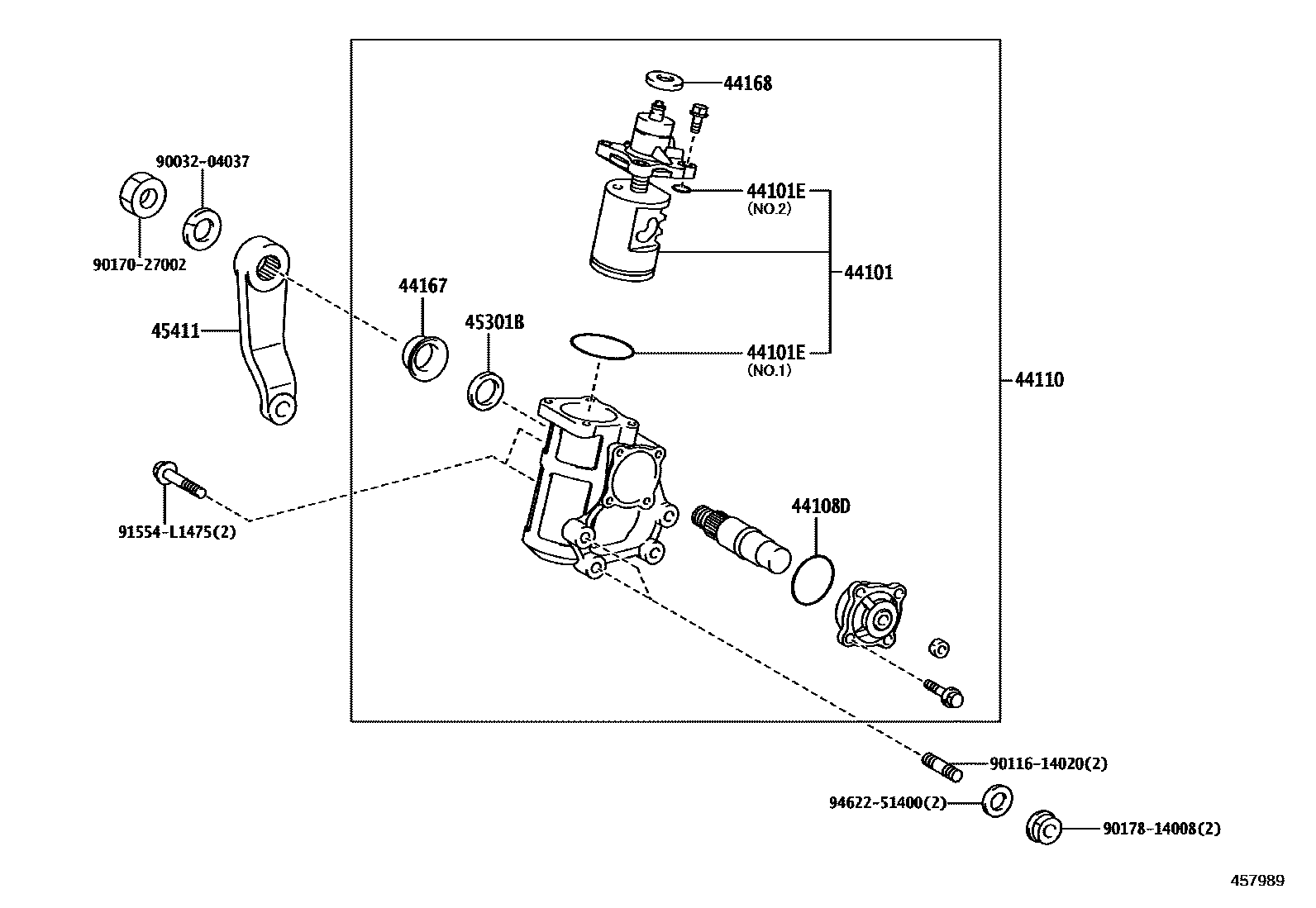

Parts diagram

44101WORM SUB-ASSY, STEERING

main44101-37031i202103

44101ERING, O(FOR STEERING WORM)

main44999-37020i202103

main44999-37040i202103

44108DRING, O(FOR SECTOR COVER)

main44999-37050i202103

44110GEAR ASSY, POWER STEERING

main44110-37271i202103

44167COVER, SECTOR SHAFT DUST

main45222-37050i202103

44168COVER, WORM SHAFT DUST

main45222-37040i202103

45301BSEAL, OIL(FOR SECTOR SHAFT)

main45333-37010i202103

45411ARM, PITMAN

main45411-37261i202103

main45411-37271i202103

9003204037

main90032-04037

9011614020

main90116-14020

9017027002

main90170-27002

9017814008

main90178-14008

91554L1475

main91554-L1475

9462251400

main94622-51400

14 parts on this diagram · 4 diagrams in section

FRONT STEERING GEAR & LINK for Toyota DYNA

This section contains 52 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota DYNA. Key components include: WORM SUB-ASSY, STEERING, RING, O(FOR STEERING WORM), RING, O(FOR SECTOR COVER), GEAR ASSY, POWER STEERING, COVER, SECTOR SHAFT DUST.
