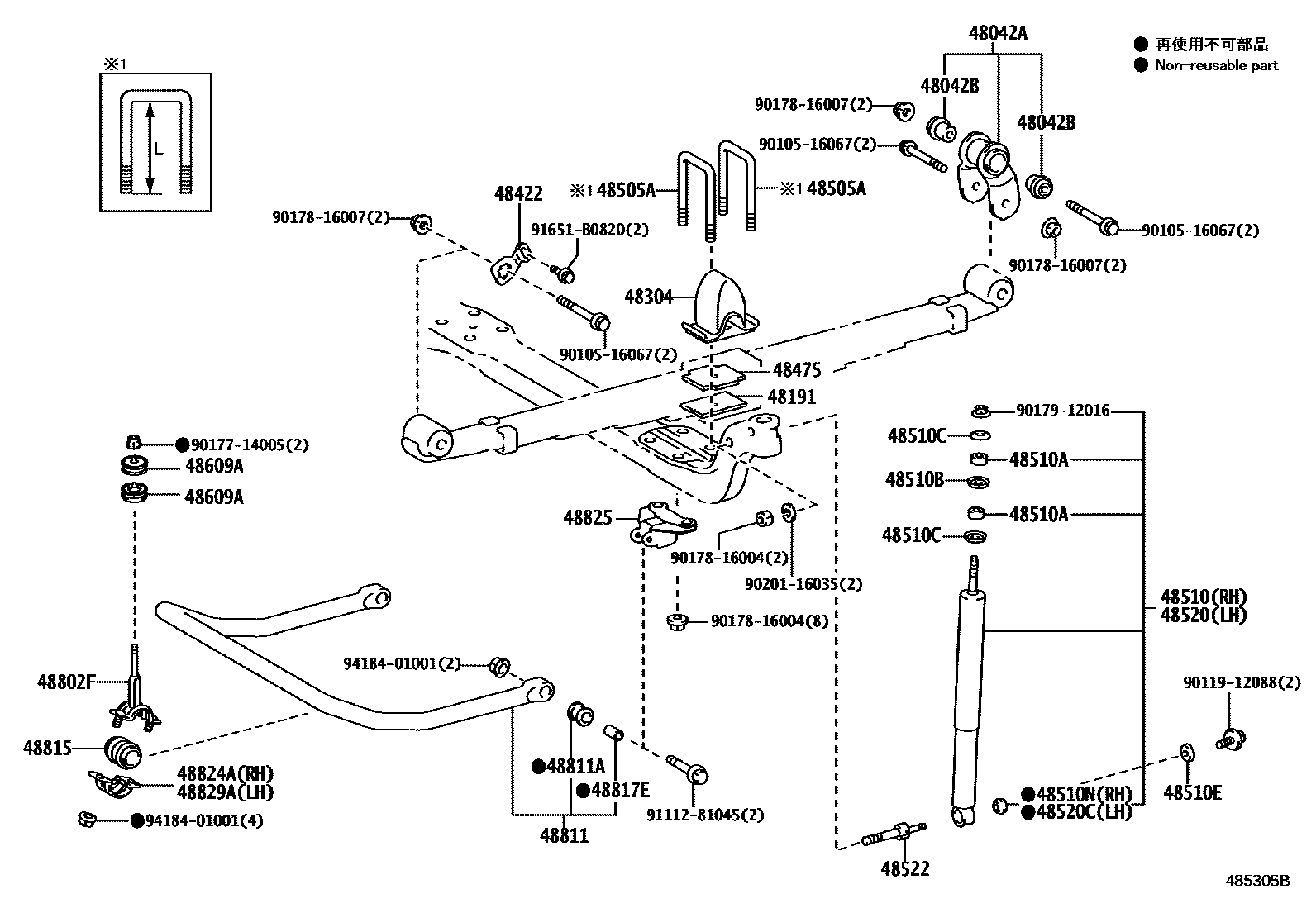

Toyota DYNA — FRONT SPRING & SHOCK ABSORBER

0001 1��(��������) 0002 1��(��������) 0003 1 0004 1 0005 12-LEAF 0006 12-LEAF 0007 12-LEAF(�������) 0008 12-LEAF 0009 12-LEAF 0010 12-LEAF(�������) 0011 12-LEAF 0012 12-LEAF(�������) 0013 12-LEAF 0014 12-LEAF(�������) 0015 12-LEAF 0016 12-LEAF(�������) 0017 12-LEAF 0018 13-LEAF

48042ASHACKLE SUB-ASSY, FRONT SPRING, NO.2

main48042-37020×2iXZC600,630,XZU600,602,630,640,642,650,652202103

48042BBUSH, FRONT SPRING NO.2 SHACKLE

main90389-16026×4iXZC600,630,XZU600,602,630,640,642,650,652202103

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-37060×2iXZC600,630,XZU600,630,640,650..20T,30T202103

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-37040×2iXZU600..DM5..6FC;XZU600..DM5..6F..20T;XZU600,640,650..DM3,DM6,T3,T4;XZC600,630,XZU602,630,642,652..20T,35T,40T202103

main48304-37050×2iXZU600,630..(DM5,DM7)..6F..30T202103

48422SUPPORT, FRONT SPRING PIN

main48422-37010×2iXZC600,630,XZU600,602,630,640,642,650,652202103

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iXZC600,630,XZU600,602,630,640,642,650,652202103

48505ABOLT, U(FOR FRONT SPRING)

main90117-16065iXZU600..IV7;XZU600..20T..IV6202103

main90117-16066×3iXZC600,630,XZU600,630..(DM5,DM7)..IV3202103

main90117-16080×3iXZU650..20T202103

main90117-16081×4iXZU600,602,640,642,650,652..35T,40T202103

main90117-16082×3iXZU600..IV7;XZU600..20T..IV6202103

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80768iXZC675,XZU675,685,695202103

main48510-80839iXZC605,645,655,XZU605,645,655202103

main48511-80120iXZC600,630,XZU600,630,650..(DM5,DM7,T3,T4)..20T202103

main48511-80121iXZU640,650..30T;XZU600..(DM6,T3)..(20T,30T)202103

main48511-80177iXZU600..DM3;XZU600..DM5..30T202103

main48511-80178iXZU630..30T;XZU600,602,640,642,650,652..35T,40T202103

48510ACUSHION, FRONT SHOCK ABSORBER

main48507-37010×2iXZC605,645,655,XZU605,645,655202103

main90948-01059×4iXZC675,XZU675,685,695202103

main90948-01071×4iXZC600,630,XZU600,602,630,640,642,650,652202103

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02054×4iXZC600,630,XZU600,602,630,640,642,650,652202103

main90948-02077×4iXZC675,XZU675,685,695202103

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90560-12076×4iXZC675,XZU675,685,695202103

main90948-02009×4iXZC600,630,XZU600,602,630,640,642,650,652202103

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03011×2iXZC600,630,XZU600,602,630,640,642,650,652202103

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90385-19011iXZC600,630,XZU600,602,630,640,642,650,652202103

main90389-14055iXZC675,XZU675,685,695202103

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80768iXZC675,XZU675,685,695202103

main48510-80839iXZC605,645,655,XZU605,645,655202103

main48511-80120iXZC600,630,XZU600,630,650..(DM5,DM7,T3,T4)..20T202103

main48511-80121iXZU640,650..30T;XZU600..(DM6,T3)..(20T,30T)202103

main48511-80177iXZU600..DM3;XZU600..DM5..30T202103

main48511-80178iXZU630..30T;XZU600,602,640,642,650,652..35T,40T202103

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90385-19011iXZC600,630,XZU600,602,630,640,642,650,652202103

main90389-14055iXZC675,XZU675,685,695202103

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-37030×2iXZC600,630,XZU600,602,630,640,642,650,652202103

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-37020iXZC605,645,655,XZU605,645,655202103

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-37020×4iXZU600,640,650,652..SCB..(DM3,DM6,T3,T4);XZC605,645,655,XZU602,605,642,645,655..IV3,IV5,IV6202103

48802FLINK SUB-ASSY, FRONT STABILIZER

main48802-37081×2iXZC605,645,655,XZU605,645,655..IV3,IV5,IV6202103

main48802-37091×2iXZU600..SCB..(DM6,T3);XZU602,640,642,650,652..SCB..(30T,35T,40T)202103

main48802-37111×2iXZU600,650..(DM3,T3,T4)..20T202103

48811BAR, STABILIZER, FRONT

main48804-37050iXZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)202103

main48811-37100iXZC605,645,655,XZU605,645,655..IV3,IV5,IV6202103

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-13009×2iXZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)202103

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-37080×2iXZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)202103

main48815-37110×2iXZC605,645,655,XZU605,645,655..IV3,IV5,IV6202103

48817ESPACER(FOR STABILIZER BAR)

main90560-10044×2iXZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)202103

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-37061iXZU600,640,650,652..SCB..(DM3,DM6,T3,T4);XZC605,645,655,XZU602,605,642,645,655..IV3,IV5,IV6202103

48825BRACKET, STABILIZER, NO.2

main48825-37060×2iXZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)202103

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-37061iXZU600,640,650,652..SCB..(DM3,DM6,T3,T4);XZC605,645,655,XZU602,605,642,645,655..IV3,IV5,IV6202103

9010516067

main90105-16067

9011912088

main90119-12088

9017714005

main90177-14005

9017816004

main90178-16004

9017816007

main90178-16007

9017912016

main90179-12016

9020116035

main90201-16035

9111281045

main91112-81045

91651B0820

main91651-B0820

9418401001

main94184-01001
