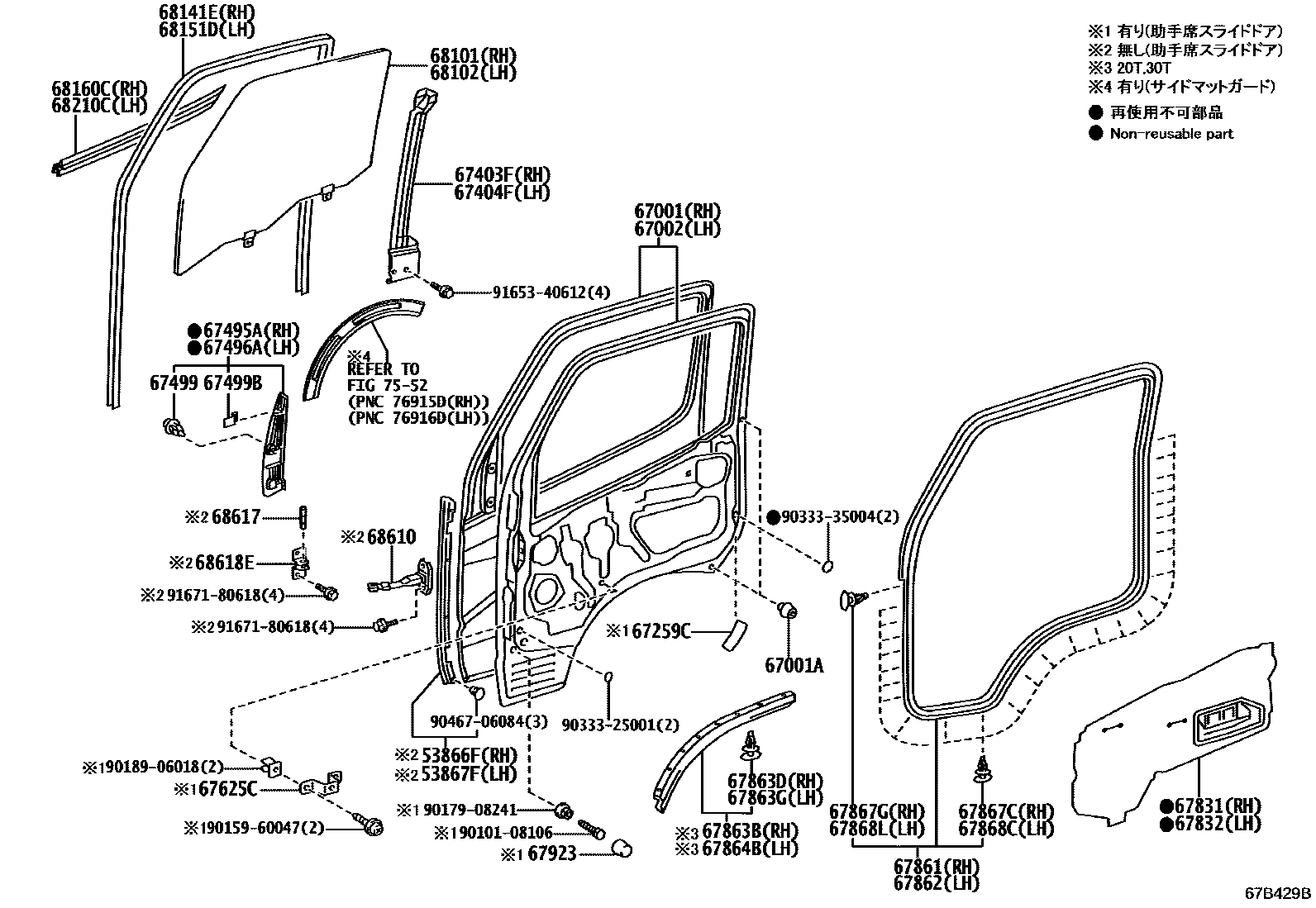

Toyota DYNA — FRONT DOOR PANEL & GLASS
53866FSEAL, FRONT FENDER TO COWL SIDE, RH
53867FSEAL, FR FENDER TO COWL SIDE, LH
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-37384iXZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV5); XZU652..IV3;XZU650..(35T,40T)..(IV3,IV6)202103
main67001-37610supersedes 67001-37620iXZC655,XZU650,655,695..(20T,30T)..CBU;XZC60#,630,645,675,XZU600,605,630,640,645,675,685..(20T,30T)..(CBU,IV3,IV4,IV6,IV7); XZC655,XZU650,655,695..(20T,30T)..IV3202103
main67001-37630iXZC655,XZU650,655,695..SCB..(20T,30T)..CBU;XZC60#,630,645,675,XZU600,605,630,640,645,675,685..SCB..(CBU,IV3,IV7); XZC655,XZU650,655,695..SCB..(20T,30T)..IV3202103
main67001-37640iXZC655,XZU650,655,695..SCB..(20T,30T)..CBU; XZC655,XZU650,655,695..SCB..(20T,30T)..IV3202103
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-37372supersedes 67002-37383iXZC655,XZU650,655,695..(20T,30T)..CBU;XZC60#,630,645,675,XZU600,605,630,640,645,675,685..(20T,30T)..(CBU,IV3,IV4,IV6,IV7); XZC655,XZU650,655,695..(20T,30T)..IV3202103-202106
main67002-37373iXZC655,XZU650,655,695..(20T,30T)..CBU;XZC60#,630,645,675,XZU600,605,630,640,645,675,685..(20T,30T)..(CBU,IV3,IV4,IV6,IV7); XZC655,XZU650,655,695..(20T,30T)..IV3202107
main67002-37413iXZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV5); XZU652..IV3;XZU650..(35T,40T)..(IV3,IV6)202103-202106
main67002-37414iXZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV5); XZU652..IV3;XZU650..(35T,40T)..(IV3,IV6)202107
main67002-37382iXZC655,XZU650,655,695..(20T,30T)..CBU; XZC655,XZU650,655,695..(20T,30T)..IV3202103-202106
67259CREFLECTOR, FRONT SLIDE DOOR
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499BRETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2
67625CBRACKET, DOOR TRIM, NO.1
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-37021iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T; XZU605..IV5202103
main67861-89112iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)202103
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-89111iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)202103
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-37011iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7)202103
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
main67867-12150×7iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7); XZU605..IV5202103
67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
main67867-12150×8iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7); XZU605..IV5202103
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67864-37011supersedes 67864-37021iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7); XZU605..IV5202103
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67923CUSHION, FRONT DOOR STIFFENER, NO.1
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610CHECK ASSY, FRONT DOOR
main68610-37030×2supersedes 68610-37040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7; XZU605..IV5202103
main68610-37040×2iXZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6); XZU605..IV5202103
68617PIN, FRONT DOOR CHECK
68618EBRACKET, FRONT DOOR CHECK ARM
7552MOULDING
9010108106
main90101-08106
9015960047
main90159-60047
9017908241
main90179-08241
9018906018
main90189-06018
9033325001
main90333-25001
9033335004
main90333-35004
9046706084
main90467-06084
9165340612
main91653-40612
9167180618
main91671-80618
45 parts on this diagram · 3 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota DYNA
This section contains 66 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota DYNA. Key components include: SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FR FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH.
