Toyota DYNA — FRONT DOOR PANEL & GLASS

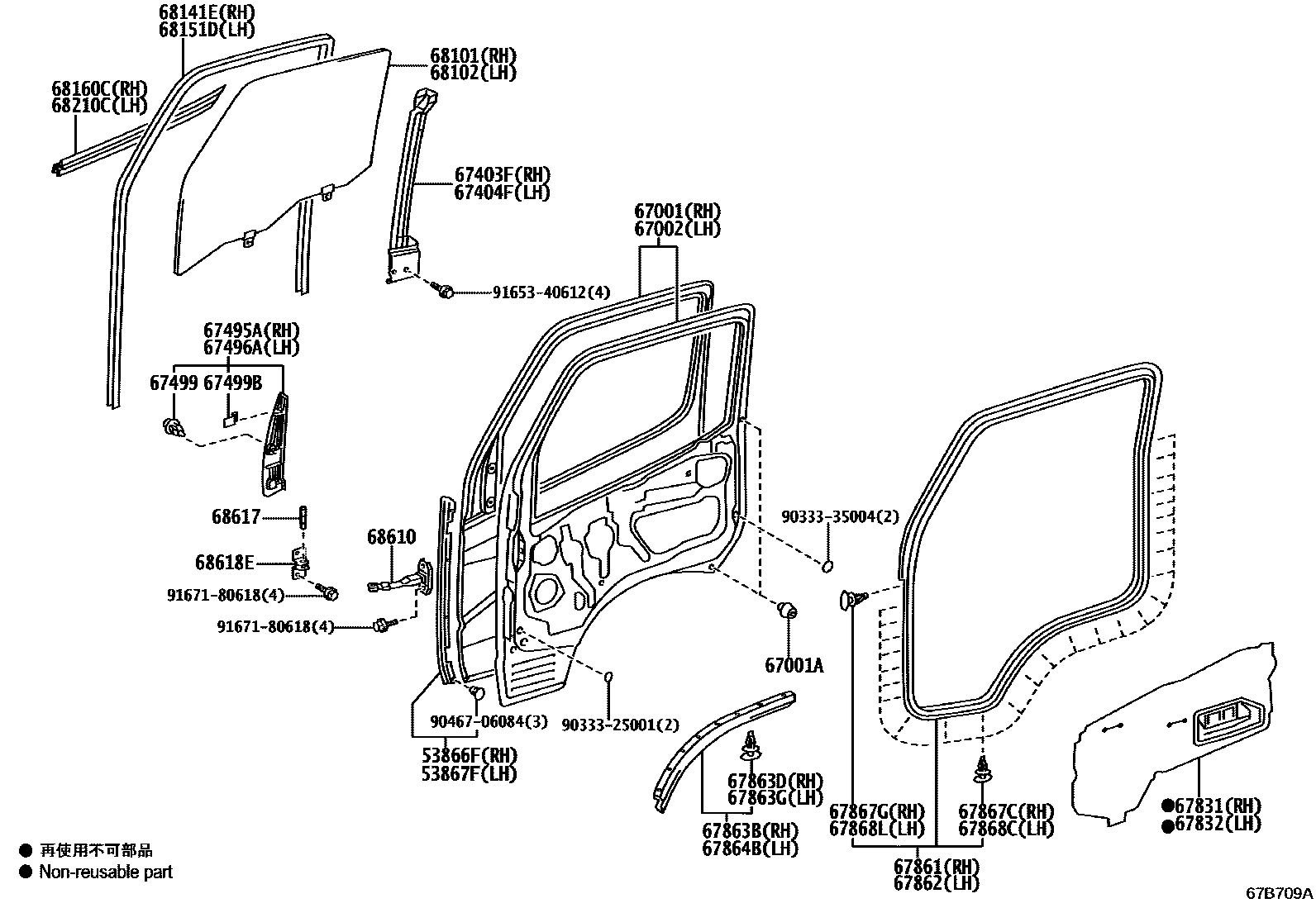

Parts diagram
53866FSEAL, FRONT FENDER TO COWL SIDE, RH
main53866-37042i202108-202509
53867FSEAL, FR FENDER TO COWL SIDE, LH
main53867-37032i202108-202509
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-25081supersedes 67001-25091i202108-202509
67001ACUSHION, FRONT DOOR PANEL
main90541-09031×4i202108-202509
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-25112i202108-202509
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
main67403-37021i202108-202509
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67404-37021i202108-202509
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
main67495-37010i202108-202509
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
main67496-37010i202108-202509
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-12050×4i202108-202509
67499BRETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2
main67499-37010×2i202108-202509
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-37020i202108
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67832-37060i202108
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-37021i202108-202509
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-37021i202108-202509
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-37011i202108
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
main67867-12150×8i202108-202509
67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
main67867-12150×8i202108-202509
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67864-37011i202108-202509
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-12150×27i202108-202509
67867GRETAINER, DOOR WEATHERSTRIP, RH
main67867-89103i202108-202509
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
main67867-12150×27i202108-202509
67868LRETAINER, DOOR WEATHERSTRIP, LH
main67867-89103i202108-202509
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68101-37100i202108
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68102-37120i202108-202509
68141ERUN, FRONT DOOR GLASS, RH
main68141-37030i202108-202509
68151DRUN, FRONT DOOR GLASS, LH
main68151-37030i202108
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
main68161-37011i202108-202509
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
main68162-37011i202108-202509
68610CHECK ASSY, FRONT DOOR
main68610-37030×2i202108
main68610-37040×2i202108-202509
68617PIN, FRONT DOOR CHECK
main68617-20011×2i202108-202509
68618EBRACKET, FRONT DOOR CHECK ARM
main68618-37020×2i202108-202509
9033325001
main90333-25001
9033335004
main90333-35004
9046706084
main90467-06084
9165340612
main91653-40612
9167180618
main91671-80618

37 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota DYNA

This section contains 51 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota DYNA. Key components include: SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FR FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH.
