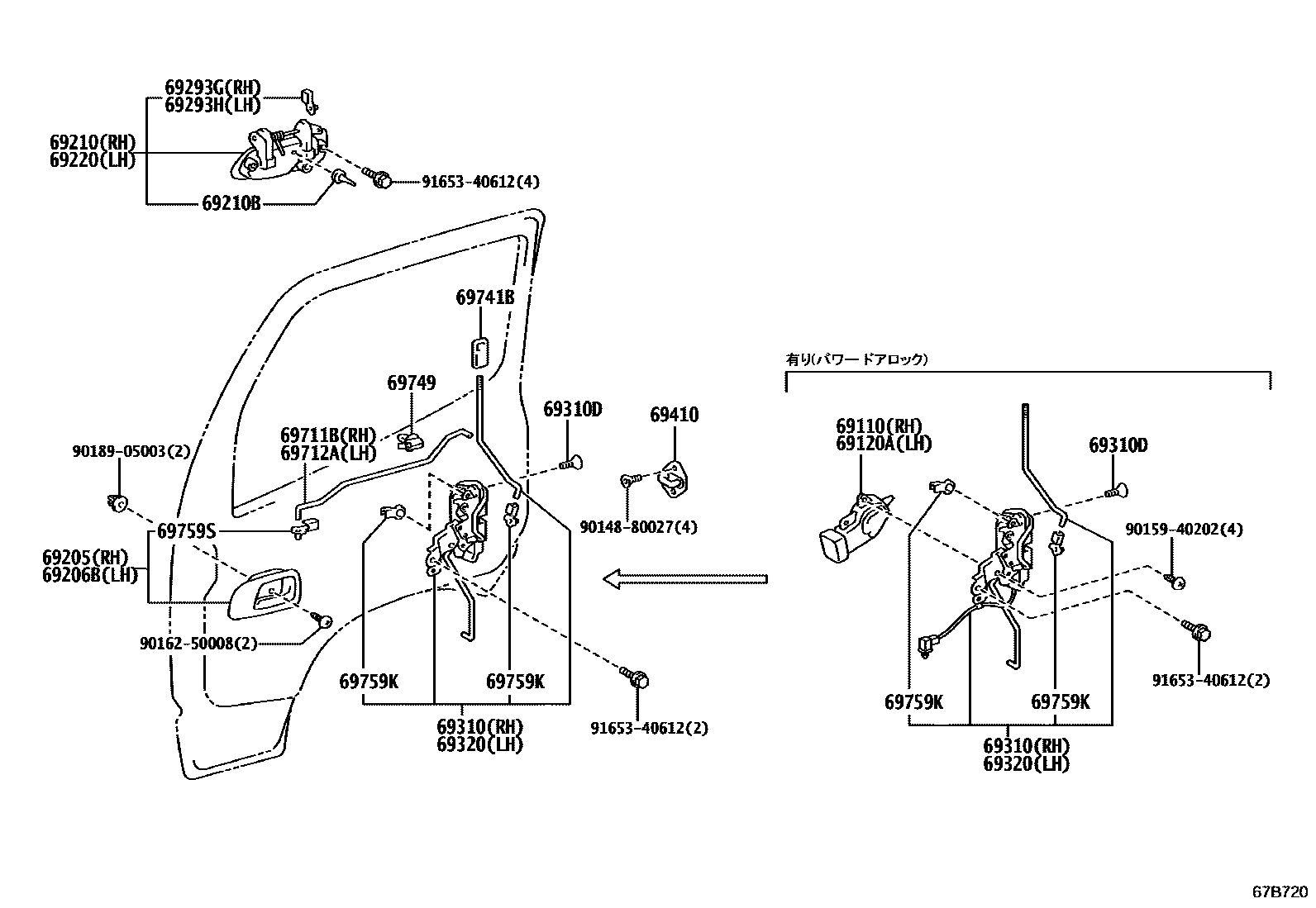

Toyota DYNA — FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-25010iGDY231,281..IV6202108-202509

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37050iGDY231,281202108-202509

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-37010-B1iGDY231,281202108-202509

GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-37010-B1iGDY231,281202108-202509

GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37020iGDY231,281202108-202509

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015×4iGDY231,281202108-202509

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37020iGDY231,281202108-202509

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12050iGDY231,281202108-202509

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12060iGDY231,281202108-202509

69310LOCK ASSY, FRONT DOOR, RH

main69310-37070iTRY230..10T202108

main69310-37090iGDY231,281..CBU,IV3202108-202509

69310DSCREW, DOOR LOCK

main90148-60082×6iGDY231,281202108-202509

69320LOCK ASSY, FRONT DOOR, LH

main69320-37060iGDY231,281202108-202509

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iGDY231,281202108-202509

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-37010iGDY231,281202108-202509

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-37010iGDY231,281202108-202509

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-C0×2iGDY231,281202108-202509

BLACK,TRIM1#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070×2iTRY230202108

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20040iTRY230202108

main69759-20050iGDY231,281202108-202509

main69759-24010iTRY230202108

main69759-24020iGDY231,281202108-202509

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iTRY230202108

main69759-22050iGDY231,281202108-202509

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9165340612

main91653-40612

24 parts on this diagram · 1 diagram in section
