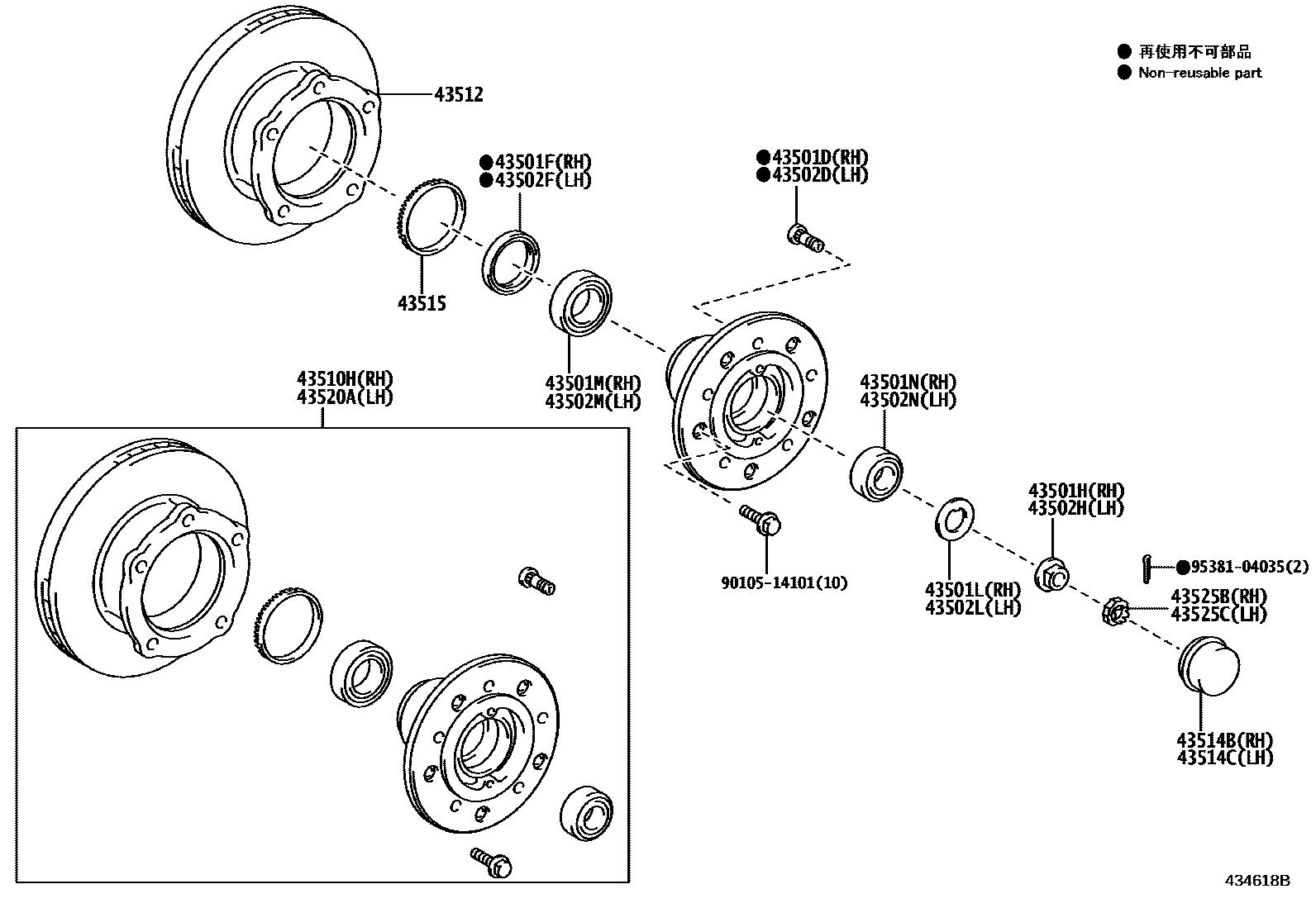

Toyota DYNA — FRONT AXLE HUB
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH
main43510-39207iXZU605,645,655..30T;XZU650..T3..(20T,30T);XZU600,630,640..20T,30T;XZU605,655..(DM6,T2,T3,T5)..20T202405
43512DISC, FRONT
main43512-37091×2iXZU650..T3..(20T,30T);XZU600,605,645,655..30T;XZC675,XZU630,640,675,685,695..20T,30T;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T202103
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43515ROTOR, SKID CONTROL, FRONT
43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH
main43520-39186iXZU605,645,655..30T;XZU650..T3..(20T,30T);XZU600,630,640..20T,30T;XZU605,655..(DM6,T2,T3,T5)..20T202405
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9010514101
main90105-14101
9538104035
main95381-04035
22 parts on this diagram · 3 diagrams in section
FRONT AXLE HUB for Toyota DYNA
This section contains 43 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota DYNA. Key components include: SCREW, FRONT AXLE BEARING LOCK NUT, NUT, FRONT AXLE BEARING LOCK, PLATE, FRONT AXLE LOCK NUT, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH.
