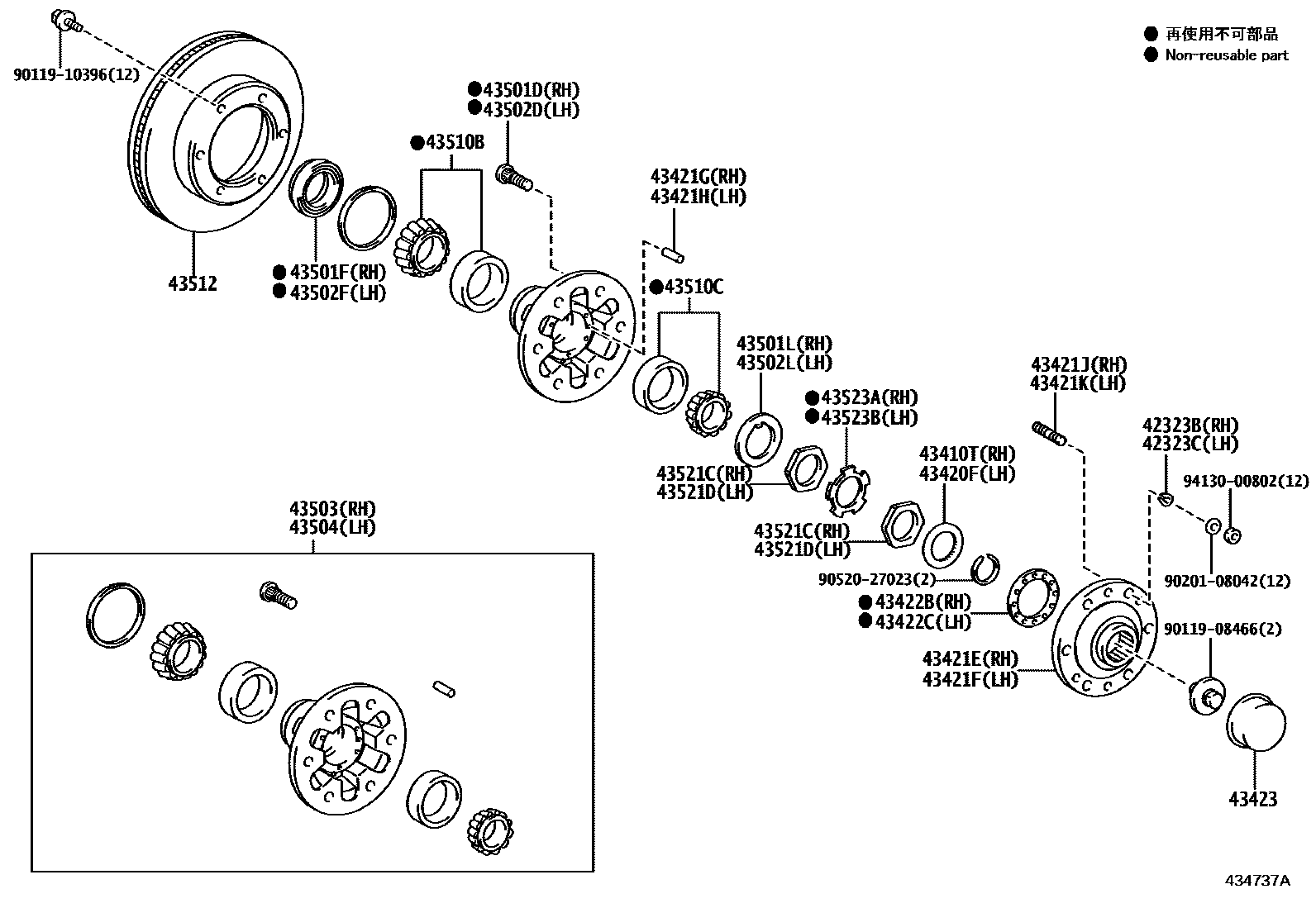

Toyota DYNA — FRONT AXLE HUB

0001 1 0002 1

42323BWASHER, CONE (FOR FRONT AXLE SHAFT RH)

main42323-60010×6iGDY281202108-202509

42323CWASHER, CONE (FOR FRONT AXLE SHAFT LH)

main42323-60010×6iGDY281202108-202509

43410TSPACER (FOR FRONT DRIVE SHAFT RH)

main90560-27005iGDY281202108-202509

43420FSPACER (FOR FRONT DRIVE SHAFT LH)

main90560-27005iGDY281202108-202509

43421EFLANGE, FRONT AXLE OUTER SHAFT, RH

main43421-26010iGDY281202108-202509

43421FFLANGE, FRONT AXLE OUTER SHAFT, LH

main43421-26010iGDY281202108-202509

43421GPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90250-07057×2iGDY231,281202108-202509

43421HPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90250-07057×2iGDY231,281202108-202509

43421JBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90116-08325×6iGDY281202108-202509

43421KBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90116-08325×6iGDY281202108-202509

43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH

main43422-60010iTRY230202108

43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH

main43422-60010iGDY231,281202108-202509

43423CAP, FRONT AXLE OUTER SHAFT FLANGE

main43423-35010×2iGDY281202108-202509

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iGDY231,281..T2,TS202108-202509

main90942-02061×6iGDY231,281..T4202108-202509

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-66003iGDY231,281202108-202509

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-42030iGDY231,281202108-202509

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iGDY231,281..T2,TS202108-202509

main90942-02062×6iGDY231,281..T4202108-202509

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-66003iGDY231,281202108-202509

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-42030iGDY231,281202108-202509

43503HUB SUB-ASSY, FRONT AXLE W/ABS ROTOR, RH

main43503-29026iTRY230202108

main43503-29035iGDY231,281..T4202108-202509

43504HUB SUB-ASSY, FRONT AXLE W/ABS ROTOR, LH

main43503-29026iGDY231,281..T2,TS202108-202509

main43504-29015iGDY231,281..T4202108-202509

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-49084×2iGDY231,281202108-202509

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-45087×2iGDY231,281202108-202509

43512DISC, FRONT

main43512-25061×2iTRY230202108

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-60011×2iGDY231,281202108-202509

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-60011×2iGDY231,281202108-202509

43523AWASHER, FRONT WHEEL ADJUSTING LOCK, RH

main90215-42025iGDY231,281202108-202509

43523BWASHER, FRONT WHEEL ADJUSTING LOCK, LH

main90215-42025iGDY231,281202108-202509

9011908466

main90119-08466

9011910396

main90119-10396

9020108042

main90201-08042

9052027023

main90520-27023

9413000802

main94130-00802

33 parts on this diagram · 2 diagrams in section
