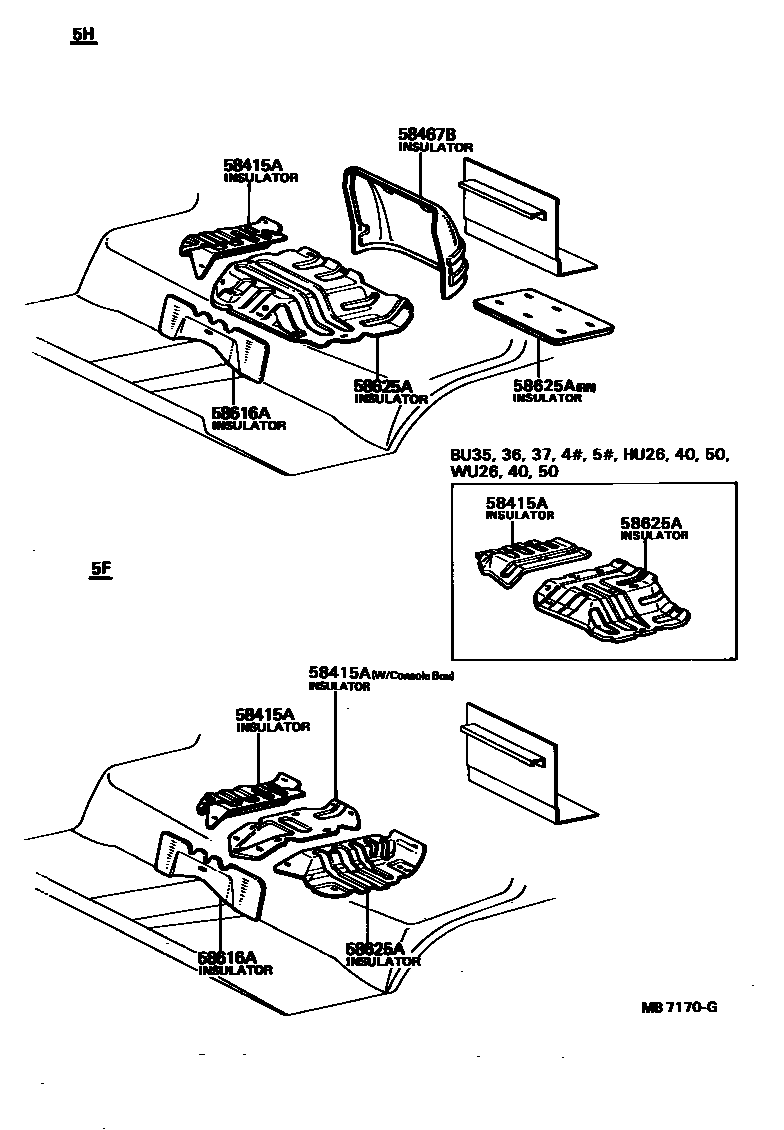

Toyota DYNA — FLOOR INSULATOR

58415AINSULATOR, SUB-COVER

main58415-95401i197708-198408

main58415-95402i197708-198208

W/CONSOLE BOX

main58415-95403i198008-198408

main58415-95405i198208-198408

W/CONSOLE BOX

58467BINSULATOR, MISSION SERVICE HOLE COVER

main58467-95400i197708-198008

main58467-95402i198008-198408

58616AINSULATOR, FLOOR, CENTER FRONT

main58616-95405i197708-198104

main58616-95407i198104-198306

58625AINSULATOR, ENGINE SERVICE MAIN HOLE COVER

main58625-95402i197708-198104

main58625-95404i197708-198408

main58625-95405i198008-198408

main58625-95406i198104-198408

4 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota DYNA

This section contains 4 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota DYNA. Key components include: INSULATOR, SUB-COVER, INSULATOR, MISSION SERVICE HOLE COVER, INSULATOR, FLOOR, CENTER FRONT, INSULATOR, ENGINE SERVICE MAIN HOLE COVER.
