Toyota DYNA — EXHAUST GAS RECIRCULATION SYSTEM

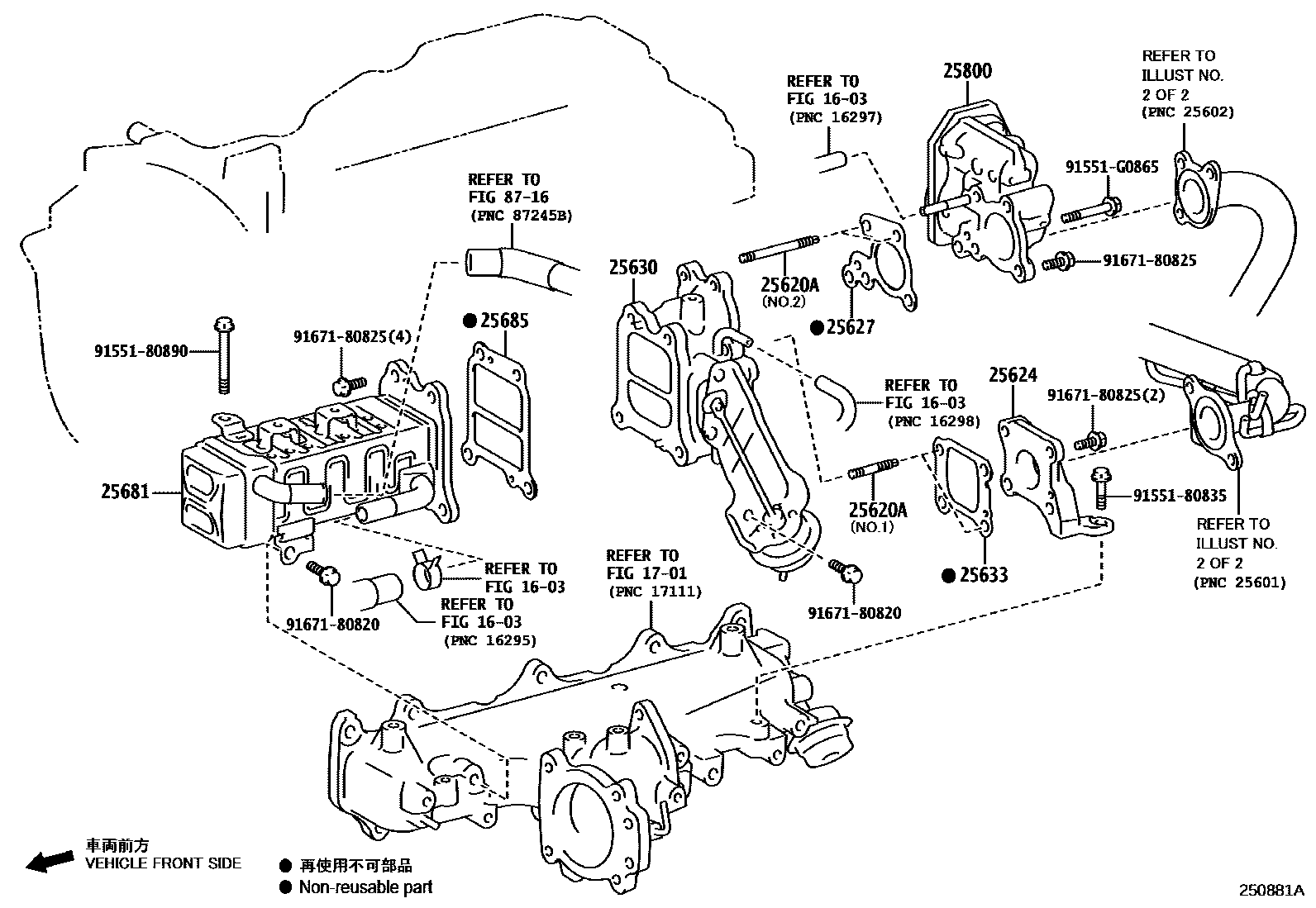

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047×2i202108

main90126-08064×2i202108

25624ADAPTER, EGR VALVE

main25624-11010i202108

25627GASKET, EGR VALVE

main25627-11050i202108

25630VALVE ASSY, EGR, NO.2

main25630-11040i202108-202202

main25630-11041i202203

25633GASKET, EGR VALVE

main25633-11010i202108

25681COOLER, EGR, NO.1

main25681-0W030i202108

25685GASKET, EGR COOLER, NO.1

main25685-11010i202108

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-11010i202108

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9155180835

main91551-80835

9155180890

main91551-80890

91551G0865

main91551-G0865

9167180820

main91671-80820

9167180825

main91671-80825

16 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota DYNA

This section contains 30 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota DYNA. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, PIPE SUB-ASSY, EGR, NO.2, BOLT, STUD(FOR EGR VALVE).
