Toyota DYNA — ELECTRONIC FUEL INJECTION SYSTEM

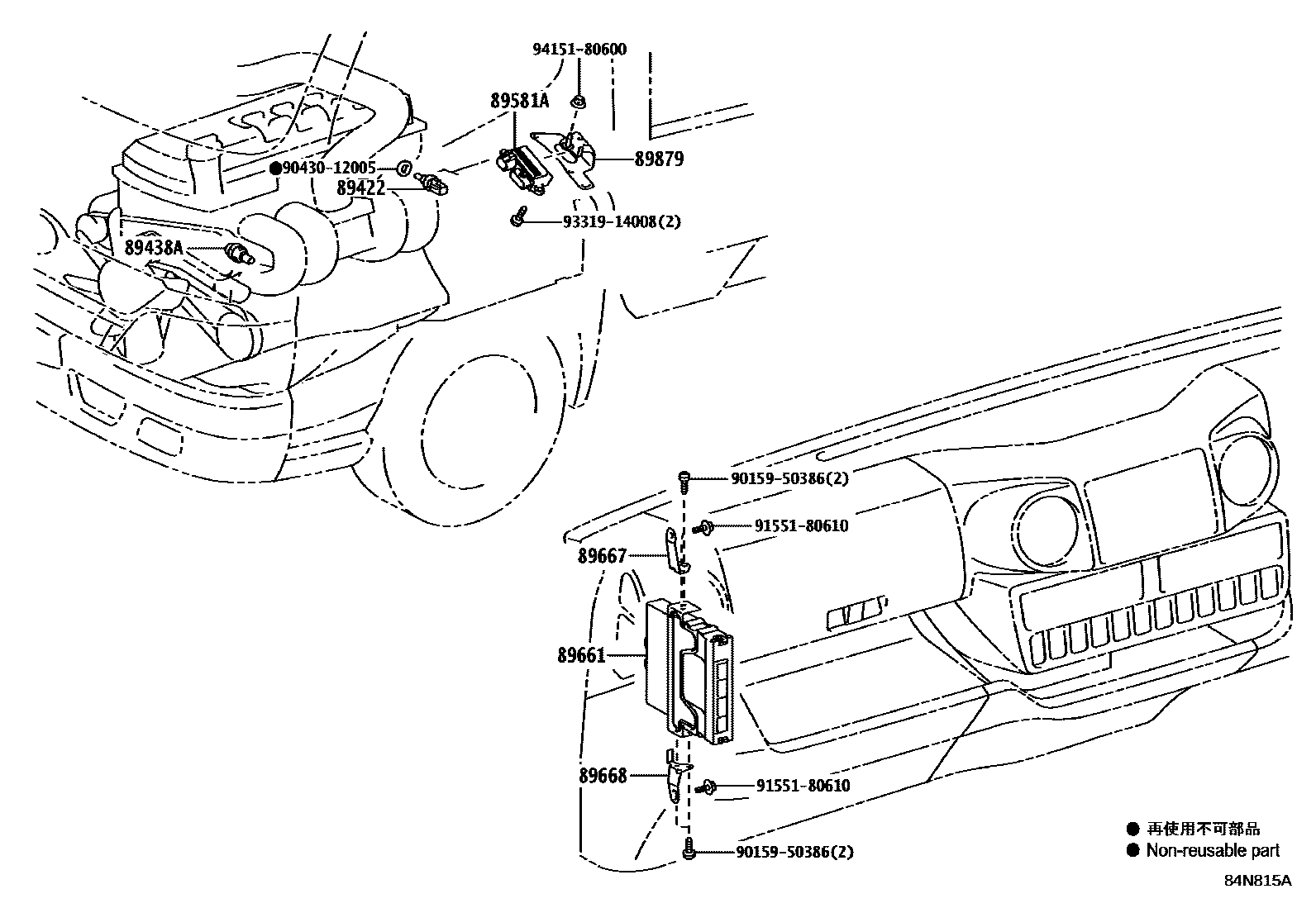

Parts diagram

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i202108

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-71010i202108

89581ADRIVER, AIR INJECTION CONTROL

main89581-60010i202108

89661COMPUTER, ENGINE CONTROL

main89661-25460i202108

main89661-25580i202108

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-25140i202108

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-25130i202108

89879BRACKET, INJECTOR DRIVER

main89589-25010i202108

9015950386

main90159-50386

9043012005

main90430-12005

9155180610

main91551-80610

9331914008

main93319-14008

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota DYNA

This section contains 12 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota DYNA. Key components include: SENSOR, WATER TEMPERATURE (FOR E.F.I.), SWITCH, POWER STEERING OIL PRESSURE, DRIVER, AIR INJECTION CONTROL, COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER.
