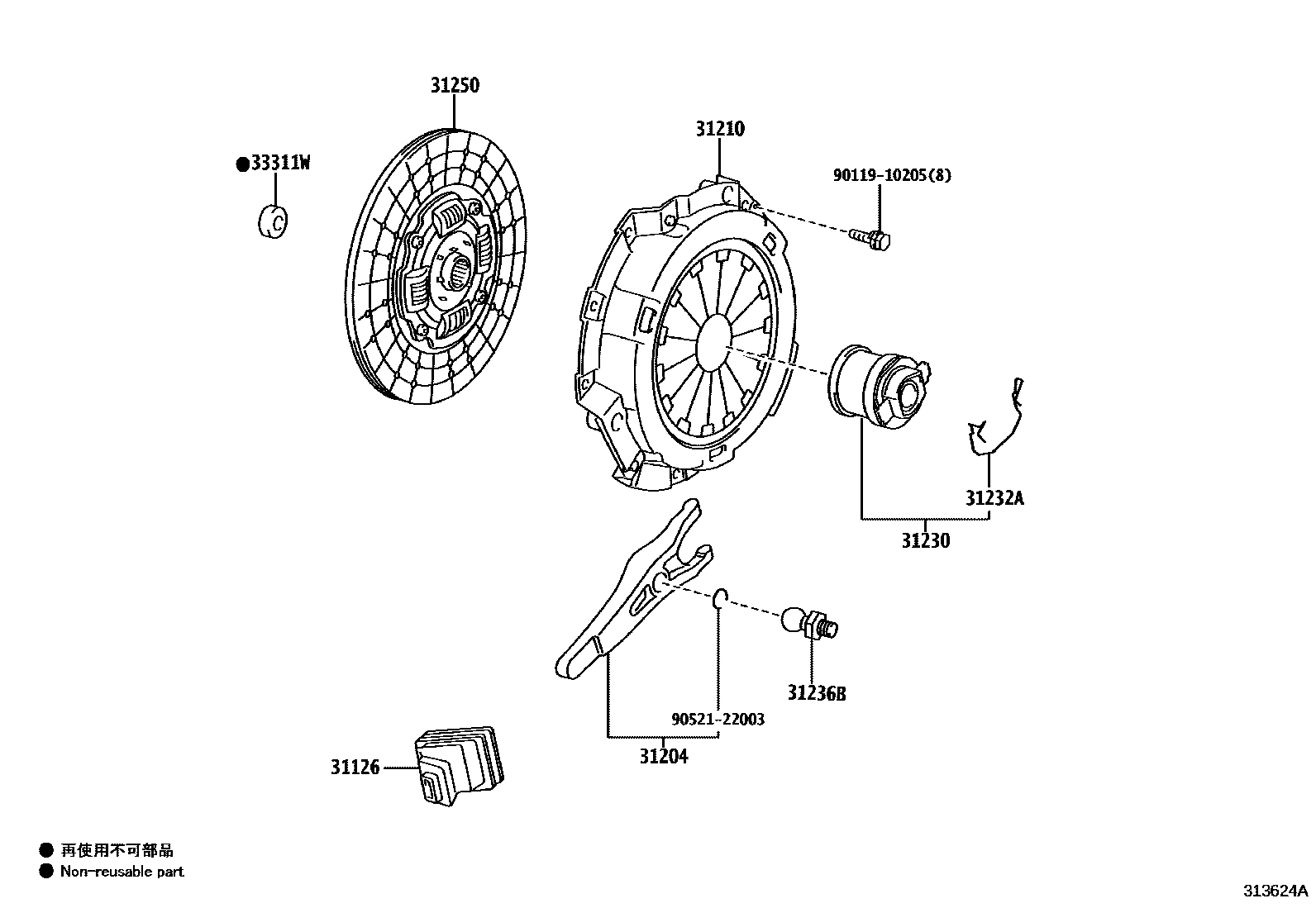

Toyota DYNA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36070iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31210COVER ASSY, CLUTCH

main31210-37151iXZU600,640,685..MTM..(IV4,IV7)202103

main31210-37210iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV5,IV6)202103

31230BEARING ASSY, CLUTCH RELEASE

main31230-36200iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV5,IV6)202103

main31230-36210iXZU600,640,685..MTM..(IV4,IV7)202103

31232ACLIP, RELEASE BEARING HUB

main31232-36030iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31236BSUPPORT, RELEASE FORK

main31236-36060iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

31250DISC ASSY, CLUTCH

main31250-37221iXZU600,640,685..MTM..(IV4,IV7)202103

main31250-37331iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV5,IV6)202103

33311WBEARING (FOR INPUT SHAFT)

main90363-17037iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM202103

9011910205

main90119-10205

9052122003

main90521-22003

10 parts on this diagram · 2 diagrams in section
