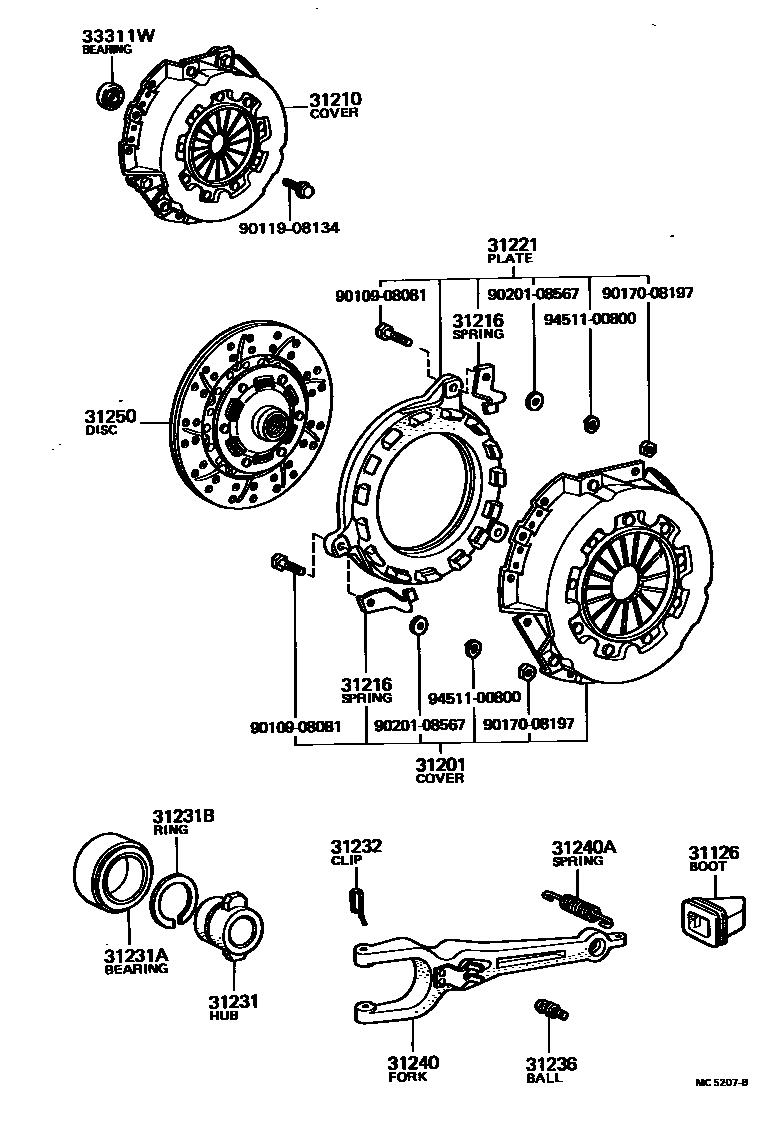

Toyota DYNA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iBU2#,3#,4#,5#197708-198408

31201COVER SUB-ASSY, CLUTCH

main31201-39085iBU2#,30197708-197804

main31201-39095iBU2#,3#197804-197907

main31201-39096iBU2#,3#197907-198003

main31201-39097iBU2#,30,35198003-198107

main31201-39115iBU36198009-198107

31210COVER ASSY, CLUTCH

main31210-36060iBU2#,30197708-197804

main31210-36070iBU2#,3#197804-197907

main31210-36071iBU2#,3#197907-198003

main31210-36072iBU2#,30,31,35198003-198107

sub31210-36073

main31210-36090iBU36198009-198107

main31210-36100iBU2#,3#,4#,51198408-198408

31216SPRING, CLUTCH RETRACTING

main31216-36010×3iBU2#,3#,4#,5#197708-198408

31221PLATE, CLUTCH PRESSURE

main31221-39075iBU2#,30197708-197804

main31221-39085iBU2#,30,35197804-198107

sub31221-39145

main31221-39125iBU36198009-198107

sub31221-36090

31231HUB, CLUTCH RELEASE BEARING

main31231-36060iBU2#,30197708-197903

main31231-36061iBU2#,3#197903-198008

main31231-36062iBU2#,3#,4#,5#198008-198408

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45001iBU2#,3#197708-198110

main90363-45002iBU2#,3#,4#,5#198110-198408

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main96152-00450iBU2#,3#197708-198008

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-30010×2iBU2#,3#,4#,5#197708-198408

31236BALL, RELEASE FORK

main31236-20040iBU20,3#198008-198111

main31236-30030iBU2#,3#197708-198008

main31236-30040iBU2#,3#,4#,5#198111-198408

31240FORK ASSY, CLUTCH RELEASE

main31204-25010iBU2#,3#,4#,5#198111-198408

main31204-36030iBU2#,3#197708-198008

main31204-36031iBU20,3#198008-198111

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iBU2#,3#,4#,5#197708-198408

31250DISC ASSY, CLUTCH

main31250-36110iBU2#,30197708-197810

main31250-36111iBU2#,3#197810-198002

main31250-36112iBU2#,3#198002-198008

sub31250-36114

main31250-36113iBU2#,3#,4#,50198008-198210

sub31250-60090

main31250-36161iBU2#,3#,4#,5#198210-198408

sub31250-36230

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBU2#,3#,4#,5#198008-198408

6201 2NK

sub90363-12024

main97143-06201iBU2#,3#197708-198008

6201 VV C3

9010908081

main90109-08081

9011908134

main90119-08134

9017008197

main90170-08197

9020108567

main90201-08567

9451100800

main94511-00800

19 parts on this diagram · 1 diagram in section
