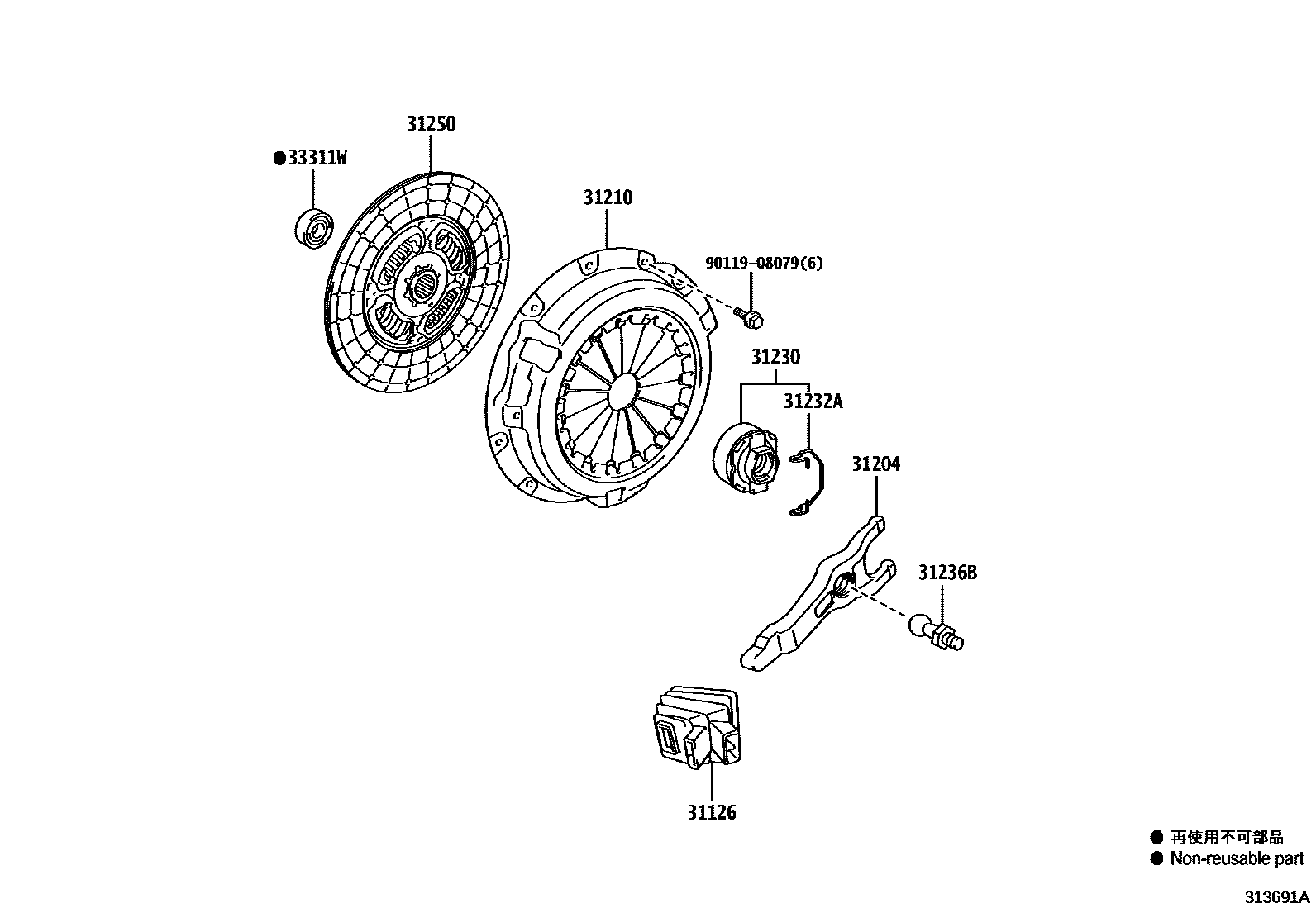

Toyota DYNA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36080iTRY230..5F202108

main31126-60081iGDY231,281..5F202108-202509

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iTRY230..5F202108

main31204-60090iGDY231,281..5F202108-202509

31210COVER ASSY, CLUTCH

main31210-35281iTRY230..5F202108

main31210-36350iGDY231,281..5F202108-202509

31230BEARING ASSY, CLUTCH RELEASE

main31230-35071iTRY230..5F202108

main31230-60221iGDY231,281..5F202108-202509

31232ACLIP, RELEASE BEARING HUB

main31232-35020iTRY230..5F202108

main31232-60030iGDY231,281..5F202108-202509

31236BSUPPORT, RELEASE FORK

main31236-35030iTRY230..5F202108

main31236-60060iGDY231,281..5F202108-202509

31250DISC ASSY, CLUTCH

main31250-26200iTRY230..5F202108

main31250-26253iGDY231,281..5F202108-202509

33311WBEARING (FOR INPUT SHAFT)

main90363-12018iTRY230..5F202108

main90363-12024iGDY231,281..5F202108-202509

9011908079

main90119-08079

9 parts on this diagram · 2 diagrams in section
