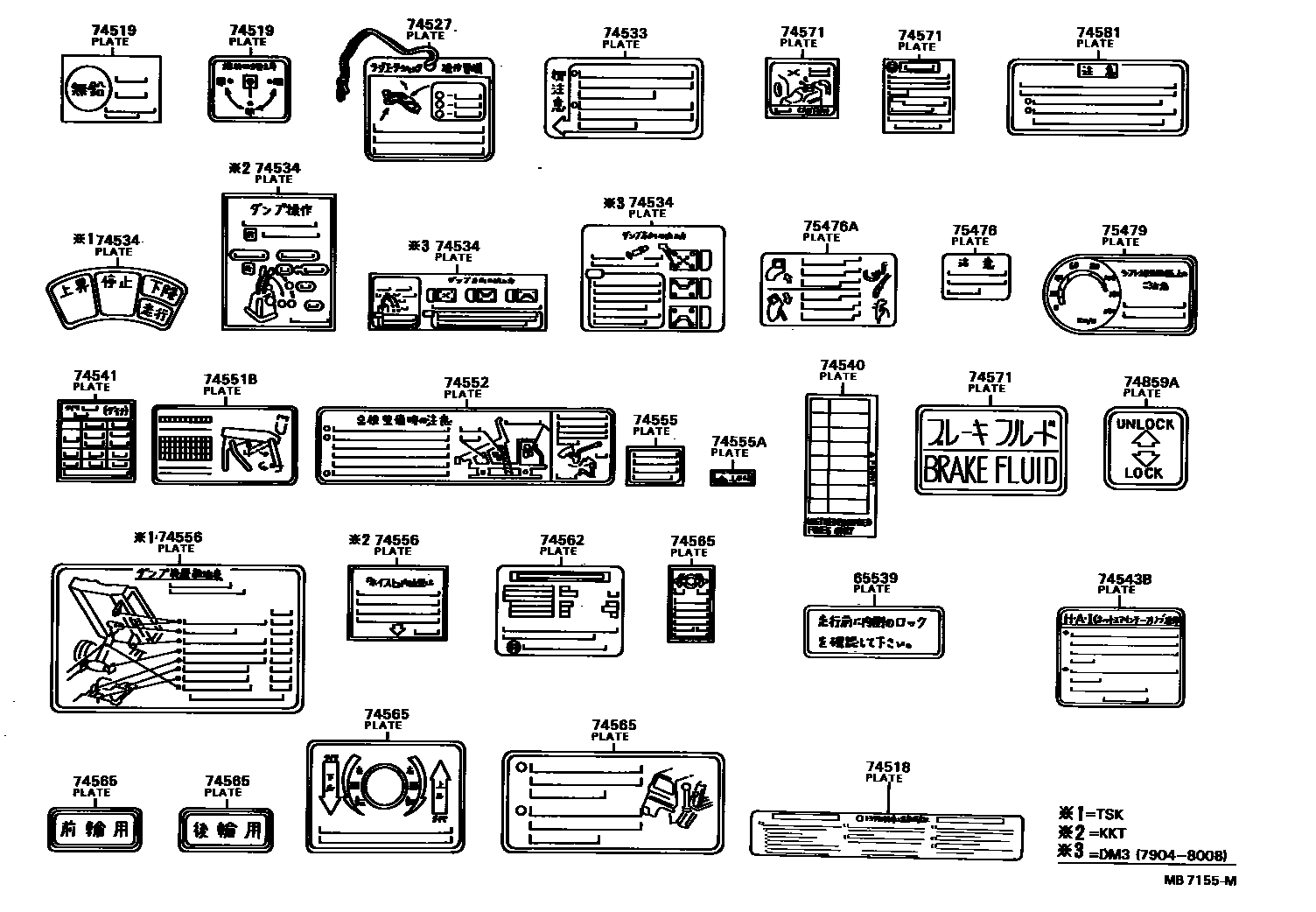

Toyota DYNA — CAUTION PLATE

0001 1 0002 1

65539PLATE, SIDE GATE CAUTION

74518PLATE, MAINTENANCE CAUTION

main74517-20020iBU2#,3#,4#,51198306-198408

145 X 35

main74518-22020iBU2#,3#197708-198008

main74518-22021iBU2#,3#,4#,5#198008-198306

224 X 35

74519PLATE, FUEL CAUTION

main74559-36010iBU30,37..T3;BU31,34,40,41,5#..03S198004-198408

FUEL SUB-TANK

sub74538-37030

74527PLATE, RADIATOR SHUTTER CAUTION

main87545-95401iBU20,30198102-198204

COLD SPEC

main87545-95402iBU35,36,37,4#,5#198107-198408

COLD SPEC

main87545-95403iBU2#,30,32,33,34198204-198408

COLD SPEC

74533PLATE, TRANSFER CAUTION

main74533-96601iBU20,21,23..TSK197708-198408

sub74528-96303

74534PLATE, DAMP CAUTION

main74531-93103iBU20,21,23..(DM1,DM4)..KKT197708-198408

main74531-93300iBU20..DM3197904-198008

DOOR SIDE

main74531-93301iBU20..DM3198008-198408

TYPE A

main74531-93302iBU20..DM3198008-198408

TYPE B

main74531-93303iBU20..DM3198008-198408

TYPE C

main74531-93304iBU20,21,23..DM3198008-198408

DOOR SIDE

main74531-93310iBU20..DM3197904-198008

GATE SIDE

main74531-96305iBU20,21,23..TSK197708-198408

74540PLATE, FUSE BLOCK CAUTION

main74555-95401iBU2#,30,32,33,34198204-198408

74541PLATE, TIRE PRESSURE CAUTION

main74552-36390iBU20..DTP;BU20..ST..20T197708-198008

main74552-36391iBU20,22..ST..20T198008-198408

main74552-36410iBU20..V197708-198008

COLD SPEC

main74552-36411iBU20,22..TB..ST198008-198408

COLD SPEC

main74552-36430iBU20..TR..06S197708-198008

main74552-36431iBU20,22..TS..06S198008-198408

main74552-36440iBU30..ST197708-198408

main74552-36450iBU20,30..T2197708-198008

main74552-36451iBU20,22..M50..WT..20T198008-198408

main74552-36460iBU20..T3..WT;BU20..BTP..DSL197708-198008

main74552-36461iBU2#..TB..H50..20T198008-198408

main74552-36470iBU20..DM1;BU2#..KKT..(BTP,ETP)197708-198008

main74552-36471iBU20..DM1;BU20..BTP198008-198204

main74552-36490iBU20..CTP;BU20..275..ATP197708-198008

main74552-36491iBU30,32,34..H50..20T198008-198408

main74552-36500iBU20,30..25T,275197803-198008

main74552-36501iBU30..06S198008-198204

main74552-36502iBU32,34..06S198204-198408

main74552-36510iBU31197708-198008

main74552-36541iBU20,22..DTP198008-198408

main74552-36550iBU20,21,23..FTP198008-198408

main74552-36560iBU35,36,37..T2198008-198408

main74552-36570iBU35,36,37..H50..20T198008-198408

main74552-36580iBU36..275198008-198408

main74552-36590iBU36..30T198008-198408

main74552-36600iBU20..06S..WT198008-198204

main74552-36610iBU30,33..M50198008-198408

main74552-36621iBU20,22..V..(03S,06S)198008-198408

main74552-36640iBU20,21,23..275198008-198408

main74552-36650iBU20..CTP;BU20,21,23..DM3198008-198408

main74552-36670iBU20..09S198008-198302

main74552-36671iBU22..09S198302-198408

main74552-36760iBU40,41,5#198204-198304

main74552-36761iBU41,51198304-198408

main74552-36790iBU21,23..DM1198204-198408

main74552-36800iBU21,23..DM4198204-198408

main74552-36810iBU36,37..GTP198204-198408

main74552-36820iBU21,23..BTP198204-198408

main74552-36840iBU20,22..06S..WT198204-198408

74543BPLATE, HOT AIR INTAKE CAUTION

74551BPLATE, REAR NO.2 SEAT CAUTION

main71591-95A00iBU20,22..09S198008-198408

74552PLATE, SAFETY CAUTION

main74534-96302iBU20,21,23..TSK197708-198408

74555PLATE, DUMP LEVER CAUTION

main74538-96301iBU20,21,23..TSK197708-198408

74555APLATE, DUMP LEVER LOCK CAUTION

main74535-96302iBU20,21,23..TSK197708-198408

74556PLATE, GREASE CAUTION

main74533-93102iBU20,21,23..(DM1,DM4)..KKT197708-198408

main74533-93300iBU21,23..DM3198204-198408

main74539-96301iBU20,21,23..TSK197708-198408

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-25080iBU22,33198308-198408

main74562-36021iBU20,30197708-197904

main74562-36022iBU2#,30,35197904-198204

main74562-36040iBU36198008-198302

main74562-36070iBU31197904-198008

main74562-36100iBU21,32,36,4#,50198204-198302

main74562-36110iBU20,30198204-198302

main74562-36111iBU22,33198302-198308

main74562-60042iBU23,34,37,4#,51198308-198408

main74562-60050iBU23,34,37,4#,51198302-198308

74565PLATE, TIRE CARRIER CAUTION

main74544-35050iBU20,30..HRF,SRF,T1,T3,TW1197708-197804

sub74544-35060

main74544-36010iBU22..ST;BU20,21,23..BTP,CTP,DTP,FTP;BU20,21,23..HRF,SRF,T1,T3,TW1;BU22,30,32,34,35,36,37,40,41..H50198008-198408

sub74544-36020

main74544-93100iBU20..L1..KKT197708-198204

main74544-96301iBU20,21,23..L2..TSK197708-198408

main74544-96302iBU20..L1..TSK198008-198204

main74585-25010iBU20,22,30,33,35,36,37..T2,TW2197708-198408

FR WHEEL

main74586-25010iBU20,22,30,33,35,36,37..T2,TW2197708-198408

RR WHEEL

74571PLATE, BRAKE FLUID CAUTION

main74571-27011iBU2#,3#,4#,5#197708-198306

main74571-27021iBU2#,3#,4#,51198306-198408

main75318-95405iBU2#,3#,4#,5#198204-198408

W/RESERVOIR TANK COVER,OUTER

main75318-95A00iBU2#,3#197708-198204

W/RESERVOIR TANK COVER,OUTER

main75319-95A00iBU2#,3#,4#,5#197708-198408

W/RESERVOIR TANK COVER,INNER

74581PLATE, POWER STEERING CAUTION

main74581-37010iBU20..KKT..IV3;BU20..DM3..CBU;BU22..20T..CBU;BU21,23..DM3,TB;BU21,23..BTP,FTP;BU20..CTP,DTP,FTP;BU20..TR..(20T,275);BU22..(02S,03S)..IV3;BU30,32,33,35,36,37,4#,5#..198108-198408

74859APLATE, CAUTION, REAR SEPARATOR

main74859-95A00iBU20,22..HRF..06S197708-198408

75476PLATE, TILT CAUTION

main52269-95400iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S197708-198408

75476APLATE, TILT OPERATIONAL CAUTION

main75476-95400iBU20,30..(DMP,TR)..(02S,03S)197708-197803

main75476-95402iBU30..TB197803-197904

W/OVER FENDER

main75476-95403iBU20..FTP;BU20..KKT,TSK;BU20,22..TR..(02S,03S);BU21,23,30,31,32,33,34..02S,03S197803-198408

75479PLATE, OVER RUN, CAUTION

main75479-95400iBU2#,3#,4#,5#197912-198408

22 parts on this diagram · 2 diagrams in section
