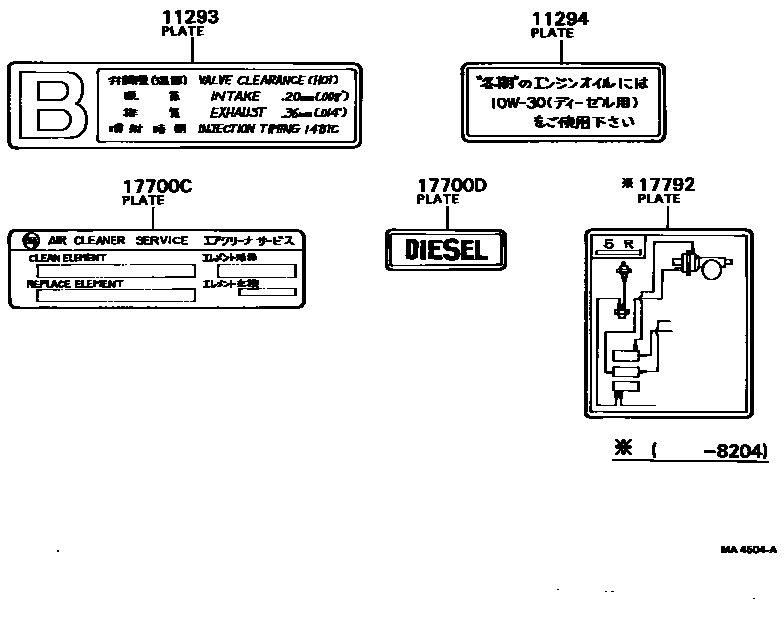

Toyota DYNA — CAUTION PLATE & NAME PLATE (ENGINE)

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-56012iB..BU2#,30197708-197904

main11293-56030iB..BU2#,30197904-198008

main11293-56040iB..BU20,30,35198008-198302

main11293-56050iB..BU22,33198302-198408

main11293-57020i2B..BU31197904-198008

sub11293-57030

main11293-58010i3B..BU21,32,36,4#,50198009-198302

main11293-58020i3B..BU23,34,37,4#,51198302-198408

11294PLATE, ENGINE CAUTION, NO.2

main11294-56010iB,2B,3B..BU2#,3#,4#,5#197803-198408

COLD SPEC

sub11294-54040

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-64020iB,3B..BU2#,3#,4#,51198307-198408

main17791-68010iB,3B..BU2#,3#,4#,5#198204-198307

main17791-77050iB,2B..BU2#,3#197708-197909

main17791-77051iB,2B,3B..BU2#,3#197909-198010

main17791-77052iB,3B..BU20,3#198010-198204

17700DPLATE, ENGINE CAUTION

main17793-56010iB,2B,3B..BU2#,3#,45,46197708-198408

DIESEL

17792PLATE, ENGINE VACUUM HOSE INFORMATION

5 parts on this diagram · 1 diagram in section
