Toyota DYNA — BRAKE MAINTENANCE KIT

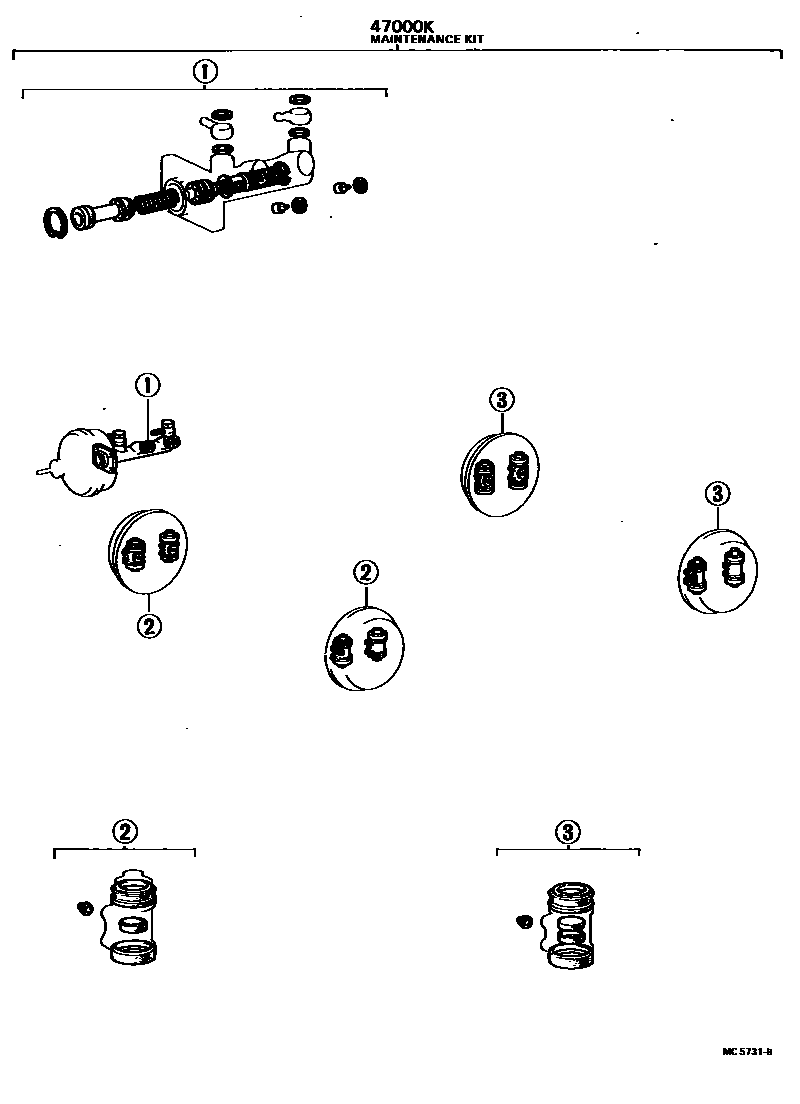

Parts diagram

47000KMAINTENANCE KIT, BRAKE

main04901-36020i197708-197904

main04901-36021i197904-198408

main04901-36030i197708-197904

ID=28.50,WHEEL CYLINDER

main04901-36031i198008-198408

W/O LSPV

main04901-36040i197708-198008

ID=31.75,WHEEL CYLINDER

main04901-36041i198204-198408

main04901-36050i197708-197904

main04901-36051i197904-198408

main04901-36060i197904-198204

main04901-36090i198204-198408

main04901-36100i198204-198408

FR DISC BRAKE

main04901-36110i198204-198408

main04901-36120i198204-198408

1 parts on this diagram · 1 diagram in section

BRAKE MAINTENANCE KIT for Toyota DYNA

This section contains 1 genuine Toyota parts for the BRAKE MAINTENANCE KIT system of the Toyota DYNA. Key components include: MAINTENANCE KIT, BRAKE.
