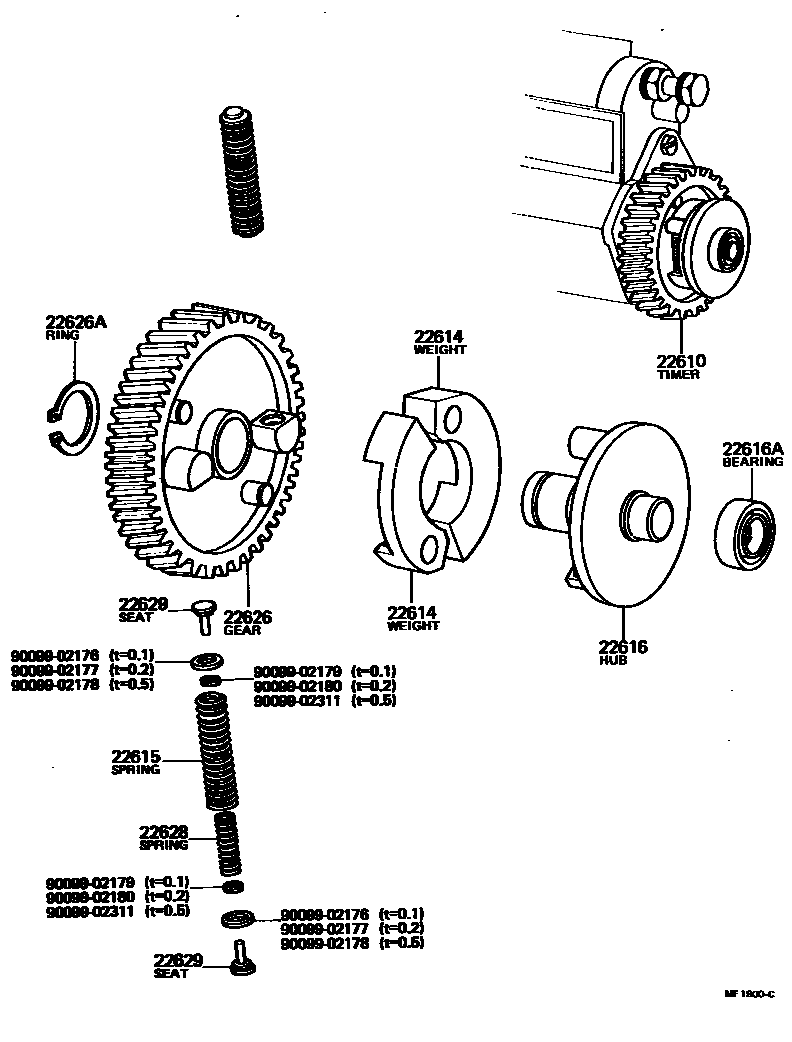

Toyota DYNA — AUTOMATIC TIMER

0001 1 0002 1 MF2636,MF2842

22610TIMER ASSY, AUTOMATIC

main22610-56020iB..BU2#,30197708-197904

main22610-56030iB,2B..BU20,25,30,31,35197904-198302

main22610-56040i3B..BU21,32,36,4#,50198008-198302

22614WEIGHT, TIMER

main22614-56020×2iB,2B,3B..BU2#,3#,4#,50197708-198302

22615SPRING, TIMER

main22615-56010×2iB..BU2#,30197708-197904

main22615-56030×2iB,2B..BU20,25,30,31,35197904-198302

main22615-56040×2i3B..BU21,32,36,4#,50198008-198302

22616HUB, TIMER

main22616-56020iB..BU2#,30197708-197904

main22616-56030iB,2B,3B..BU2#,3#,4#,50197904-198302

22616ABEARING(FOR TIMER HUB)

main90099-10018iB,2B,3B..BU2#,3#,4#,50197708-198302

22626GEAR, DRIVE

main22626-56020iB..BU2#,30197708-197904

main22626-56030iB,2B,3B..BU2#,3#,4#,50197904-198302

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001iB,2B,3B..BU2#,3#,4#,50197708-198302

22628SPRING, TIMER SUB

main22628-56010×2iB..BU2#,30197708-197904

main22628-56030×2iB,2B..BU20,25,30,31,35197904-198302

22629SEAT, SPRING(FOR TIMER SPRING)

main22629-47010×4iB,2B..BU20,25,30,31,35197708-198302

9009902176

main90099-02176

9009902177

main90099-02177

9009902178

main90099-02178

9009902179

main90099-02179

9009902180

main90099-02180

9009902311

main90099-02311

15 parts on this diagram · 2 diagrams in section
