Toyota DYNA — ARMREST & VISOR

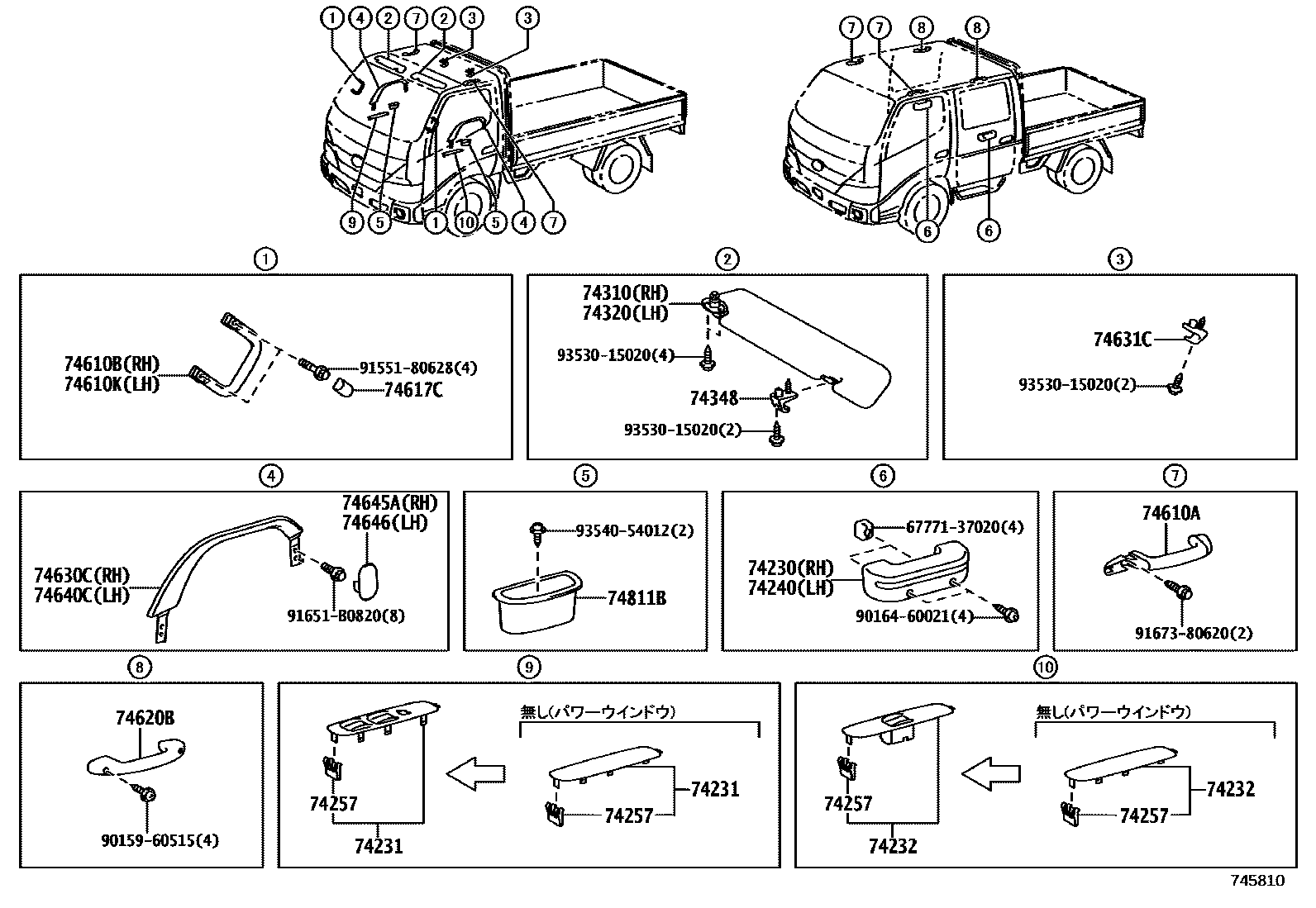

Parts diagram
74230ARMREST ASSY, REAR, RH
main74210-37010-B0i202108-202509
GRAY,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74201-37010i202108
main74231-37012-B1i202108-202509
GRAY,TRIM1#
main74231-37020-B1i202108-202305
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74202-37010i202108-202509
main74232-37010-B1i202108-202509
GRAY,TRIM1#
main74231-37020-B1i202108-202305
74240ARMREST ASSY, REAR, LH
main74210-37010-B0i202108-202509
GRAY,TRIM1#
74257SPRING, ARMREST, NO.1
main74257-37010×2i202108
74310VISOR ASSY, RH
main74310-25280-B0supersedes 74310-25270-B0i202108-202509
74320VISOR ASSY, LH
main74320-37451-B0supersedes 74320-37481-B0i202108-202509
74348HOLDER, VISOR
main74348-22020-B9i202108-202509
MD.CHARCOAL,TRIM1#
74610AGRIP SUB-ASSY, ASSIST
main74611-48010-B0i202108-202509
GRAY,TRIM1#
74610BGRIP ASSY, ASSIST, NO.2 RH
main74610-37040-B0i202108
GRAY,TRIM1#
74610KGRIP ASSY, ASSIST, NO.2 LH
main74610-37040-B0i202108-202509
GRAY,TRIM1#
74617CPLUG, ASSIST GRIP
main74617-37010-B0×4i202108-202509
GRAY,TRIM1#
74620BGRIP ASSY, ASSIST, REAR
main74611-89101-B2×2i202108-202509
MD.CHARCOAL,TRIM1#
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-37020-C0i202108-202509
BLACK,TRIM1#
74631CHOOK, COAT
main74348-22020-B9×2i202108
MD.CHARCOAL,TRIM1#
74640CGRIP ASSY, DOOR ASSIST, LH
main74640-37010-C0i202108-202509
BLACK,TRIM1#
74645ACOVER, DOOR ASSIST GRIP, RH
main74645-25010-B0i202406-202509
GRAY,TRIM1#
main74645-37010-B1i202108-202406
GRAY,TRIM1#
74646COVER, DOOR ASSIST GRIP, LH
main74646-25010-B0i202406-202509
GRAY,TRIM1#
main74646-37010-B1i202108-202406
GRAY,TRIM1#
74811BHANDLE, DOOR PULL
main74811-95J04-B3×2i202108-202509
GRAY,TRIM1#
6777137020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-37020
9015960515
main90159-60515
9016460021
main90164-60021
9155180628
main91551-80628
91651B0820
main91651-B0820
9167380620
main91673-80620
9353015020
main93530-15020
9354054012
main93540-54012

27 parts on this diagram · 1 diagram in section
