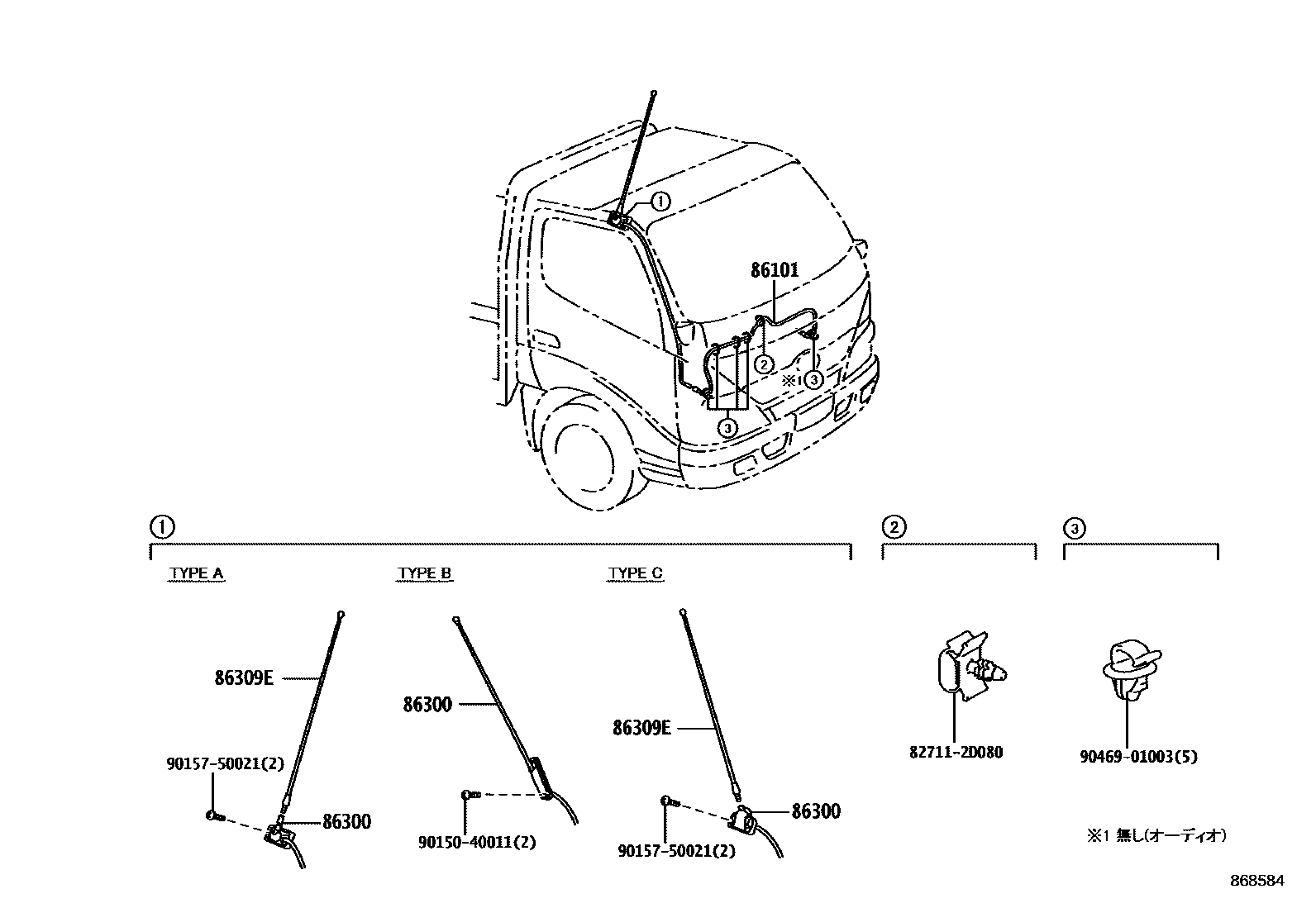

Toyota DYNA — ANTENNA
86101CORD SUB-ASSY, ANTENNA
86300ANTENNA ASSY, W/HOLDER
main86300-37110iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T; XZU605..IV5202103-202405
main86300-37180iXZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T3,T4)..(20T,30T)..(IV3,IV7); XZU685..IV6;XZU600..(DM3,DM5)..IV3;XZU600..(20T,30T)..(CBU,IV6);XZC60#,630,675,XZU605,630,675..SCB..(CBU,IV3,IV6)202103-202107
main86300-37240iXZC60#,630,675,XZU600,605,630,675..SCB..(DM3,DM5,DM7,T2,T4,T5)..(CBU,IV3); XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T3,T4)..(20T,30T)..(IV3,IV7)202108-202403
main86300-37260iXZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T; XZU605..IV5202406
main86300-37280iXZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T3,T4)..(20T,30T)..(IV3,IV7); XZU685..IV6;XZU600..(DM3,DM5)..IV3;XZU600..(20T,30T)..(CBU,IV6);XZC60#,630,675,XZU605,630,675..SCB..(CBU,IV3,IV6)202404
main86300-89131iXZU600..(20T,30T)..IV6;XZC605,675,XZU605,675..SCB..(T2,T4,T5)..(IV3,IV6); XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV7)202103
86309EPOLE SUB-ASSY, ROOF ANTENNA
main86309-37010iXZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)..(CBU,IV3,IV5,IV7)202103
main86309-37020iXZU600,605,685..(20T,30T)..IV6; XZU675..T4..IV3;XZU605..SCB..T4..6FC..20T..IV3202207-202404
827112D080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2D080
9015040011
main90150-40011
9015750021
main90157-50021
9046901003
main90469-01003
7 parts on this diagram · 1 diagram in section
ANTENNA for Toyota DYNA
This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota DYNA. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ROOF ANTENNA, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
