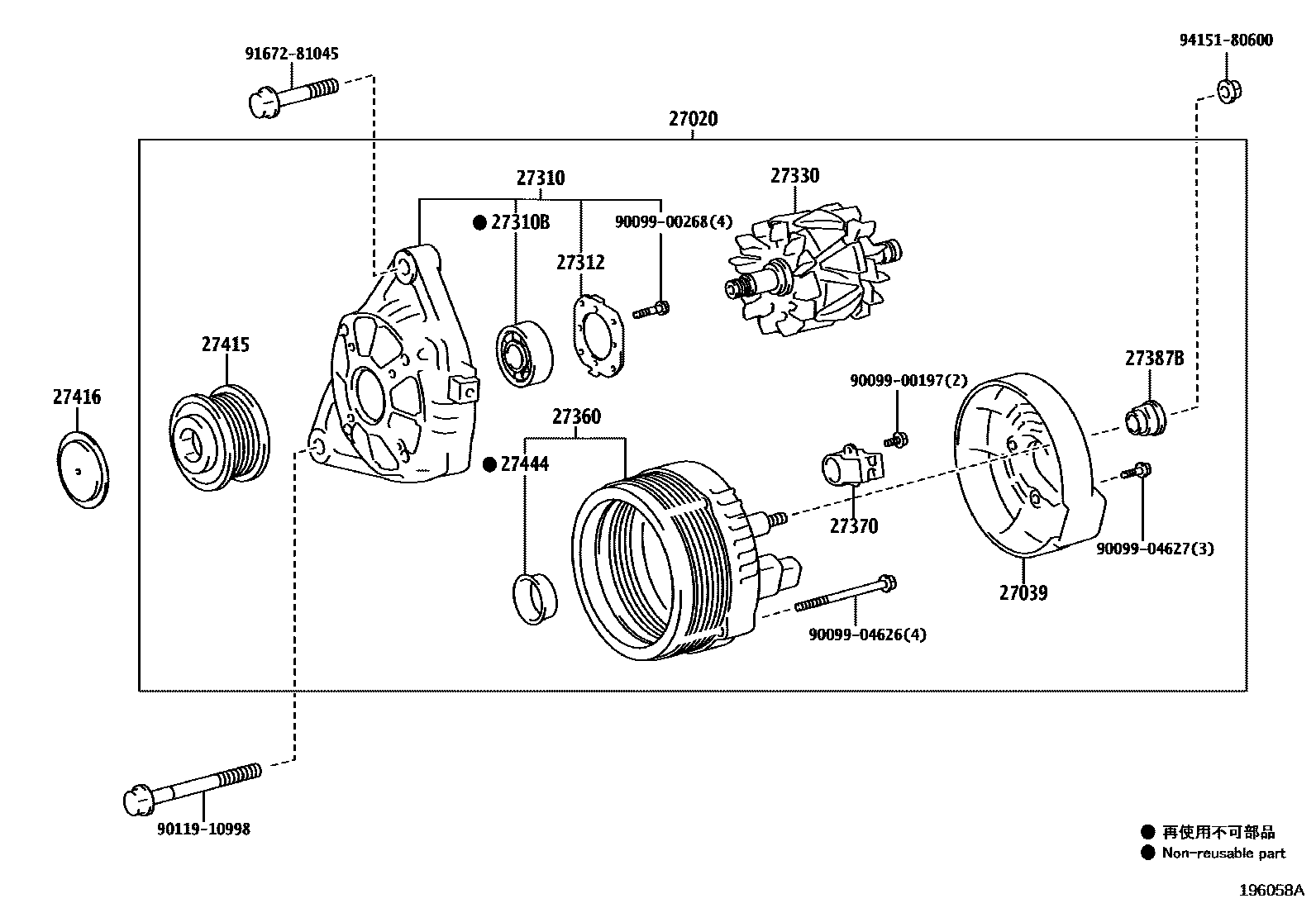

Toyota DYNA — ALTERNATOR
27020ALTERNATOR ASSY
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27387BINSULATOR, ALTERNATOR TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27444PACKING, ALTERNATOR BEARING COVER
9009900197
main90099-00197
9009900268
main90099-00268
9009904626
main90099-04626
9009904627
main90099-04627
9011910998
main90119-10998
9167281045
main91672-81045
9415180600
main94151-80600
19 parts on this diagram · 3 diagrams in section
ALTERNATOR for Toyota DYNA
This section contains 22 genuine Toyota parts for the ALTERNATOR system of the Toyota DYNA. Key components include: ALTERNATOR ASSY, BOLT, NO.1(FOR ALTERNATOR), BOLT, NO.2(FOR ALTERNATOR), BOLT, NO.3(FOR ALTERNATOR), COVER, ALTERNATOR REAR END.
