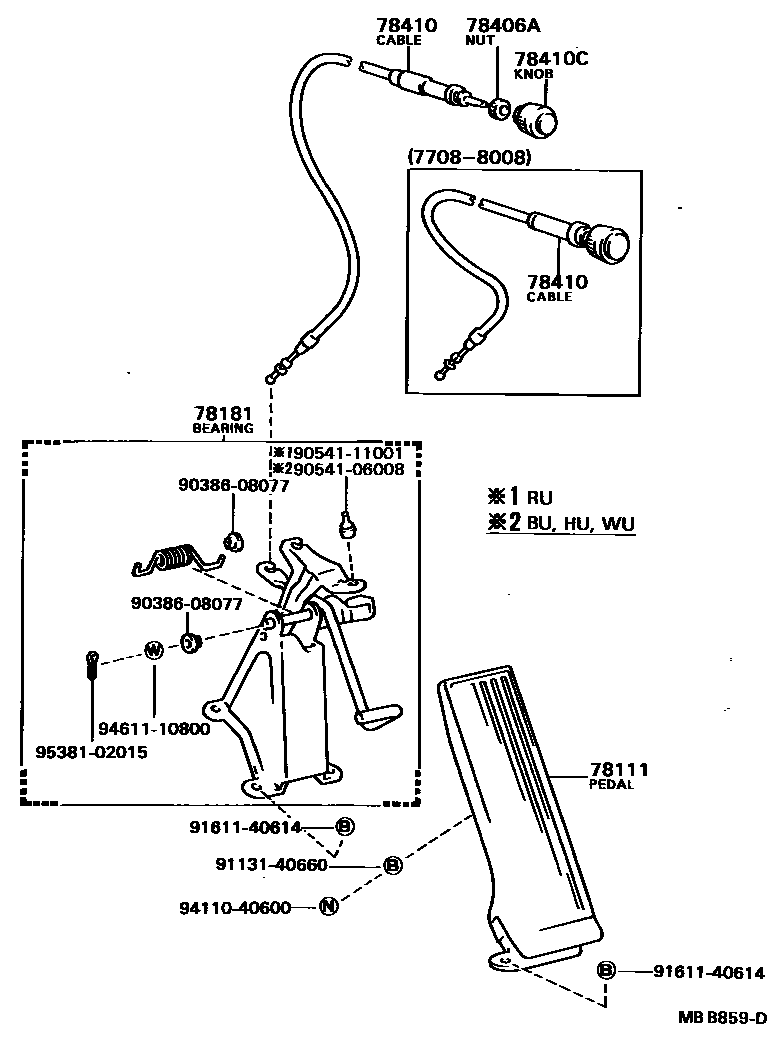

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1 0004 1

78111PEDAL, ACCELERATOR

main78110-95410iBU2#,3#,4#,5#197708-198408

78181BEARING, ACCELERATOR PEDAL ROD SUPPORT

main78180-95443iBU35,36198008-198204

sub78180-95449

main78180-95445iBU20..M50;BU30..20T;BU30..06S;BU2#..KKT,TSK;BU20..BTP..DSL;BU30..25T..ATP;BU20..TB..H50..CBU;BU20..TB..H50..20T..ATP197708-198204

main78180-95446iBU2#,30..H50;BU20..T3..03S..WT..ATP197708-197904

W/EXAUST BRAKE

main78180-95447iBU35,36,37,4#,5#198008-198401

W/EXAUST BRAKE

main78180-95448iBU37,4#,51198401-198408

78406ANUT, HOLDER (FOR THROTTLE BUTTON)

main78413-95A00iBU2#,3#,4#,5#198008-198408

78410CABLE ASSY, THROTTLE CONTROL

main78401-95402iBU2#,3#,4#,5#198008-198408

main78410-95404iBU2#,30197708-197904

78410CKNOB, THROTTLE CABLE

main78402-95400iBU2#,3#,4#,5#198008-198408

9038608077

main90386-08077

9054106008

main90541-06008

9054111001

main90541-11001

9113140660

main91131-40660

9161140614

main91611-40614

9411040600

main94110-40600

9461110800

main94611-10800

9538102015

main95381-02015

13 parts on this diagram · 3 diagrams in section
