Home › Toyota › DYNA › WINDSHIELD WIPER Toyota DYNA — WINDSHIELD WIPER 85070 MOTOR & BRACKET ASSY, FRONT WIPER
main 85070-37150 i WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA 200110-201106 85150B LINK ASSY, WIPER
main 85150-37110 i WU410,420,XZU404,412,414,420,422,424,430,434..RHD 200110-200609 main 85150-37130 i WU410,XZU412,414,422,424..LHD..5F 200110-201208 main 85150-37140 i WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA 200610-201106 85154 PACKING, FRONT WIPER SHAFT
main 85154-37030 i WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL 200110-201208 85211B ARM, FRONT WIPER, RH
main 85211-37110 i WU410,420,XZU404,412,414,420,422,424,430,434..RHD 200110-200609 main 85211-37130 i WU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL) 200110-201208 main 85211-37140 i WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA 200610-201106 85212A BLADE, FR WIPER, RH
main 85212-37080 i WU410,420,XZU404,41#,42#,43#..RHD 200110-200605 main 85212-37090 i BU410,420,WU410,XZU41#,422,424,434..LHD 200110-200605 main 85212-37091 i WU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL) 200606-201208 85214A RUBBER, WIPER, RH
main 85214-42020 i BU410,420,WU410,XZU41#,422,424,434..LHD 200110-200605 main 85214-53050 i WU410,420,XZU404,41#,42#,43#..RHD 200110-200605 85214B RUBBER, WIPER, LH
main 85214-24051 i XZU412,422..6F;WU410,420,XZU420,430..SA 200606-201208 main 85214-42020 i BU410,420,WU410,XZU41#,422,424,434..LHD 200110-200605 main 85214-53050 i WU410,420,XZU404,41#,42#,43#..RHD 200110-200605 85221B ARM, FRONT WIPER, LH
main 85221-37170 i WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA 200110-201106 85222A BLADE, FR WIPER, LH
main 85222-37140 i WU410,420,XZU404,41#,42#,43#..RHD 200110-200605 main 85222-37141 i WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA 200606-201106 main 85222-37150 i BU410,420,WU410,XZU41#,422,424,434..LHD 200110-200605 85292B CAP, FRONT WIPER ARM HEAD

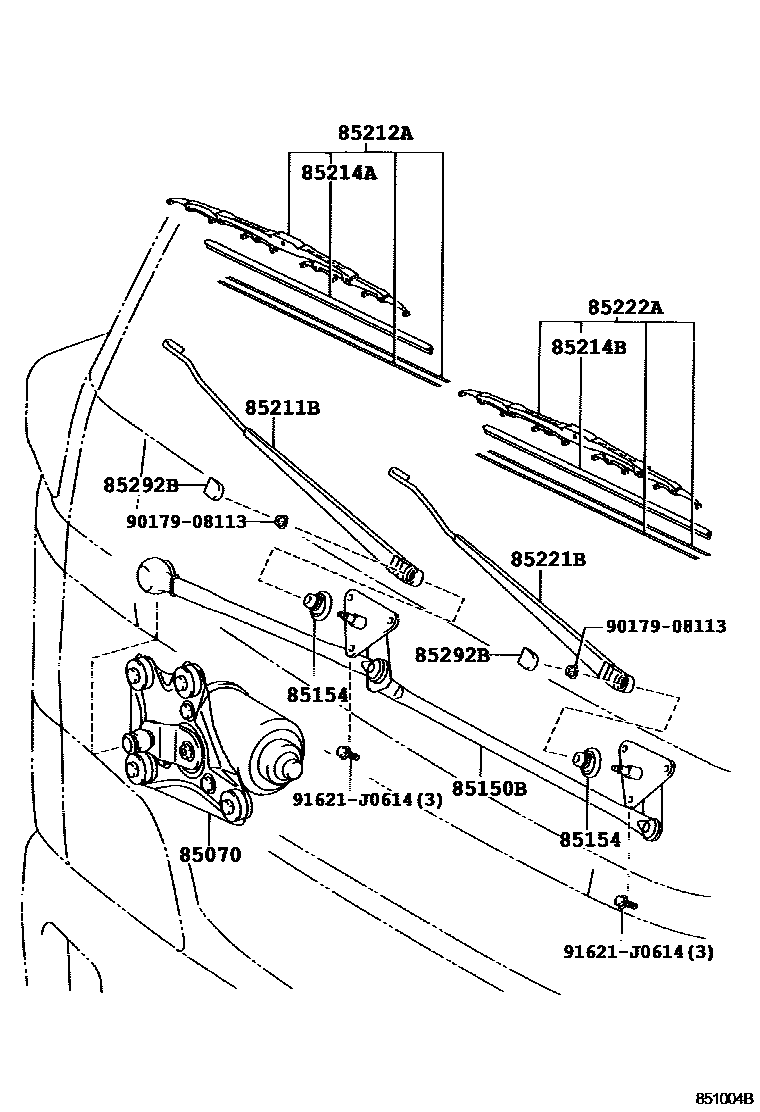

main 85192-12800 i XZU412,422..6F;WU410,420,XZU420,430..SA 200204-201208 12 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota DYNA This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota DYNA. Key components include: MOTOR & BRACKET ASSY, FRONT WIPER, LINK ASSY, WIPER, PACKING, FRONT WIPER SHAFT, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
