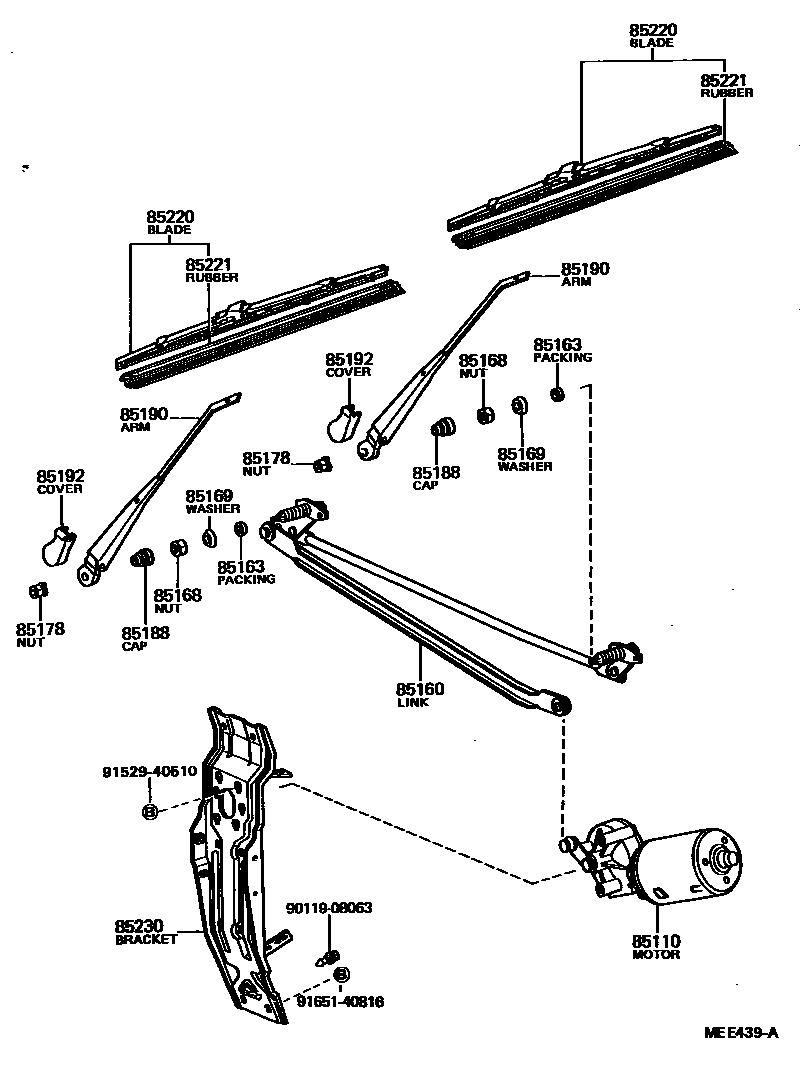

Toyota DYNA — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95417iBU20,30,HU30,RU2#,30..RHD197708-198008

12V

main85110-95419iBU2#,30,HU30,RU2#,30..LHD..GEN197708-198008

12V

main85110-95420iBU20,30,JU20..EUR197708-198008

24V

main85110-95425iBU20,30,32,HU30,RU20,30..RHD198008-198411

12V

main85110-95426iRU20,30..EUR198008-198408

12V

main85110-95427iBU20..ST..EUR;BU20,25,30..LHD..5H..WT198104-198408

24V

main85110-95428iBU36,40,HU40,50,WU40..RHD198204-198408

12V

main85110-95429iBU36,40,WU40,50..LHD198302-198408

12V

main85110-95430iBU40,WU40..LHD198302-198408

24V

85160LINK ASSY, WINDSHIELD WIPER

main85160-95405iBU20,30,32,HU30,RU2#,30..RHD197708-198411

main85160-95406iBU2#,30,31,32,HU30,JU20,RU2#,30..LHD197708-198408

main85160-95407iBU36,40,HU40,50,WU40..RHD198204-198408

main85160-95408iBU36,40,WU40,50..LHD198302-198408

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-95010×3iBU36,40,HU40,50,WU40,50198204-198408

main85185-95A00×2iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95010×3iBU36,40,HU40,50,WU40,50198204-198408

main90170-14004×2iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-95010×3iBU36,40,HU40,50,WU40,50198204-198408

main85169-95A00×2iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

85178NUT (FOR FRONT WIPER ARM SETTING)

main90099-05129×3iBU36,40,HU40,50,WU40198204-198408

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95010×3iBU36,40,HU40,50,WU40,50198204-198408

main85135-95A00×2iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

85190ARM ASSY, WINDSHIELD WIPER

main85190-95406×2iBU20,30,HU30,RU2#,30..RHD197708-198008

SILVER

main85190-95407×2iRU20..LHD..GEN;RU20..EUR..IV3;BU2#,30,HU30,JU20,RU25,30..LHD197708-198008

SILVER

main85190-95408×2iBU20,30,JU20,RU20,30..EUR197708-198008

BLACK

main85190-95409×2iBU20,30,32,HU30,RU20,30..RHD198008-198204

BLACK

main85190-95410iBU36,40,HU40,50,WU40..RHD198204-198408

NO.1

main85190-95411×2iBU36,40,HU40,50,WU40..RHD198204-198408

NO.2

main85190-95412iBU20,30,32,RU20,30..RHD198204-198411

RH

main85190-95413iBU2#,30,31,32,RU2#,30..LHD198204-198408

RH

main85190-95414iBU36,40,WU40,50..LHD198302-198408

NO.1

main85190-95415×2iBU36,40,WU40,50..LHD198302-198408

NO.2

main85210-95400iBU20,30,32,RU20,30..RHD198204-198411

LH

main85210-95401iBU2#,30,31,32,RU2#,30..LHD198204-198408

LH

85192COVER, WINDSHIELD WIPER ARM

main85195-95400×2iRU20..ARL,GEN;RU20..EUR..IV3;BU2#,30,HU30,JU20,RU25,30197708-198008

SILVER

main85195-95401×2iBU20,30,JU20,RU20..EUR197708-198008

BLACK

85220BLADE ASSY, WINDSHIELD WIPER

main85220-30110×2iBU25..IV3198008-198104

COLD SPEC

sub85220-20080

main85220-95405×2iBU20,30,JU20,RU20,30..EUR197708-198005

BLACK

main85220-95406×2iBU20,30,HU30,RU2#,30..RHD198005-198008

SILVER

main85220-95407×2iBU20,30,32,HU30,RU20,30..RHD198008-198204

BLACK

main85220-95408×2iRU20,30..LHD..GEN;BU2#,30,HU30,RU25..LHD198005-198008

SILVER

main85220-95409×2iBU20,30,RU20,30..EUR198005-198008

BLACK

main85220-95A00×2iRU30..TB..EUR;RU20,30..ARL,GEN;BU2#,30,HU30,JU20,RU25197708-198005

SILVER

main85220-95A05×3iBU36,40,HU40,50,WU40..RHD198204-198408

main85220-95A06×2iBU2#,30,31,32,RU2#,30..LHD198204-198408

85221BLADE, WINDSHIELD WIPER

main85221-95A00×2iBU2#,3#,HU30,JU20,RU2#,30197708-198204

sub85221-95700

main85221-95A01×3iBU36,40,HU40,50,WU40,50198204-198408

sub85221-14H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85109-95407iBU20,30,32,HU30,RU2#,30..RHD197708-198411

main85109-95408iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

main85109-95409iBU36,40,HU40,50,WU40..RHD198204-198408

9011908063

main90119-08063

9152940510

main91529-40510

9165140816

main91651-40816

15 parts on this diagram · 2 diagrams in section
