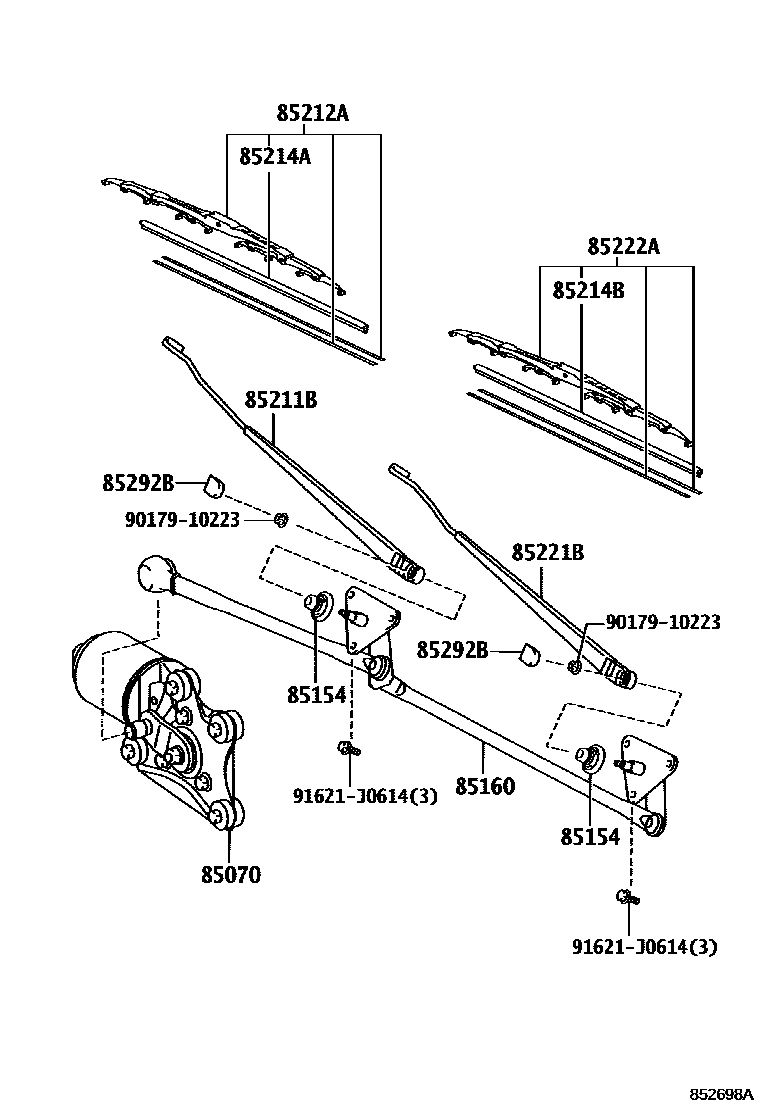

Toyota DYNA — WINDSHIELD WIPER

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-37391iWU600,650201107-201312

main85070-37392iWU600,650201401-201411

main85070-37393iWU600,650,XZU600,650201412-201709

main85070-37440iXZU600..GCC;WU600,650,XZU650201709-202005

85154PACKING, FRONT WIPER SHAFT

main85154-37030×2iXZU600..GCC;WU600,650,XZU650201107-202005

85160LINK ASSY, WINDSHIELD WIPER

main85150-37180iXZU600..GCC;WU600,650,XZU650201107-202005

85211BARM, FRONT WIPER, RH

main85211-37240iXZU600..GCC;WU600,650,XZU650201107-202005

main85211-37241iXZU600202012

85212ABLADE, FR WIPER, RH

main85212-37091iXZU600..GCC;WU600,650,XZU650201107-202005

85214ARUBBER, WIPER, RH

main85214-24051iXZU600..GCC;WU600,650,XZU650201107-202005

85214BRUBBER, WIPER, LH

main85214-24051iXZU600..GCC;WU600,650,XZU650201107-202005

85221BARM, FRONT WIPER, LH

main85221-37240iXZU600..GCC;WU600,650,XZU650201107-202005

main85221-37241iXZU600202012

85222ABLADE, FR WIPER, LH

main85222-37151iXZU600..GCC;WU600,650,XZU650201107-202005

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iXZU600..GCC;WU600,650,XZU650201107-202005

9017910223

main90179-10223

91621J0614

main91621-J0614

12 parts on this diagram · 1 diagram in section
