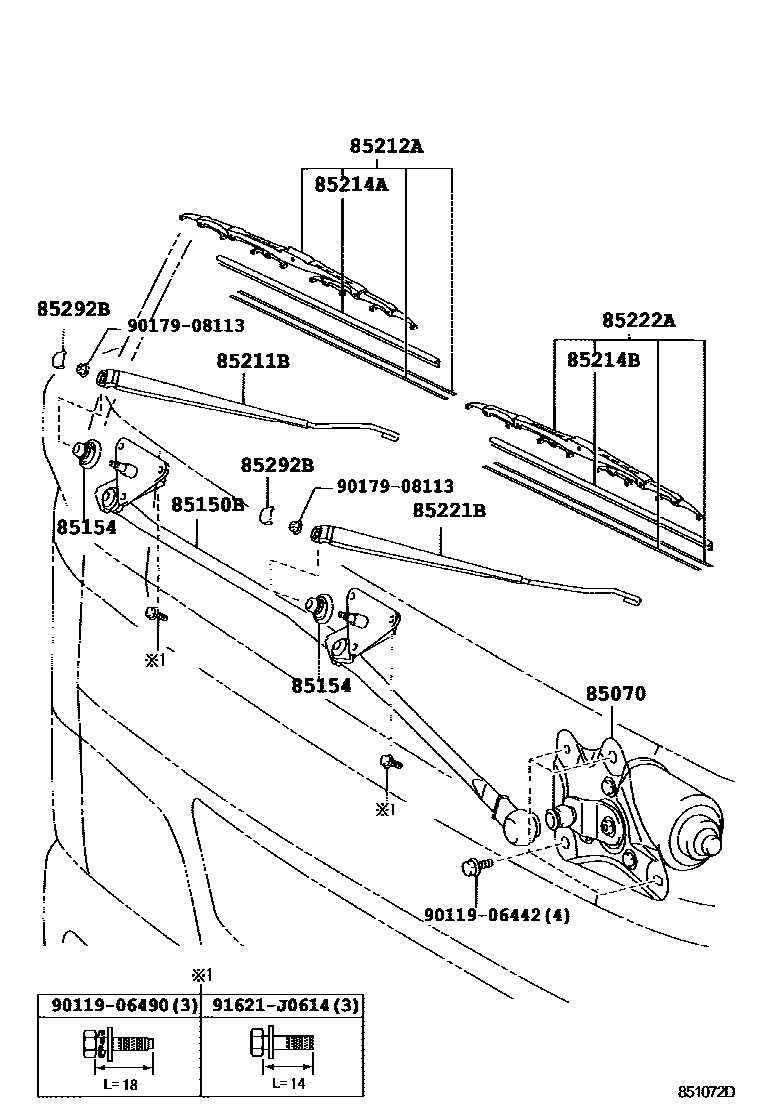

Toyota DYNA — WINDSHIELD WIPER

0001 1 0002 1

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-0W020iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main85070-0W030iXZU349..6F;XZU309..IV3202203

main85070-37130iXZU307,327,337,347200610-200901

main85070-37140iWU300,340..SA200610-200812

main85070-37220iBU303,343,WU300,340,XZU342..IDN200209-200502

85150BLINK ASSY, WIPER

main85150-0W040iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main85150-37090iBU303,343,WU300,340,XZU342..IDN200209-200502

main85150-37100iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

main85150-F1010iXZU349..5F;XZU309,359..IV8202203-202310

85154PACKING, FRONT WIPER SHAFT

main85154-37020iBU300,340200212-200312

DRIVER SIDE

main85154-37030×2iWU302,342,352..DCRTP,DCRTR200912

main85154-F1010×2iXZU349..5F;XZU309,359..IV8202203-202310

85211BARM, FRONT WIPER, RH

main85211-0W060iWU302,342,352..DCRTP,DCRTR200912

main85211-37070iBU300,340200212-200312

main85211-37100iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

main85211-YX010iBU303,343,WU300,340,XZU342..IDN200209-200612

85212ABLADE, FR WIPER, RH

main85212-0W060iWU302,342,352..DCRTP,DCRTR200912

main85212-37080iBU300,340200212-200312

main85212-37081iBU303,343,XZU305,345..RHD..(ARL,GEN)200606-200610

main85212-37090iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200605

main85212-37091iWU30#,34#..LHD200610-201106

main85212-YX010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

85214ARUBBER, WIPER, RH

main85214-0K040iXZU349..6F;XZU309..IV3202203

main85214-24051iWU30#,34#..GCC,GEN200610-201106

main85214-42020iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200605

main85214-53050iBU303,343,WU300,340,XZU305,345..RHD..(ARL,GEN,SA)200212-200605

sub85214-24050

main85214-YX010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

85214BRUBBER, WIPER, LH

main85214-0K040iXZU349..6F;XZU309..IV3202203

main85214-24051iWU30#,34#..GCC,GEN200610-201106

main85214-42020iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200605

main85214-53050iBU303,343,WU300,340,XZU305,345..RHD..(ARL,GEN,SA)200212-200605

sub85214-24050

main85214-YX010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

85221BARM, FRONT WIPER, LH

main85221-0W060iXZU349..6F;XZU309..IV3202203

main85221-37150iWU300,340..SA200610-200812

main85221-37160iWU30#,34#..LHD200610-201106

main85221-YX010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

85222ABLADE, FR WIPER, LH

main85222-0K010iXZU349..5F;XZU309,359..IV8202203-202310

main85222-37140iBU300,340200212-200312

main85222-37141iWU340..RHD..CBU200610-201106

main85222-37150iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200605

main85222-37151iBU303,343,WU300,340,XZU300,320,330,340..LHD200606-200610

main85222-YX010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

85292BCAP, FRONT WIPER ARM HEAD

main85192-12800×2iBU300,340200212-200312

main85292-16010×2iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

9011906442

main90119-06442

9011906490

main90119-06490

9017908113

main90179-08113

91621J0614

main91621-J0614

14 parts on this diagram · 2 diagrams in section
