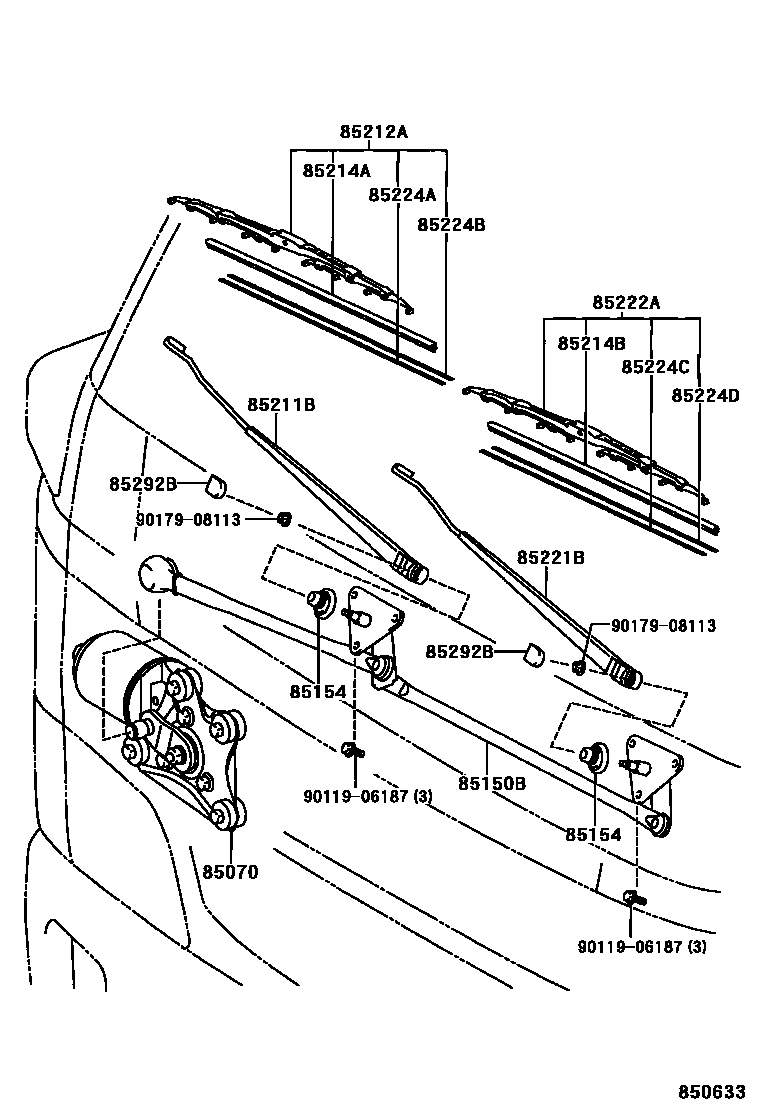

Toyota DYNA — WINDSHIELD WIPER
85070MOTOR & BRACKET ASSY, FRONT WIPER
COLD SPEC
85150BLINK ASSY, WIPER
85154PACKING, FRONT WIPER SHAFT
DRIVER SIDE
PASSENGER SIDE
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85292BCAP, FRONT WIPER ARM HEAD
9011906187
main90119-06187
9017908113
main90179-08113
16 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota DYNA
This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota DYNA. Key components include: MOTOR & BRACKET ASSY, FRONT WIPER, LINK ASSY, WIPER, PACKING, FRONT WIPER SHAFT, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
