Toyota DYNA — WINDSHIELD WASHER

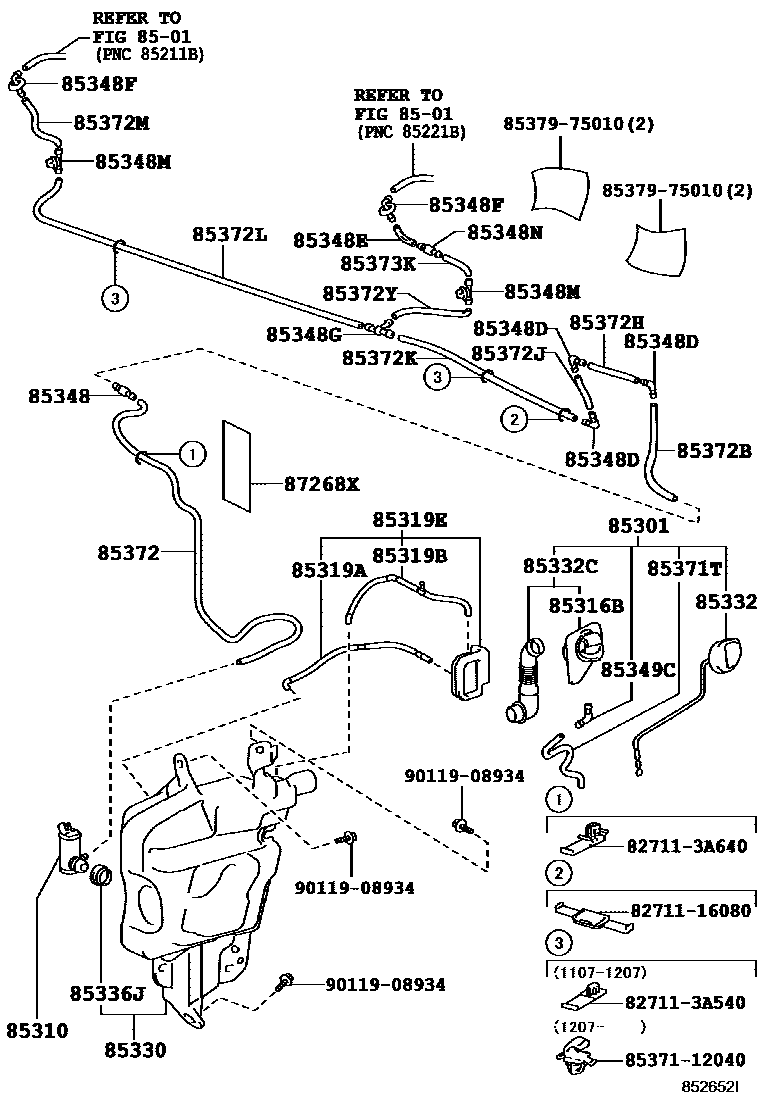

Parts diagram
8501WINDSHIELD WIPER
→ Go to FIG 85-01
85301INLET SUB-ASSY, WASHER
main85301-37022i201107-201611
main85301-37042i201107-202005
main85301-37070i201611-202005
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-90B00i201107-202005
85316BCAP, WASHER, INLET
main85386-37010i201107-202005
main85386-37030i201107-202005
85319AHOSE, INLET
main85319-37200i201107-202005
85319BHOSE, WINDOW WASHER
main85319-37150i201107-202005
main85319-37190i201107-202005
85319EINLET WASHER
main85318-37150i201107-202005
main85318-37190i201107-202005
85330JAR ASSY, WINDSHIELD WASHER
main85315-37150i201107-202005
main85315-37190i201107-202005
85332CAP, WINDSHIELD WASHER JAR
main85332-37061i201107-202005
main85332-37071i201107-202005
85332CCAP, FRONT WASHER TANK
main85386-37020i201107-201611
main85386-37040i201107-202005
main85386-37070i201611-202005
85336JPROTECTOR, WASHER JAR
main90099-32089i201107-202005
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-12520i201107-202005
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-20200i201107-201304
main85375-33070i201304-202005
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-14481i201107-202005
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
mainS853531020i201107-202005
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85348-12250i201304-202005
main85375-28110i201107-201304
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85375-17050i201107-202005
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85375-12520i201107-202005
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122i201412-202005
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
main85377-50110i201107-202005
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
main90446-06013i201107-202005
L=130
main90446-06013i201911-202005
L=130,CKD PACKAGE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080i201107-202005
L=1450(*H,L=630)
main90099-33080i201306-201512
L=1450(*H,L=610)
main90099-33080i201605-202005
L=1450(*H,L=450)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i201107-201412
L=1450(*H,L=160)
main90099-33080i201306-201412
L=1450(*H,L=55)
main90446-07001i201412-202005
L=1800(*H,L=35)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90446-07001i201107-202005
L=1800(*H,L=80)
main90446-07001i201306-202005
L=1800(*H,L=420)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90446-07001i201306-202005
L=1800(*H,L=1020)
main90446-07001i201107-202005
L=1800(*H,L=40)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
main90099-33080i201304-202005
L=1450(*H,L=75)
main90099-33299i201107-201304
L=1000(*H,L=35)
main90446-07001i201107-201304
L=1800(*H,L=620)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
main90446-07001i201306-201512
L=1800
main90446-07001i201605-202005
L=1800(*H,L=160)
main90446-07001i201107-202005
L=1800(*H,L=930)
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
main90099-33080i201107-201304
L=1450(*H,L=75)
main90099-33299i201304-202005
L=1000(*H,L=35)
85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
main90099-33080i201507-202005
main90446-07001i201107-201304
85373KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9
main90099-33299i201107-201304
L=1000(*H,L=35)
87268XPROTECTOR
main87268-37110i201107-202005
8271116080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16080
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
8537975010JOINT
main85379-75010
9011908934
main90119-08934

37 parts on this diagram · 10 diagrams in section

WINDSHIELD WASHER for Toyota DYNA

This section contains 43 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota DYNA. Key components include: WINDSHIELD WIPER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET, HOSE, INLET.
