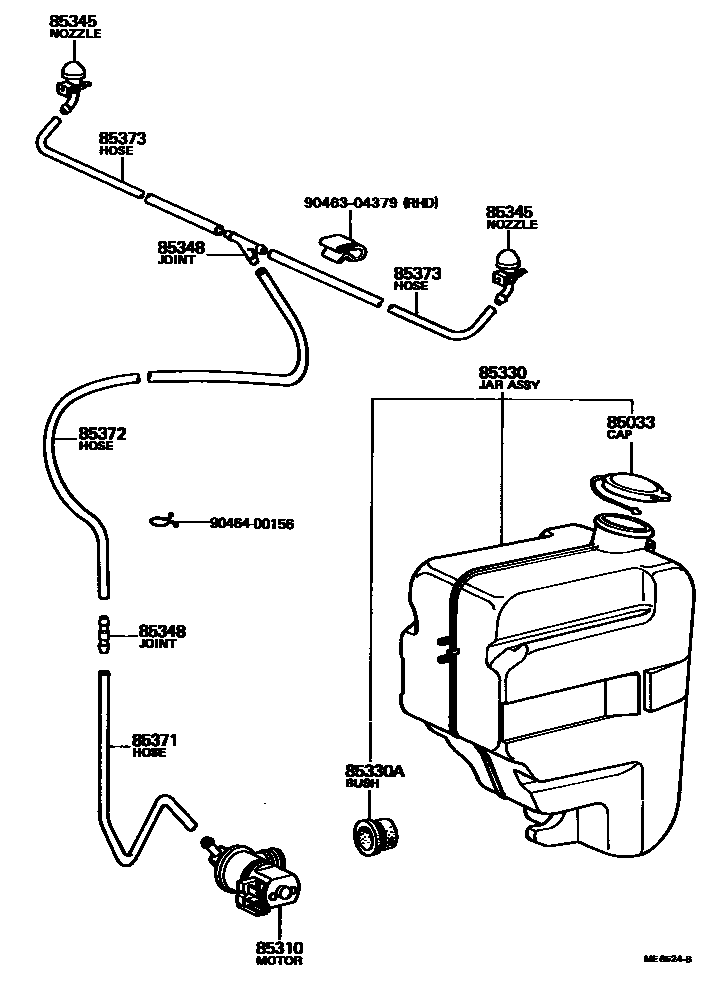

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iRU20,30;BU2#,3#,40,HU30,40,50,RU25,WU40,50..ARL,GEN,GHI197708-198411

12V

sub85310-22080

main85310-25010iBU20,30,JU20..EUR197708-198104

24V

sub85310-90B00

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

85345NOZZLE, WINDSHIELD WASHER

main85035-95400×2iBU20,30..EUR198008-198104

main85035-95401×2iRU20,30;BU2#,30,31,32,HU30,RU25..ARL,GEN,GHI198008-198411

12V

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011×2iBU40,HU40,50,WU40,50198204-198408

3 WAY

sub85375-89141

main85355-87201iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198408

2 WAY

sub85349-89122

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33316iBU2#,30,HU30,JU20,RU2#,30197708-197912

L=1000(*H,L=200)

main90446-06013iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50197912-198411

L=1000(*H,L=200)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33320iBU2#,30,HU30,JU20,RU2#,30197708-197912

L=1000(*H,L=800)

main90446-06013iBU36,40,HU40,50,WU40,50198204-198408

L=1000(*H,L=140)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33314iBU2#,30,HU30,JU20,RU2#,30197708-197912

L=1000(*H,L=140)

main90099-33320iBU2#,30,HU30,JU20,RU2#,30197708-197912

L=1000(*H,L=800)

main90446-06013×2iBU36,40,HU40,50,WU40,50198204-198408

L=650

9046304379

main90463-04379

9046400156

main90464-00156

11 parts on this diagram · 2 diagrams in section
