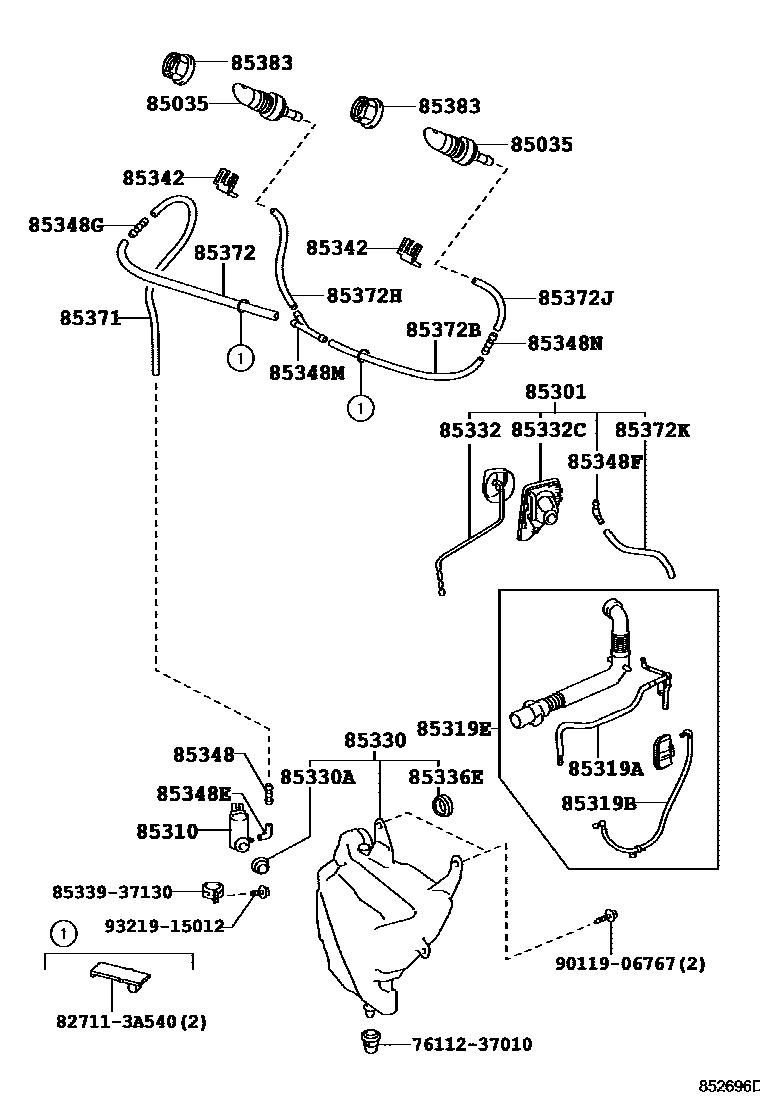

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-37030×2iXZU600..GCC;WU600,650,XZU650201107-202005

85301INLET SUB-ASSY, WASHER

main85301-37032iWU600,650201107-201408

main85301-37060iXZU600..GCC;WU600,650,XZU650201408-202005

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-90B00iXZU600..GCC;WU600,650,XZU650201107-202005

85319AHOSE, INLET

main85318-37160iWU600,650201107-201408

main85318-37250iXZU600..GCC;WU600,650,XZU650201408-202005

85319BHOSE, WINDOW WASHER

main85319-37180iXZU600..GCC;WU600,650,XZU650201107-202005

85319EINLET WASHER

main85319-37160iWU600,650201107-201408

main85319-37250iXZU600..GCC;WU600,650,XZU650201408-202005

85330JAR ASSY, WINDSHIELD WASHER

main85315-37160iXZU600..GCC;WU600,650,XZU650201107-202005

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iXZU600..GCC;WU600,650,XZU650201107-202005

85332CAP, WINDSHIELD WASHER JAR

main85332-37051iXZU600..GCC;WU600,650,XZU650201107-202005

85332CCAP, FRONT WASHER TANK

main85386-37030iWU600,650201107-201408

main85386-37060iXZU600..GCC;WU600,650,XZU650201408-202005

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iXZU600..GCC;WU600,650,XZU650201107-202005

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iXZU600..GCC;WU600,650,XZU650201107-202005

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iXZU600..GCC;WU600,650,XZU650201107-202005

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iXZU600..GCC;WU600,650,XZU650201107-202005

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85377-50110iWU600,650201107-201408

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iXZU600..GCC;WU600,650,XZU650201107-202005

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iXZU600..GCC;WU600,650,XZU650201107-202005

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iXZU600..GCC;WU600,650,XZU650201107-202005

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iXZU600..GCC;WU600,650,XZU650201107-202005

L=1800(*H,L=660)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iXZU600..GCC;WU600,650,XZU650201107-202005

L=1450(*H,L=220)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013iXZU600..GEN201911

L=1000(*H,L=460)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iXZU600..GCC;WU600,650,XZU650201107-202005

L=1450(*H,L=190)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iXZU600..GEN201911

L=1450(*H,L=130)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33299iXZU600..GCC;WU600,650,XZU650201408-202005

L=1000(*H,L=180)

main90446-06013iWU600,650201107-201408

L=130

85383HOLDER, FRONT WASHER NOZZLE

main85383-37010×2iXZU600..GCC;WU600,650,XZU650201107-202005

7611237010

main76112-37010

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8533937130CAP SUB-ASSY, RESERVE TANK

main85339-37130

9011906767

main90119-06767

9321915012

main93219-15012

30 parts on this diagram · 2 diagrams in section
