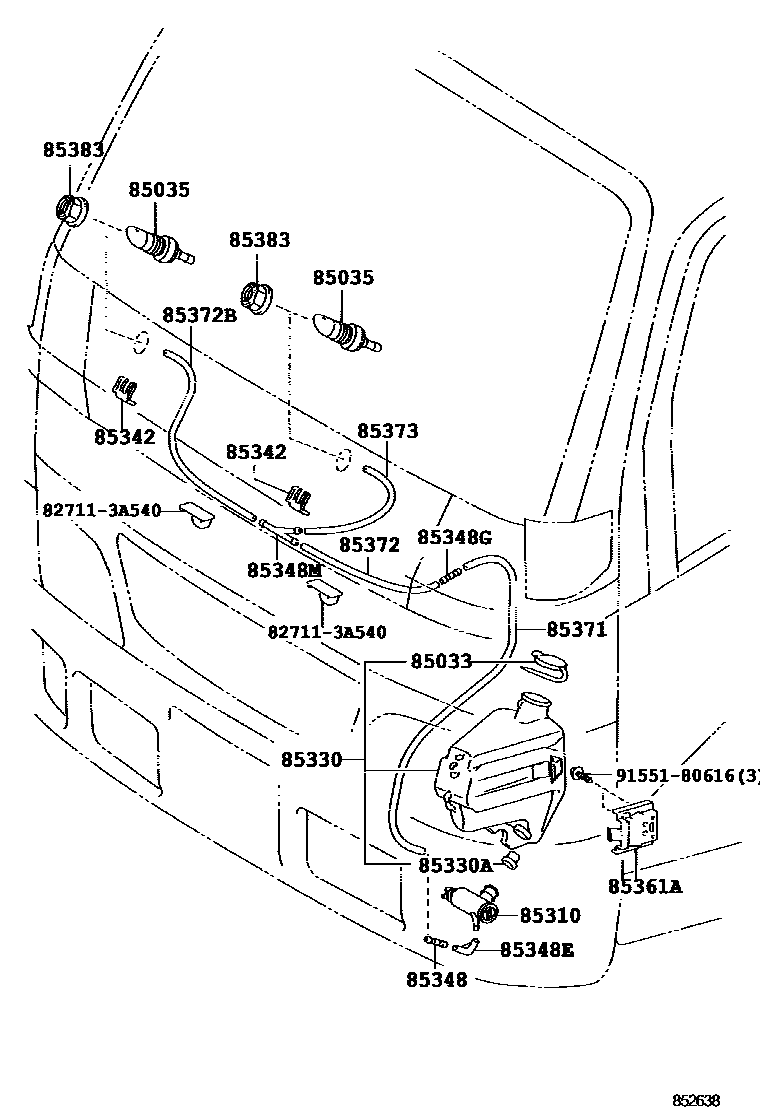

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main85301-17010iXZU307,327,337,347200610-200901

main85316-0W030iXZU349..5F;XZU309,359..IV8202203-202310

85035NOZZLE SUB-ASSY, WASHER

main85381-0W010×2iWU302,342,352..DCRTP,DCRTR200912

main85381-37030×2iXZU349..6F;XZU309..IV3202203

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iWU302,342..DCRTP,DCRTR200912-201308

main85310-90B00iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

main85330-0W010iWU302,342201308-201312

main85330-0W020iWU302,342,352201312

85330JAR ASSY, WINDSHIELD WASHER

main85315-25040iXZU349..6F;XZU309..IV3202203

main85315-37090iWU300,340..SA200212-200802

main85315-37100iXZU307,327,337,347200610-200901

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBU303,343,WU300,340,XZU342..IDN200209-200612

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iWU300,340..SA200209-200802

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iWU302,342,352..DCRTP,DCRTR200912

main85376-46040iWU300,340..SA200410-200802

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iBU300,340200209-200312

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iWU340..RHD..CBU200610-201106

main85376-46040iBU303,343,WU300,340,XZU342..IDN200209-200612

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-0W010iWU302,342..DCRTP,DCRTR200912-201006

main85361-0W011iWU302,342,352..IDN201007

main85362-37050iWU340..RHD..CBU200705-201106

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

L=1000(*H,L=920)

main90446-07001iWU340..RHD..CBU200610-201106

L=1800(*H,L=720)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iBU300,340200212-200312

L=1450(*H,L=220)

main90446-06013iWU302,342,352..DCRTP,DCRTR200912

L=1000

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-59303iXZU349..5F;XZU309,359..IV8202203-202310

L=600

main90446-06013iWU300,340..SA200610-200812

L=1000(*H,L=460)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iXZU307,327,337,347200610-200901

L=1450(*H,L=130)

main90099-59304iBU303,343,WU300,340,XZU342..IDN200209-200612

L=190

85383HOLDER, FRONT WASHER NOZZLE

main85383-0W010×2iWU302,342,352..DCRTP,DCRTR200912

main85383-37010×2iWU30#,34#..GCC,GEN200610-201106

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

9155180616

main91551-80616

18 parts on this diagram · 2 diagrams in section
