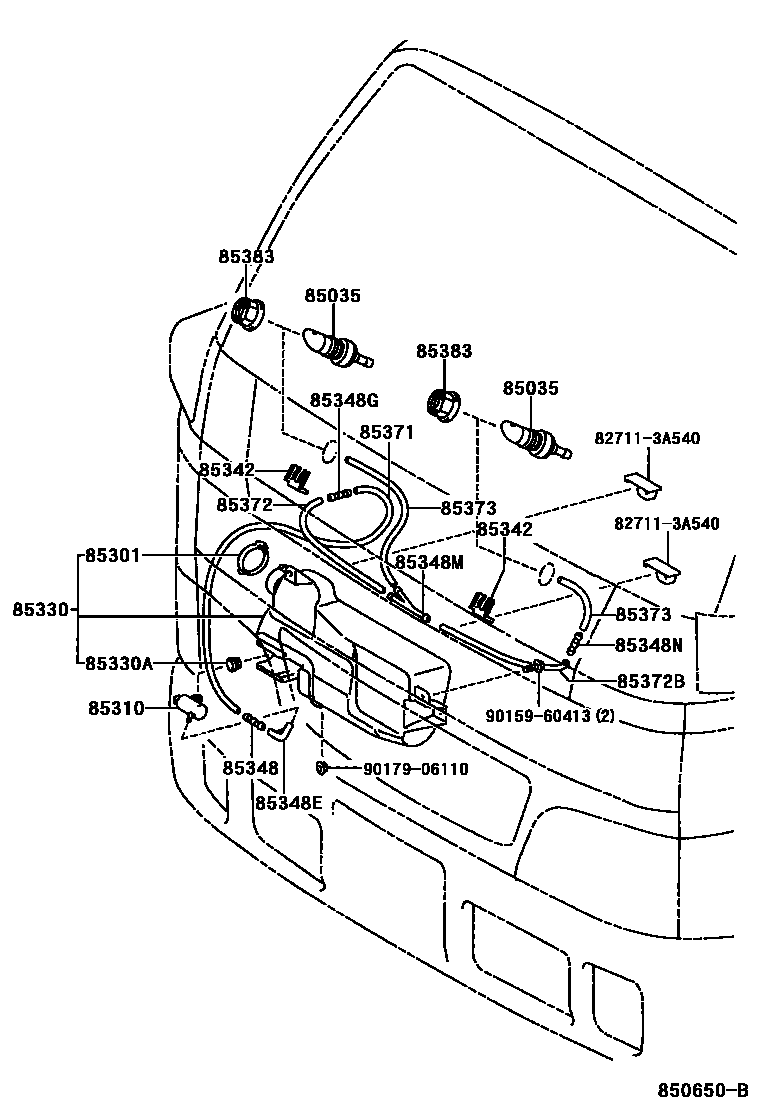

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-37030×2iXZU30#,320,330,34#199907-200212

85301INLET SUB-ASSY, WASHER

main85301-17010iXZU30#,320,330,34#199907-200212

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-90B00iXZU30#,320,330,34#199907-200212

85330JAR ASSY, WINDSHIELD WASHER

main85315-37090iXZU302,307,342200010-200206

main85315-37100iXZU300,320,330,340199907-200212

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iXZU30#,320,330,34#199907-200212

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iXZU30#,320,330,34#199907-200212

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iXZU30#,320,330,34#199907-200212

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iXZU30#,320,330,34#199907-200212

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-46040iXZU30#,320,330,34#199907-200212

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iXZU30#,320,330,34#199907-200212

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iXZU30#,342..20T200010-200212

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iXZU302,307,342200010-200206

L=1800(*H,L=720)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iXZU30#,320,330,34#199907-200212

L=1450(*H,L=220)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013iXZU300,320,330,340200003-200010

L=1000(*H,L=500)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iXZU300,320,330,340199907-200003

L=1450(*H,L=600)

85383HOLDER, FRONT WASHER NOZZLE

main85383-37010×2iXZU30#,320,330,34#199907-200212

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

9015960413

main90159-60413

9017906110

main90179-06110

19 parts on this diagram · 2 diagrams in section
