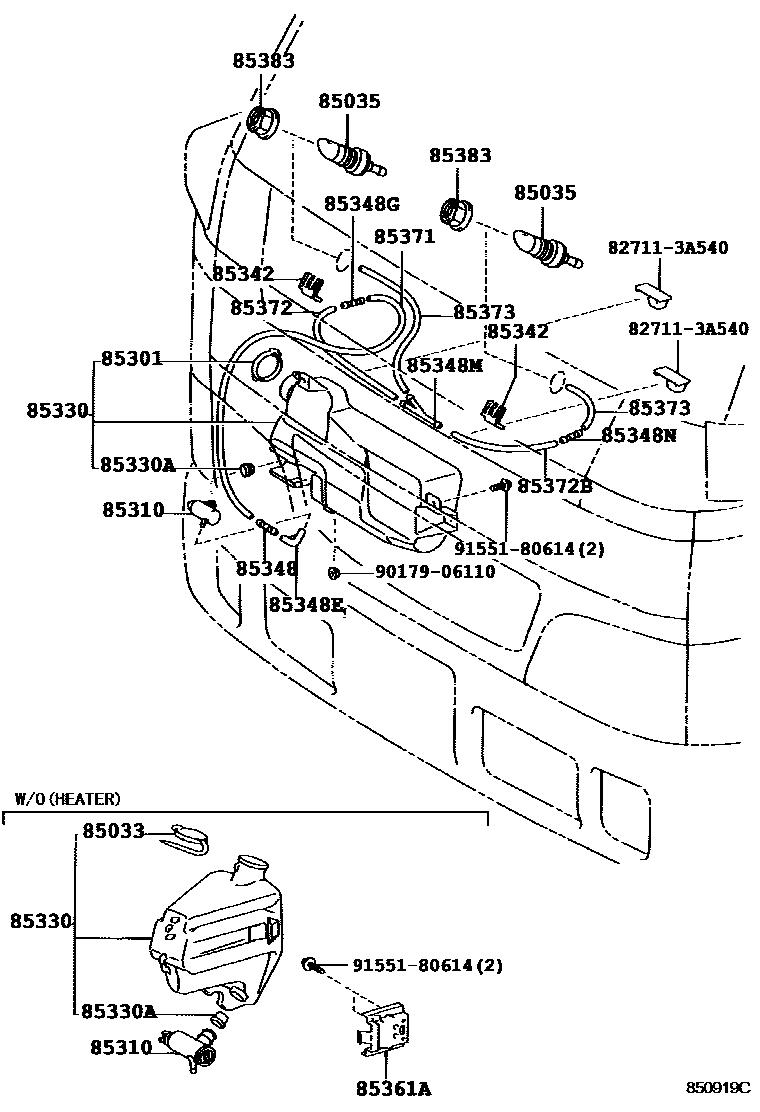

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iKDY221,231,LY235..GEN200107-201610

85035NOZZLE SUB-ASSY, WASHER

main85381-37030×2iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

85301INLET SUB-ASSY, WASHER

main85301-17010iLY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-201610

main85301-37050iKDY221,231,LY23#..RHD201610-202111

main85301-37060iLY235..LHD201610

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

85330JAR ASSY, WINDSHIELD WASHER

main85315-25040iKDY221,231,LY225,235..GEN200107-201610

W/O(HEATER)

main85315-25050iKDY221,231,LY23#..RHD201610-202111

main85315-37090iKDY221..RHD..IV3200610-201502

main85315-37100iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

W(HEATER)

main85315-37160iLY235..LHD201610

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKDY221,231,LY23#..RHD201610-202111

main85376-46040iKDY22#,23#,25#,LY22#,23#..RHD200410-201610

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iLY235..LHD201610

main85376-46040iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-25060iLY225,235200107-200502

main85361-25080iLY225200503-201609

W(HEATER)

main85362-37050iLY225..RHD200705-201609

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iKDY22#,23#,25#,LY22#,23#..RHD200107-202111

L=1800(*H,L=720)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

L=1450(*H,L=220)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

L=1000(*H,L=460)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

L=1450(*H,L=190),NO.1,NO.2

85383HOLDER, FRONT WASHER NOZZLE

main85383-37010×2iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

9017906110

main90179-06110

9155180614

main91551-80614

21 parts on this diagram · 4 diagrams in section
