Toyota DYNA — VENTURI

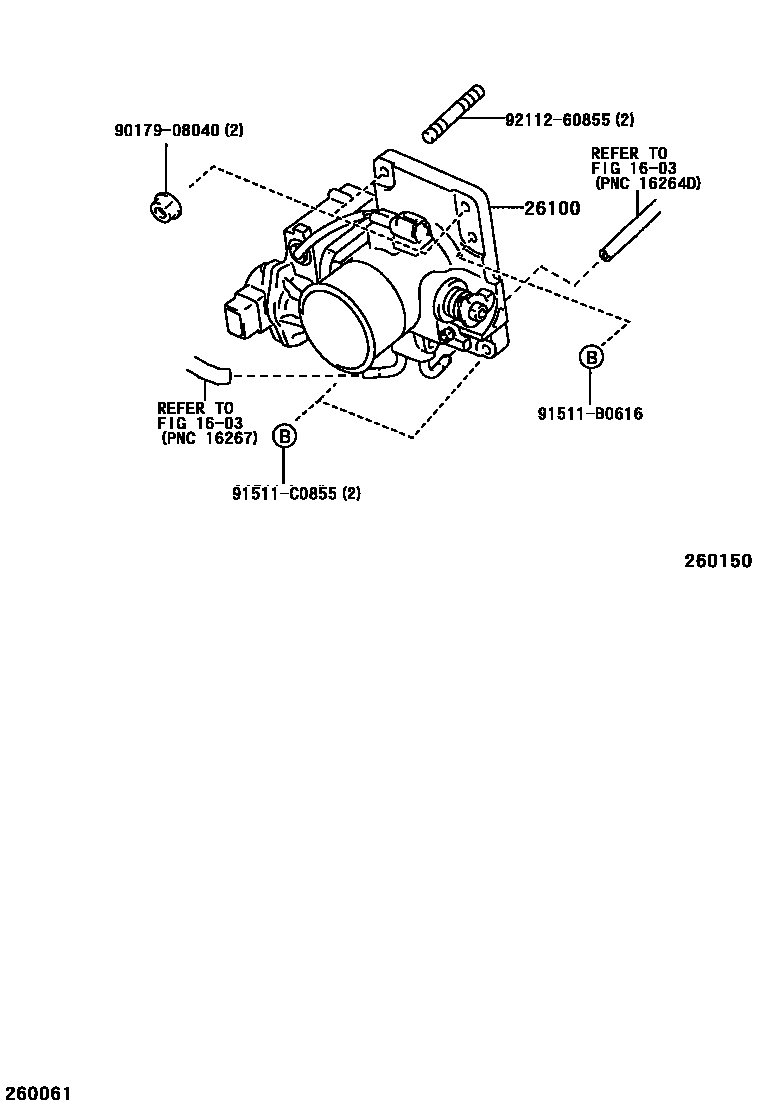

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

26100VENTURI ASSY

main26100-58210i200411-200701

main26100-78040i200212-200610

main26100-78061i200608-200705

main26100-78081i200701

main26100-78100i200705-200708

9017908040

main90179-08040

91511B0616

main91511-B0616

91511C0855

main91511-C0855

9211260855

main92112-60855

6 parts on this diagram · 3 diagrams in section

VENTURI for Toyota DYNA

This section contains 10 genuine Toyota parts for the VENTURI system of the Toyota DYNA. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, VENTURI ASSY.
