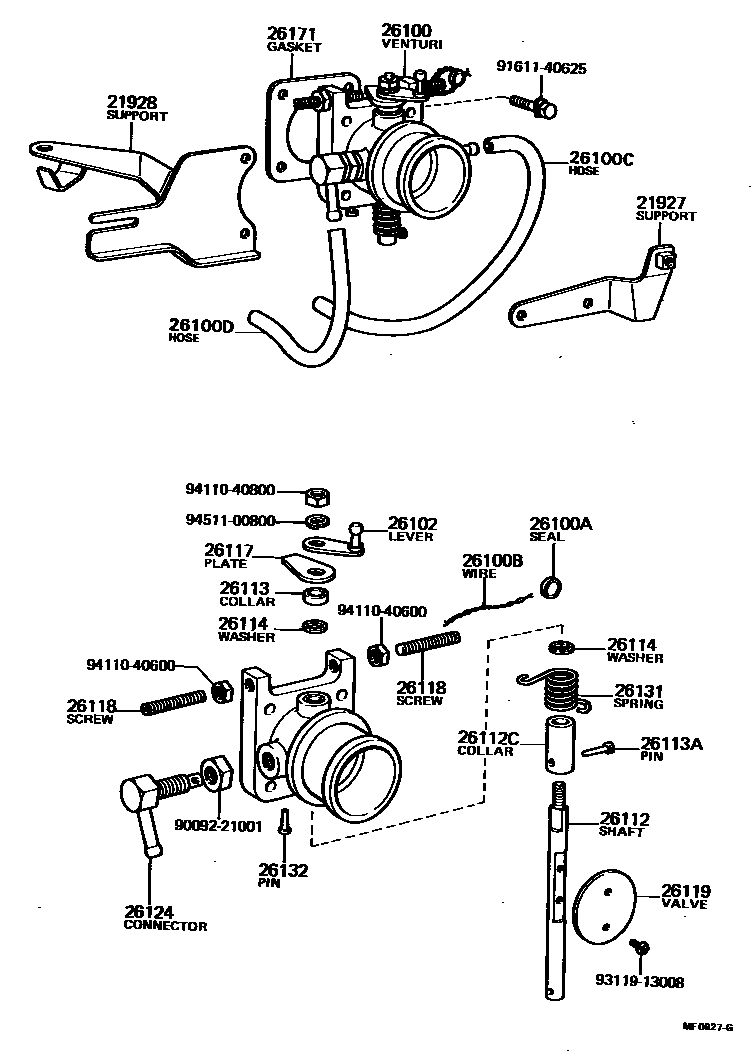

Toyota DYNA — VENTURI
21927SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK)
W/O EDIC
W/O EDIC
21928SUPPORT, THROTTLE WIRE
W/EDIC
W/O EDIC
W/EDIC
W/O EDIC
26100VENTURI ASSY
26100ASEAL, LEAD
26100BWIRE, SEAL
26100CHOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
26100DHOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
26102LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26112SHAFT, VENTURI THROTTLE VALVE
26112CCOLLAR, ADJUSTING
26113COLLAR, THROTTLE VALVE SHAFT
NO.1
NO.2
26113APIN, THROTTLE VALVE SHAFT
26114WASHER, THROTTLE VALVE SHAFT ADJUSTING
T=0.1,T=0.1
T=0.2,T=0.2
T=0.5,T=0.5
26117PLATE, THROTTLE VALVE SHAFT STOP
26118SCREW, STOP PLATE ADJUSTING
NO.1
26119VALVE, VENTURI THROTTLE
26124CONNECTOR, VENTURI PIPE
26131SPRING, RETURN
NO.2
NO.1
26132PIN
26171GASKET, VENTURI
9009221001
main90092-21001
9161140625
main91611-40625
9311913008
main93119-13008
9411040600
main94110-40600
9411040800
main94110-40800
9451100800
main94511-00800
26 parts on this diagram · 5 diagrams in section
VENTURI for Toyota DYNA
This section contains 42 genuine Toyota parts for the VENTURI system of the Toyota DYNA. Key components include: BELLCRANK, CHOKE ROD(FOR VENTURI), ROD, ACCELERATOR CONNECTING(FOR VENTURI), SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK), SUPPORT, THROTTLE WIRE, VENTURI ASSY.
