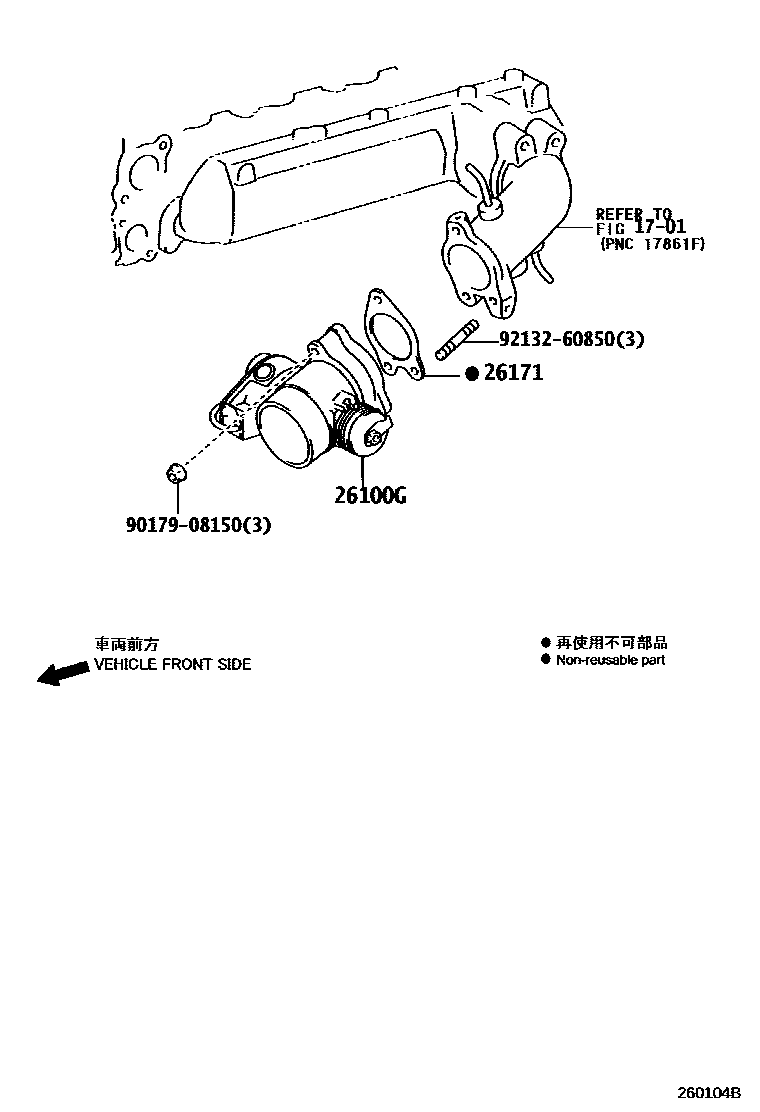

Toyota DYNA — VENTURI

0001 1 0002 1 0004 1

1701MANIFOLD

→ Go to FIG 17-01

26100GBODY ASSY, DIESEL THROTTLE

main26100-30020i2KDFTV..KDY220,230,250,260200108-200610

main26100-30060i1KDFTV..KDY221,231,251,261..EUR200609-201310

main26100-30080i1KDFTV..KDY221,231,251,261..EUR201109

26171GASKET, VENTURI

main26171-30011i2KDFTV..KDY220,230,250,260200108-200210

main26171-30012i2KDFTV..KDY220,230,250,260200210-200403

main26171-30013i2KDFTV..KDY220,230,250,260200403-200610

main26171-30020i1KDFTV..KDY221,231,251,261200609

9017908150

main90179-08150

9213260850

main92132-60850

5 parts on this diagram · 3 diagrams in section
