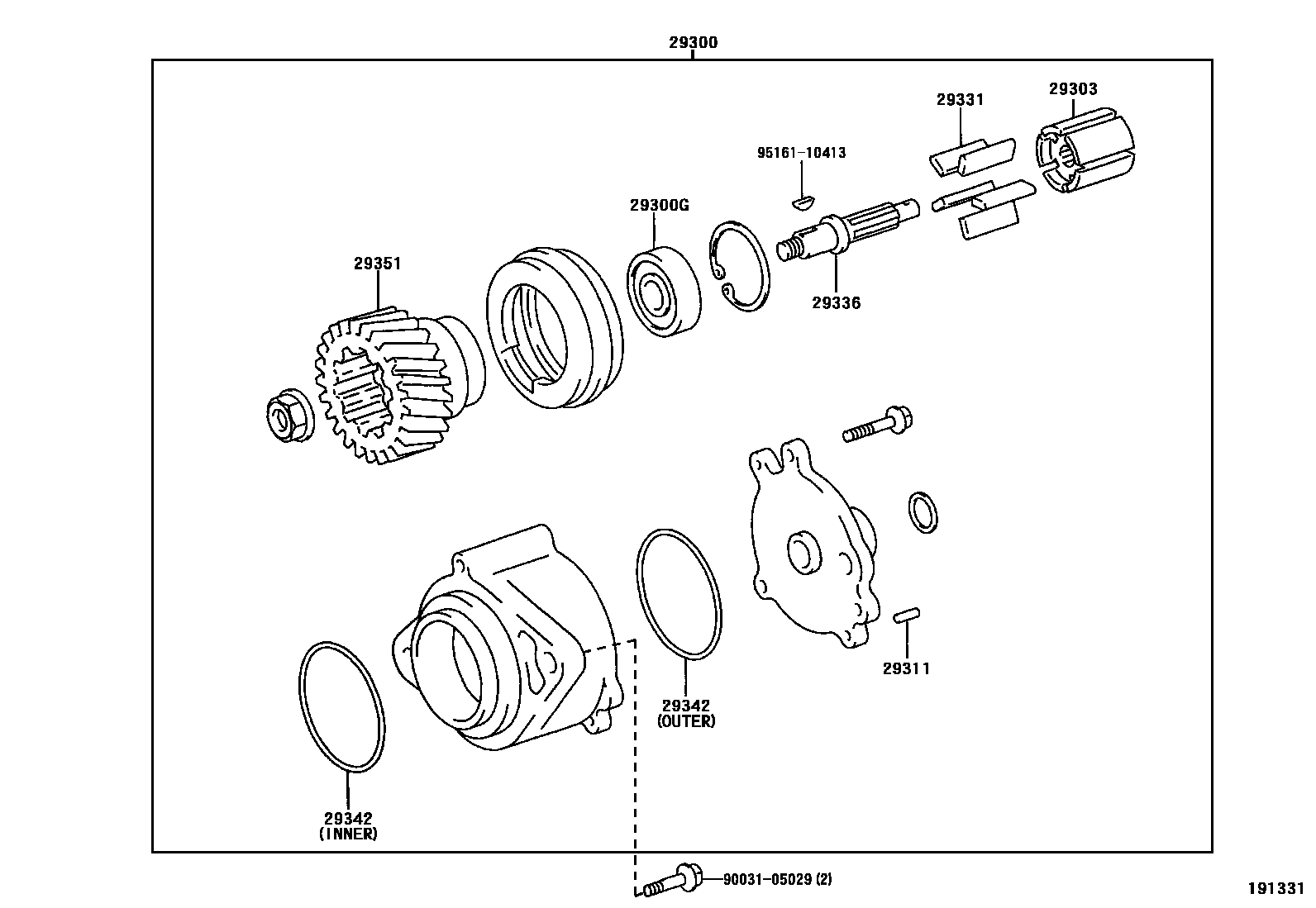

Toyota DYNA — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-78050i200010-200206

29300GBEARING, BALL

main90099-10185i200010-200206

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i200010-200206

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i200010-200206

29331BLADE, VACUUM PUMP, A

main29331-67020×5i200010-200206

29336SHAFT, VACUUM PUMP

main29336-58050i200010-200206

29342PACKING, VACUUM PUMP

main29342-17010i200010-200206

OUTER

main29342-58010i200010-200206

INNER

29351GEAR, VACUUM PUMP

main29351-89101i200010-200206

9003105029

main90031-05029

9516110413

main95161-10413

10 parts on this diagram · 1 diagram in section

VACUUM PUMP for Toyota DYNA

This section contains 10 genuine Toyota parts for the VACUUM PUMP system of the Toyota DYNA. Key components include: PUMP ASSY, VACUUM, BEARING, BALL, ROTOR SUB-ASSY, VACUUM PUMP, PIN, VACUUM PUMP DOWEL, NO.1, BLADE, VACUUM PUMP, A.
