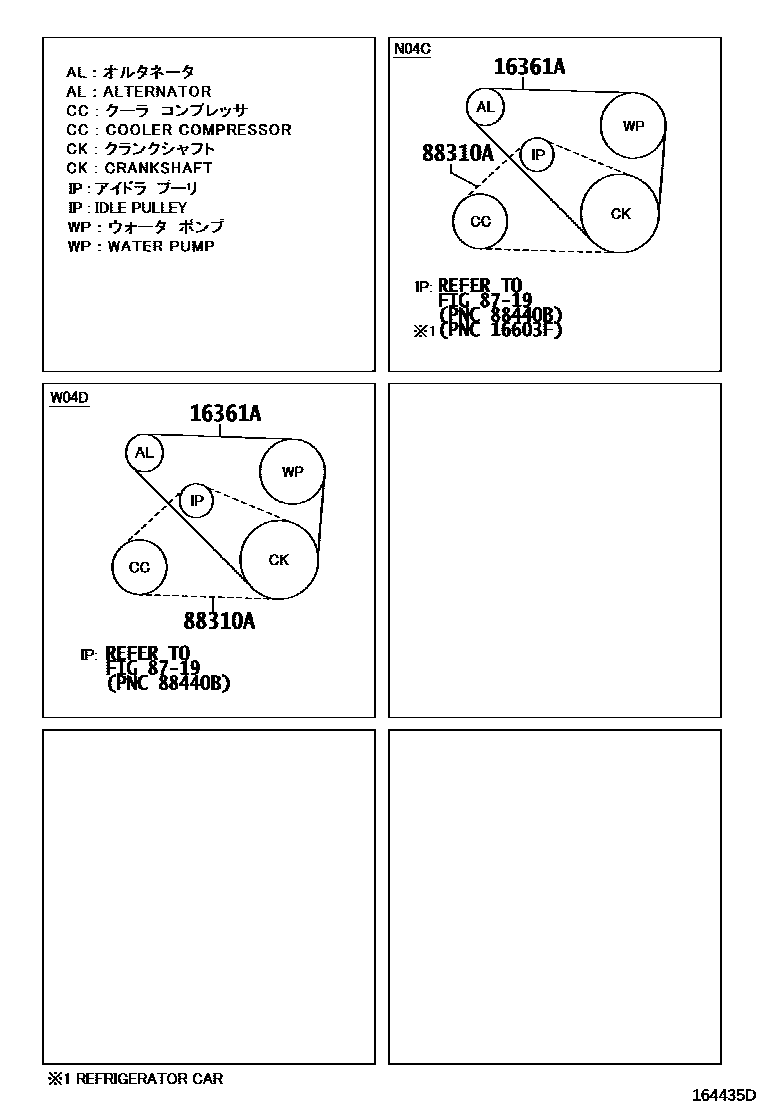

Toyota DYNA — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02773i201911

mainSZ91045322i201107-202005

mainSZ91049326i201107-201512

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02594i201605-202005

L=975

mainS883811440i201306-202005

L=1010

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota DYNA

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota DYNA. Key components include: BELT, V(FOR FAN & ALTERNATOR), HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
