Toyota DYNA — V-BELT

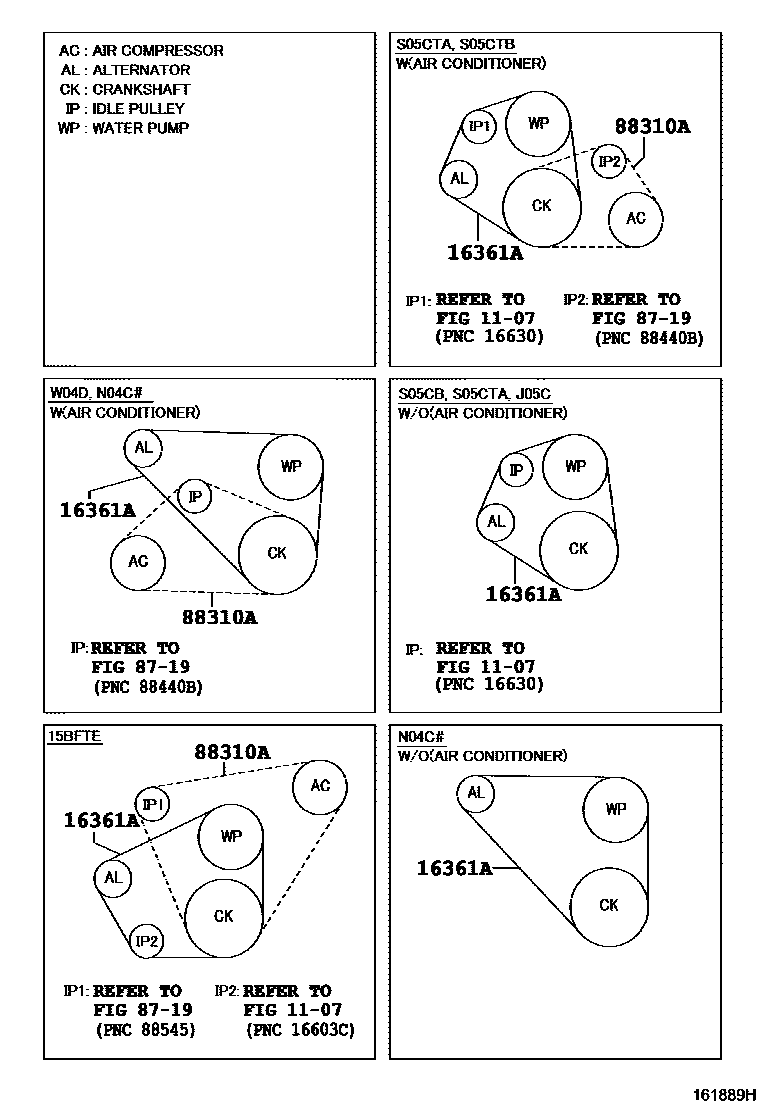

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

16361ABELT, V(FOR FAN & ALTERNATOR)

main90038-32010i200212-200610

main90038-32013i200503-200607

main90038-32014i200607-200610

main90038-39003i200110-200501

main90038-39004i200212-200610

ALTERNATOR 24V 50A

main90038-39008i200608-200708

main90038-39013i200501-200610

main90916-02131i200212-200503

main90916-02497i200411-200701

mainSZ91049331i201108

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main88458-37010i200110-200406

L=984

main90038-32011i200610-201208

L=1010

main90916-02594i200405-200610

L=975

main99332-11495i200411-200701

L=1495

4 parts on this diagram · 1 diagram in section

V-BELT for Toyota DYNA

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota DYNA. Key components include: MOUNTING, BELT, V(FOR FAN & ALTERNATOR), HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
