Toyota DYNA — V-BELT

1107MOUNTING

→ Go to FIG 11-07

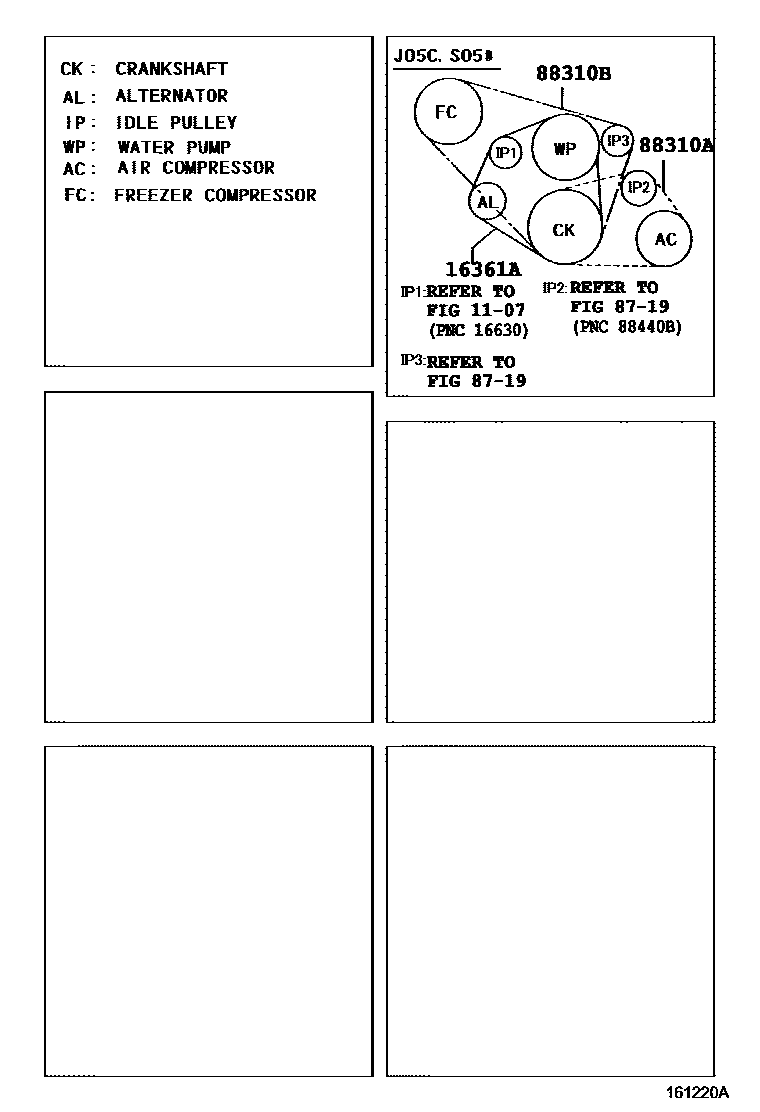

16361ABELT, V(FOR FAN & ALTERNATOR)

main90038-39003i200010-200206

main90038-39004i200010-200206

W(24V-85A ALTERNATOR)

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main88458-37010i200010-200206

L=984

88310BBELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.2

main99343-61470i200010-200206

L=1470

main99343-61495i200010-200206

L=1495

main99343-61520i200010-200206

L=1520

5 parts on this diagram · 1 diagram in section

V-BELT for Toyota DYNA

This section contains 5 genuine Toyota parts for the V-BELT system of the Toyota DYNA. Key components include: MOUNTING, BELT, V(FOR FAN & ALTERNATOR), HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.2.
