Toyota DYNA — V-BELT

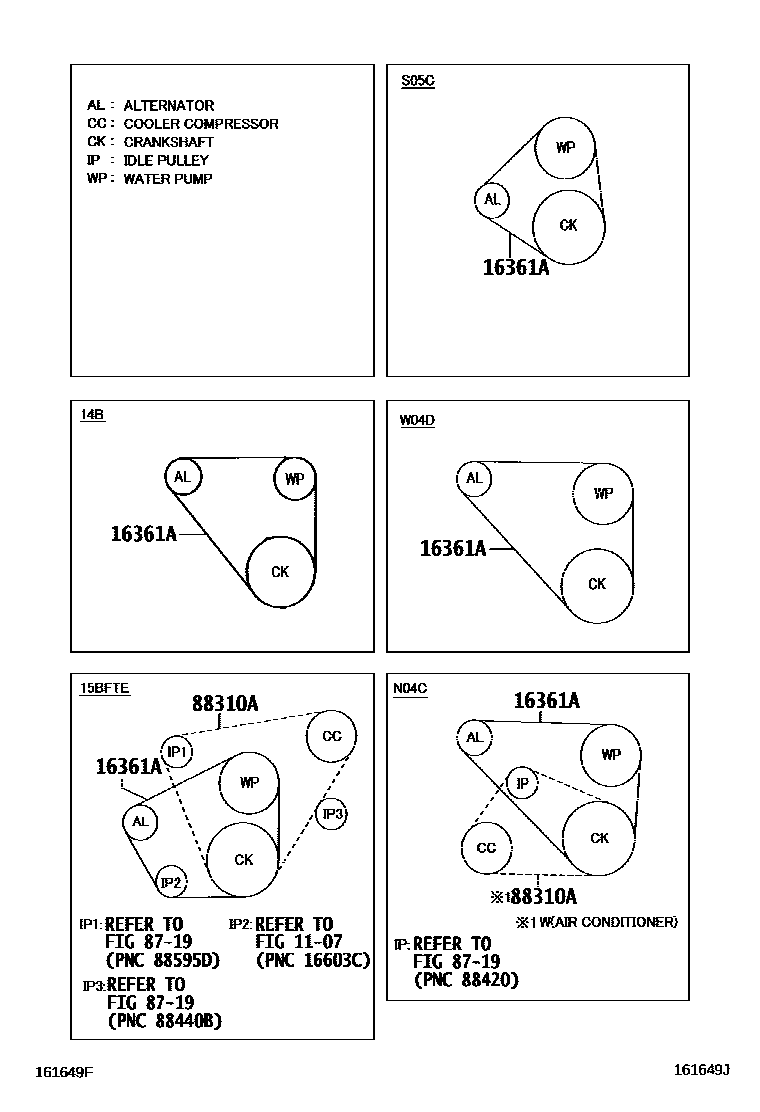

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

16361ABELT, V(FOR FAN & ALTERNATOR)

main90038-32010i200209-200612

main90038-32013i200503-200607

main90038-32014i200610-200812

main90038-32016i200912

main90038-39008i200610-200901

main90916-02131i200209-200503

main90916-02239i200212-200610

main90916-02497i200212-200610

main90916-02773i202203

main99343-01225i200209-200612

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90038-32011i200312-200610

L=1010

main99332-11495i200212-200312

L=1495

4 parts on this diagram · 1 diagram in section

V-BELT for Toyota DYNA

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota DYNA. Key components include: MOUNTING, BELT, V(FOR FAN & ALTERNATOR), HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
