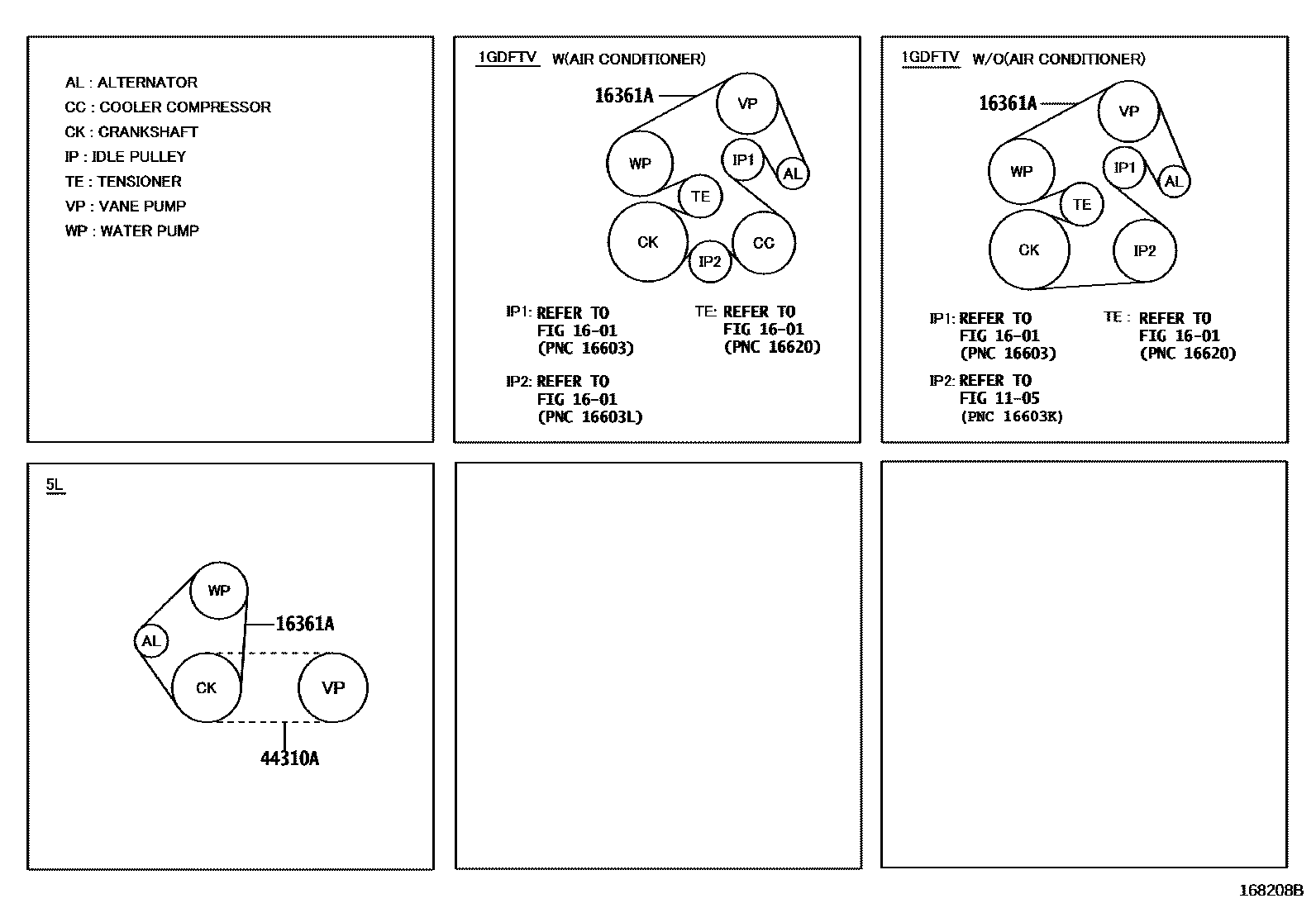

Toyota DYNA — V-BELT

1105CYLINDER BLOCK

→ Go to FIG 11-05

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02211i202202-202503

main99367-K2130supersedes 99367-K2040i202108-202305

44310ABELT, V(FOR VANE PUMP)

main90916-02686i202202-202503

L=880

4 parts on this diagram · 1 diagram in section

V-BELT for Toyota DYNA

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota DYNA. Key components include: CYLINDER BLOCK, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP).
