Toyota DYNA — TOOL BOX & LICENSE PLATE BRACKET

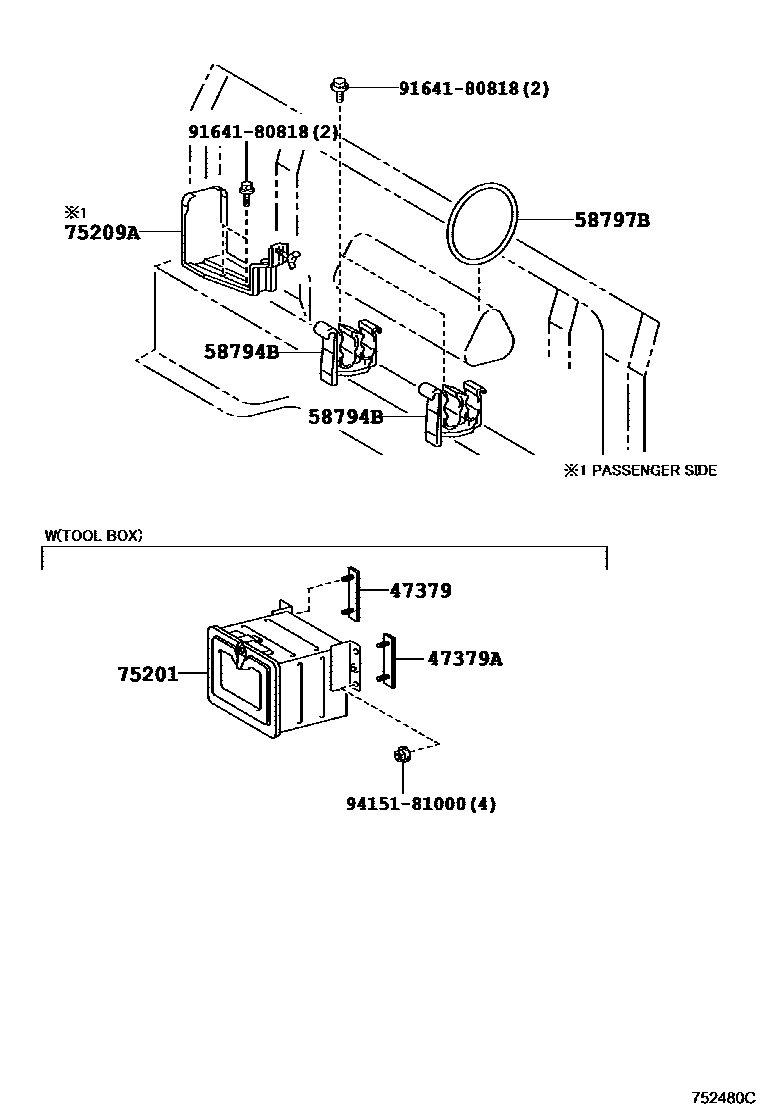

Parts diagram
47379SPACER, BRAKE TUBE, NO.1
main47379-37080i201107-202005
TOOL BOX-WITH(FRONT LH SIDE)
47379ASPACER, BRAKE TUBE, NO.2
main47379-37080i201107-202005
TOOL BOX-WITH(FRONT LH SIDE)
58794BSUPPORT, JACK HANDLE
main58794-37010×2i201107-202005
58797BBAND, JACK CLAMP
main58797-37030i201107-202005
75201BOX SUB-ASSY, TOOL W/STAY
main75210-37220i201911
TOOL BOX-WITH(REAR LH SIDE)
main75210-37230i201107-202005
TOOL BOX-WITH(FRONT LH SIDE)
75209ABASE SUB ASSY, JACK HOLDER
main75209-37011i201107-202005
9164180818
main91641-80818
9415181000
main94151-81000

8 parts on this diagram · 5 diagrams in section

TOOL BOX & LICENSE PLATE BRACKET for Toyota DYNA

This section contains 23 genuine Toyota parts for the TOOL BOX & LICENSE PLATE BRACKET system of the Toyota DYNA. Key components include: SPACER, BRAKE TUBE, NO.1, SPACER, BRAKE TUBE, NO.2, SUPPORT, JACK HANDLE, BAND, JACK CLAMP, STAY SUB-ASSY, LICENSE PLATE BRACKET.
