Toyota DYNA — TOOL BOX & LICENSE PLATE BRACKET

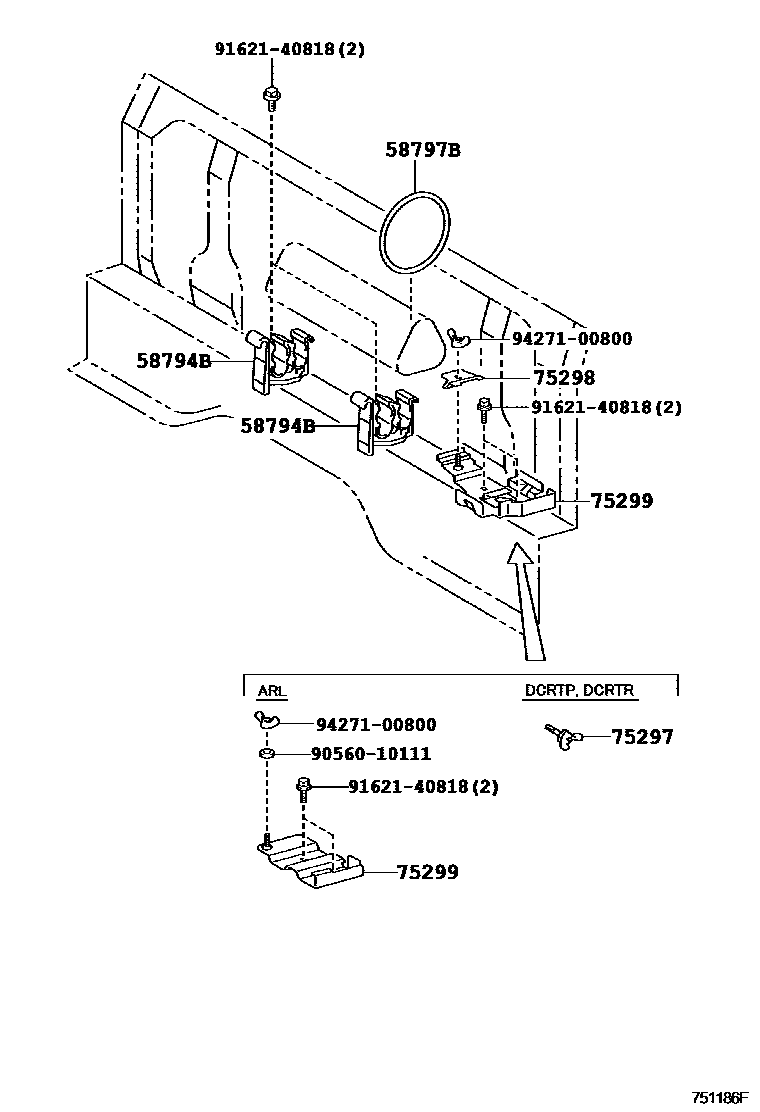

Parts diagram

58794BSUPPORT, JACK HANDLE

main58794-0W010i200209-202310

main58794-37010i200212-201106

58797BBAND, JACK CLAMP

main58797-37020i200209-202310

main58797-37020i200212-200802

PLANT NO. C11

main58797-37030i200212-200610

PLANT NO. P11

main58797-37030i200212-201106

main58797-37030i200406-200802

PLANT NO.P11

75297RETAINER, JACK BASE

main75297-37020i200912-202310

75298PLATE, JACK HOLDER

main75298-0W010i200209-201005

main75298-37020i200212-200406

main75298-37030i200212-200610

main75298-37050i200406-200610

75299BASE, JACK HOLDER

main75209-37010i200610-201008

main75209-37011i201009-201106

main75299-0W010i200209-201005

main75299-37040i200212-200610

main75299-37050i200212-200610

9056010111

main90560-10111

9162140818

main91621-40818

9427100800

main94271-00800

8 parts on this diagram · 6 diagrams in section

TOOL BOX & LICENSE PLATE BRACKET for Toyota DYNA

This section contains 29 genuine Toyota parts for the TOOL BOX & LICENSE PLATE BRACKET system of the Toyota DYNA. Key components include: SPACER, BRAKE TUBE, NO.2, SUPPORT, JACK HANDLE, BAND, JACK CLAMP, HANGER ASSY, LICENSE PLATE BRACKET, BRACKET SUB-ASSY, REAR LICENSE PLATE.
